CNC Stainless Steel Bending Machine for Advertising Signs Tianjin Ejon W40 400mm Width

Large Image : CNC Stainless Steel Bending Machine for Advertising Signs Tianjin Ejon W40 400mm Width

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce, SGS

Payment & Shipping Terms:

Price:	$13,500.00/sets 1-4 sets
Packaging Details:	The export wooden box
Supply Ability:	2000 Set/Sets per Year

Contact Now

CNC Stainless Steel Bending Machine for Advertising Signs Tianjin Ejon W40 400mm Width

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Stainless Steel,Galvanized Sheet,Aluminum Plate	Automation:	Automatic
Year:	2021	Warranty:	1 Year
Weight (KG):	750	Key Selling Points:	High Productivity
Applicable Industries:	Retail, Manufacturing Plant, Advertising Company, Construction Works	Showroom Location:	Turkey, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support	Extra Services:	Slotting & Notching
Power:	CNC	Machine Type:	Roller-Bending Machine
Raw Material:	Sheet / Plate Rolling	Product Name:	Channel Letter Bender Machine
Bending Thickness:	1.8mm Max Stainless Steel	Max. Processed Width:	400mm Width
After Warranty Service:	Video Technical Support, No Service, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	Turkey, Viet Nam, Brazil, Russia, Spain, Thailand, Malaysia
Port:	China Port

Product Description

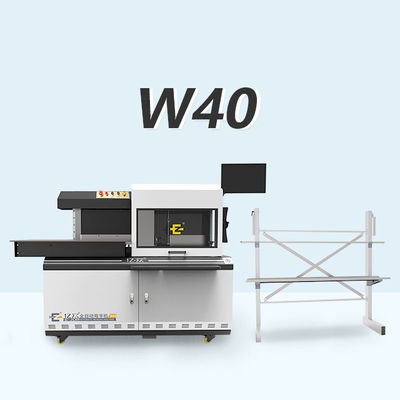

400MM stainless steel channel letter bending machine -Ejon w40

China Ejon W40 ball screw stainless steel strip CNC automatic channel letter bending machine advertising signs making machine aluminum strip bending machine

W40 Using cnc turning tool as slotting tool, the strength is high and the loss is low,each knife has 8 angles, no need to sharpen a knife only to change angles,the process is low noise and no dust. By adopting the progressive clamping and feeding design, the waste of materials is effectively avoided, and the cost is saved fundamentally. Through the material fixture, the high quality ball screw and the linear guide, the perfect combination of the high-power servo drive,the pre leveling system of the compound material eliminates the phenomenon that the traditional rolling stock is easily slipped during the feeding process, and avoids the deformation of the sheet in the feeding process. Easy to operate the software,no need to change the node when processing graph,enhance the working efficiency.it is the first choice of the wide edge letters and squre letters.

SPECIFICATIONS
Feeding system	Double ball-screw progressive feeding system
Slotting System	alloy plane cutter slotting system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized plate, Aluminum plate,iron plate
Material Height	20-400mm
Material Thickness	0.4-1.8mm
Accuracy	±0.1mm
Min. Bending Angle	R15
File Format	Dxf.Plt.Ai
Power	AC220V、50Hz、3.0Kw
Total Weight	750kg
Control System	4 axis control system(4 axis servo control)

Main Features

1)The alternated material feeding ensures the feeding precision and more material saving.

2)The 1500W servo motor ensures the bending force and more stable.

3) 3-axis imported servo driver make it faster, more stable and more precise.

Detailed Images

Machine Parts

The alternated material feeding ensures the feeding precision and more material saving.

Main Features

The 1500W servo motor ensures the bending force and more stable.

Machine Parts

3-axis imported servo driver make it faster, more stable and more precise.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

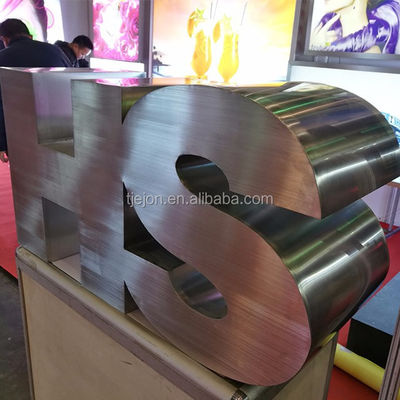

Exhibition show

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

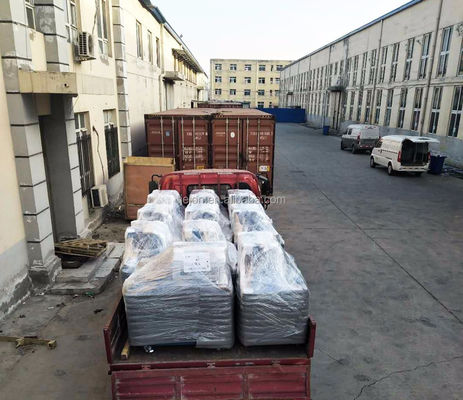

Packing & Delivery

Packaging
Size	1880(L) * 780 (W) * 1850(D)
Weight	750KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
