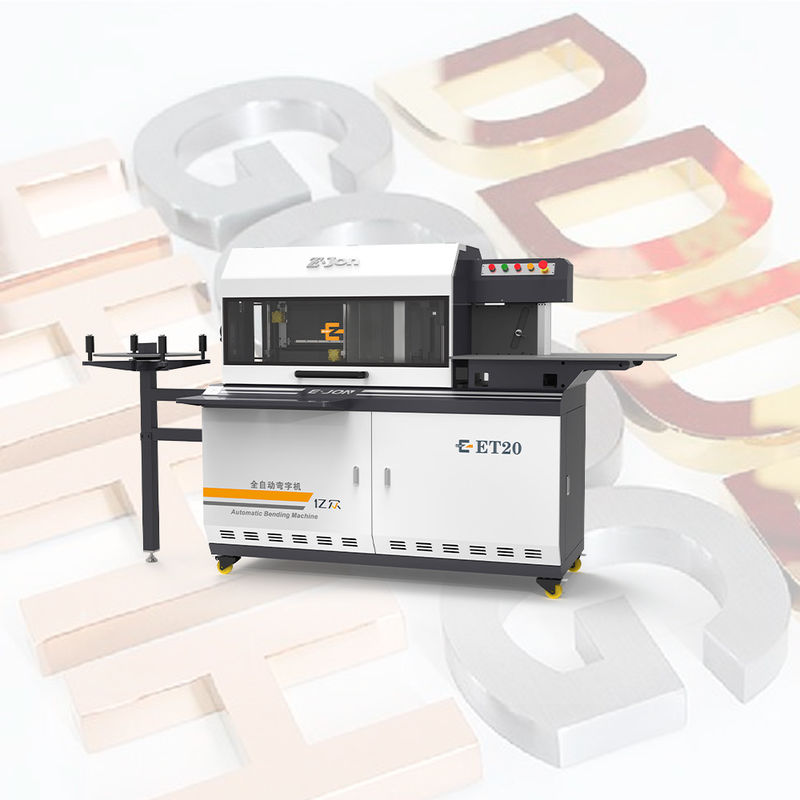

ET20 Multifunction Sign Bending Machine Bending Function For Flat Aluminum Coil

Large Image : ET20 Multifunction Sign Bending Machine Bending Function For Flat Aluminum Coil

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	ET20

Payment & Shipping Terms:

Price:	$11,900.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	5000 Set/Sets per Year

Contact Now

ET20 Multifunction Sign Bending Machine Bending Function For Flat Aluminum Coil

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Sale Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Motor, Servo System, Bending Tool
Material / Metal Processed:	Aluminum, Stainless Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	700
Key Selling Points:	Multifunctional	Applicable Industries:	Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Saudi Arabia, India, Russia, Spain, Thailand, South Korea, Sri Lanka, Ukraine, Malaysia, Arabia	Function:	Bending
Material Thickness:	0.4-1.2mm	Bending System:	Double Blade Alternate Bending System
Available Material:	Flat Aluminum Coil	Material:	Stainess Steel
Material Width:	20-200mm	Slotting System:	Milling Wheel Cutter
Control System:	7 Axis Control System	File Format:	Dxf.PIt.Ai
Slotting:	Sides Slotting

Product Overview

EJON ET20 Advertising Luminous Sign Shop 3D Logo Making

Channel Letter Bending Machine

ماكينة الانحناء للحروف,бортогибочный станок для букв,dobladora de letras de canal

Mechanical hands circulating clamping feeding structure adopts structural casting to improve the feeding holding and avoid scratching the material. Using cylinder to control the feeding supporting, effectively eliminate the phenomenon of warping in the feeding process, to ensure feeding smoothly. Double ball screw with nylon gear transmission, accurate positioning, greatly improve the feeding speed and stability of the machine.

Adopts double cutter independent slotting structure, easily deal with various materials, imported linear guide rail with ball screw, combined with high-power servo motor, to ensure the stability and consistency of slotting. The slotting tool adopts imported high-strength alloy plane cutter, each cutter has 8 edge angles, no need to sharpen the cutter only change different angles, prolong the service life and greatly improve the processing efficiency.

Double bending tools alternating bending structure, Adopting the bending structure cast by ductile iron, characterized by good vibration absorption and high structural strength, which reduces the number of parts splice. Configuration with high-power servo motor ensures the high-speed bending work, bending mechanism permanent deformation, effectively improve the positioning accuracy and high-speed bending stability.

Powerful and Functional Experience

Simple and Elegant Appearance

Precise and Durable Characteristic

1. Easily deal with various materials, like stainless steel, galvanized plate, aluminum plate and profile, etc,.

2. Easily produce different kinds of letters, like Seiko letter, Resin letter, Edged Aluminum letter, Brimless letter, etc,.

3. Easily mastered and manipulated, for a novice, 0.5 day to learn and use, 1 day to operate independently, and 3 days to master.

4. Easily save manpower and time cost.

5. Easily boost the production and perfect the letters' appearance.

PRODUCT SPECIFICATIONS

No	Item	Parameter
1	Slotting method	Plane cutter/Milling cutter
2	Bending method	Double-bends alternate bending
3	Package size	14107801600mm
4	Working space	240011001500mm
5	Suitable material	Stainless steel galvanized sheet aluminum plate and profile
6	Slotting trip	20-200mm
7	Material thickness	0.4-1.2mm
8	Min bending angle	R6
9	Control system	7 axis control system (3 servo axis control)
10	File formate	Dxf.Plt.Ai
11	Power	AC220.50Hz.2.0KW
12	Weight	700KG

PRODUCT CONFIGURATION

High-Power Servo Motor

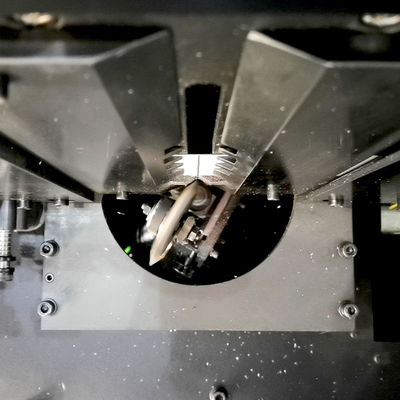

Double Cutter Independent Slotting

Ductile Iron Casting Structure

Company Profile

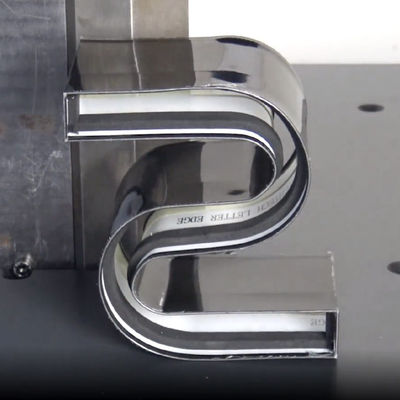

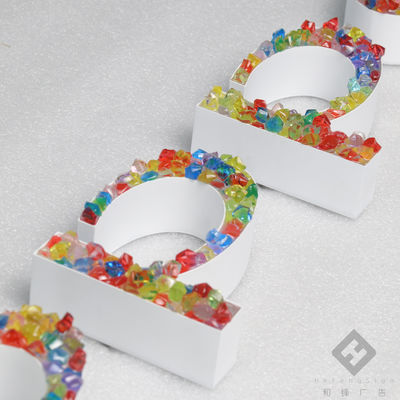

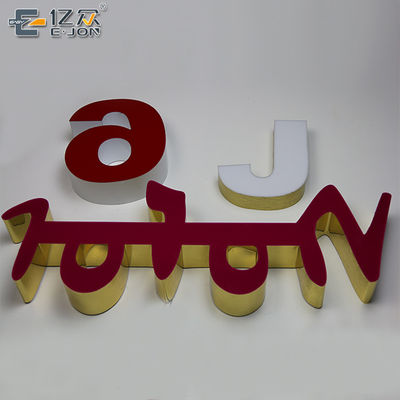

Sample Letters Show

Customer Feedback

Exhibition

FAQ

How to learn machine operate
1. Operation Manual U disk
Provide U disk with machine which have detail specific English operational manual and videos.

2. Network Service
Through Wechat, Whatsapp, Skype, E-mail, Team viewer provide online service.

3. Factory Visiting
Welcome customer to visit our factory to learn how to operate the machine.

Our service

1. Whole machine with one year warranty.

2. Free training course at our plant or on line. Firstly we'll take more teaching video for you, if you need, we can provide our technicians for on-site training and on-site teaching. And if you have time, welcome to visit our company, you can operate and learn the machine by yourself.

3. After the warranty period, we will provide the consumable parts at an agency price when you need replacement.

4. Before machine delivery, we will install all parts and test machine for you.

5. After machine shipped, I'll prepare some documents, like B/L, Packing list, Commercial invoice, Sales contract, CE Certification for helping you pick up your machine.

CLICK HERE TO CHAT WITH ME NOW!

Do you also sell other advertising equipment?

Yes, we also sell fiber laser welding machine, laser cutting machine, automatic deburring machine, letter trimming and grinding machine, automatic slotting machine, etc., you can view our store to find more:

https://tjejon.en.alibaba.com/
