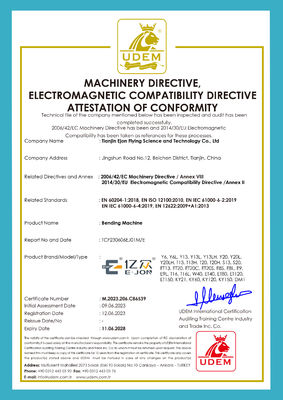

Certification

I'm Online Chat Now

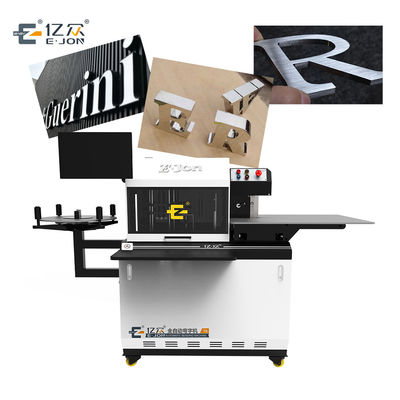

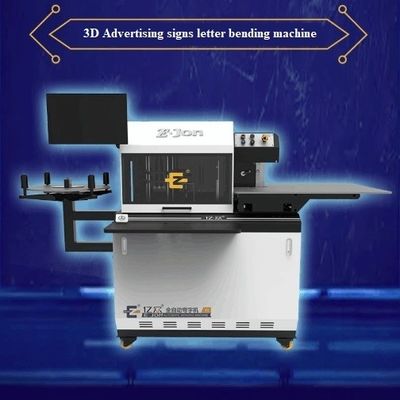

Ejon Y6 Small CNC Aluminum Letter Bending Machine for 10-120mm Metal Letter Edge

Large Image : Ejon Y6 Small CNC Aluminum Letter Bending Machine for 10-120mm Metal Letter Edge

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$5,800.00/sets 1-2 sets

Contact Now

Ejon Y6 Small CNC Aluminum Letter Bending Machine for 10-120mm Metal Letter Edge

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2024
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Stainless Steel,Galvanized Sheet,Aluminum Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	350
Key Selling Points:	Easy To Operate	Applicable Industries:	Printing Shops, Advertising Company
Showroom Location:	Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea	Product Name:	Y6 Channel Letter Bending Machine
Slotting Method:	Plane Cutter	Slotting Trip:	10-130mm
Bending Method:	Double Bends Alternate Bending System	Material Thickness:	0.4-1.2mm
Package Size:	12007201480mm	Min.Bending Angle:	R6
Control System:	4 Axis Control System	Function:	Auto Feeding+bending+slotting
Power:	AC220V//50Hz//2.0KW

Product Description

EJON Y6 Multifunctional Stainless Steel Aluminum Plate

Automatic Acrylic Channel Letter Bending Machine

бортогибочный станок для букв, ماكينة الانحناء للحروف, doblado de letras de publicidad, máquina dobladora de letras de canal

* Rolling continuous feeding system. The air pressure can be adjusted according to the materials thickness to avoid indentation and sliding of material. The detection system of encoder and software combination detects the feeding accuracy in real time and guarantees the accuracy of ±0.1mm.

* High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, greatly improve the working life.

* Double bends alternate bending structure, adopts the bends structure cast by ductile iron, which has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, which effectively improves the positioning accuracy and the stability of high-speed bending. It is a versatile bending machine that truly realizes precise slotting and bending of various materials such as aluminum plate, stainless steel and galvanized plate.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter slotting system
Bending System	Double blades alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	Stainless steel,Galvanized steel,Aluminum plate: 20~120mm
Material Thickness	0.4~1.2 mm
Accuracy	±0.1 mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V, 50Hz, 2.0kW
Air Supply	0.6m³/Min
Control System	4 axis control system (2 axis servo control)

Detailed Images

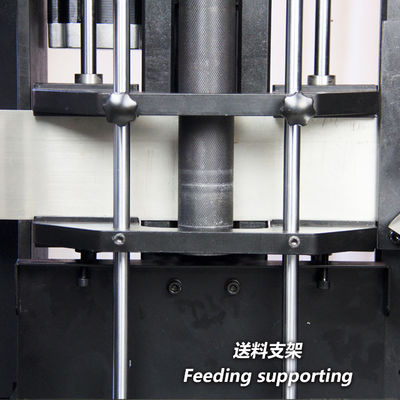

FEEDING SYSTEM

Roller continuous feeding mode

Fast response, Stable feeding

Encoder closed-loop feeding automatic detection system is adopted to ensure feeding accuracy within ±0.1mm.

BENDING SYSTEM

The bender cast by ductile iron has good vibration absorption and high structural strength, which reduces the number of parts splicing. The high-power servo motor is equipped to ensure that the bending mechanism will not be deformed under high-speed bending conditions.

SLOTTING SYSTEM

High strength alloy cutters are used for slotting, each knife has 8 angles, no need to sharpen, greatly improve the working life.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

About us

Tianjin Ejon Flying Science and Technology Co., LTD., was founded in 2017, located in Tianjin, China, is specialized in the production of CNC automation equipment and has independent intellectual property rights and a high-level research and development team. The factory covers an area of more than 2,500 square meters, annual sales is more than 3,000 sets which are exported to hundreds of countries and regions. The main products including automatic channel letter bending machine, automatic grooving machine, automatic grinding machine, automatic deburring machine, laser welding machine, laser cutting machine, etc., are economic, durable and popular with dealers, distributors and the users.

We are willing to be your best partner for win-win cooperation!

CLICK HERE TO VISIT OUR STORE

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install and use the machine.

* Engineers available to service machinery overseas.

CLICK HERE TO CHAT WITH US NOW!

Packing & Delivery

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customers' special request.
