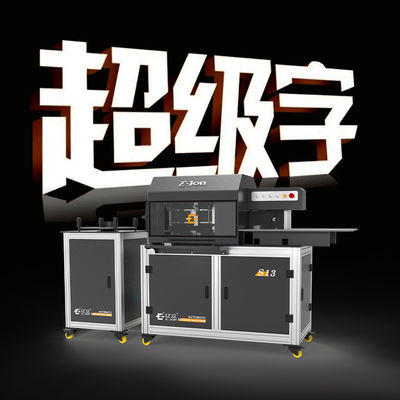

3D Metal Letter Bending Machine S13 With Double Blade Alternate Bending System

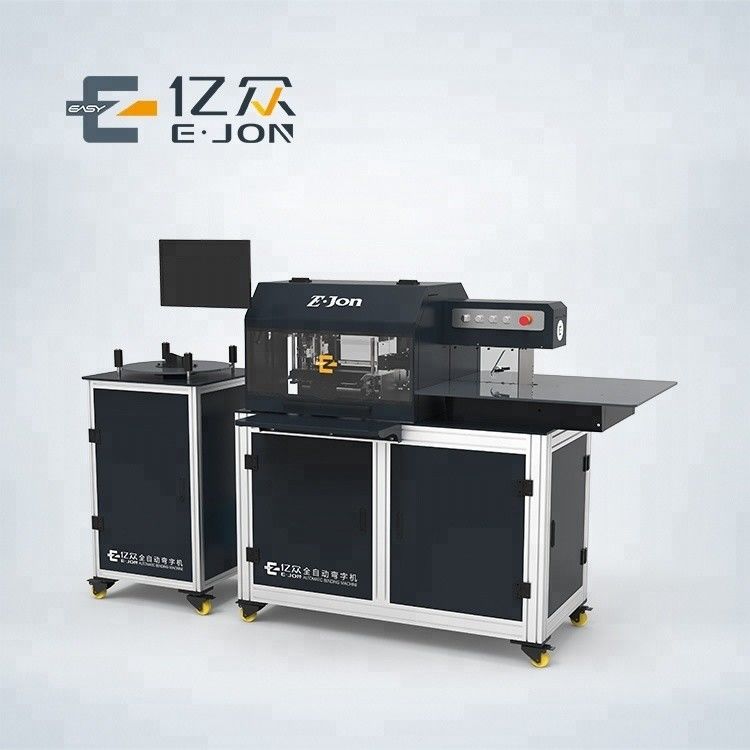

Large Image : 3D Metal Letter Bending Machine S13 With Double Blade Alternate Bending System

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$12,100.00/sets 1-2 sets
Packaging Details:	fumigated wooden box
Supply Ability:	5000 Set/Sets per Year

Contact Now

3D Metal Letter Bending Machine S13 With Double Blade Alternate Bending System

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Brass / Copper, Stainless Steel, Carbon Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	500
Key Selling Points:	High-accuracy	Applicable Industries:	Printing Shops, Advertising Company
Showroom Location:	Egypt, Turkey, Viet Nam, Brazil, Saudi Arabia, Pakistan, India, Russia, Spain, Thailand, South Korea, UAE, Malaysia	Product Name:	CNC Channel Letter Bending Machine
Machine Type:	Cnc Bending Machine	Application:	Making 3D Sign Channel Letters
Available Material:	Flat Aluminum, Stainless Steel, Resin	Control System:	4 Servo Axis Control System
Bending System:	Double Blade Alternate Bending System	Slotting System:	Plane Cutter/Milling Cutter
Operation Principle:	High Precision Automatic Feeding	Bending Thickness:	Galvanized Sheet 0.4-1.2mm
Bend Radius:	6mm

Product Overview

Ejon S13 3d channel sign machine outdoor stainless steel sign backlit led machine

sign channel letter equipment

бортогибочный станок для букв,ماكينة الانحناء للحروف,dobladora de letras de canal,dobladora de letras 3d

Ejon S13 Multifunctional Automatic Channel Letter Bending Machine is widely used in advertising company for metal signs manufacturing, including seiko letters, resin letters, narrow edge letters, rimless letters, luminous letters, etc. and is very popular in Middle East, America and Russia, etc. The using of full servo motor ensures the accuracy and stability of feeding, slotting, heightening and bending. Small radian bender can be customized, the minimum angle can reach to R3. It is the first choice for high-end LED characters, aluminum profile letters, stainless steel letters, punched letters, resin letters and other sign letters.

Main characteristic of hardware

1. Double ball screw matched with nylon gear transmission.

2. Slotting mechanism with air blowing and cooling function.

3. Feeding support controlled by air cylinder.

4. High strength alloy planer controlled by high power servo.

5. Ductile cast iron double blades bending structure.

6. Steel coupling plus specially treated bender.

7. Extra long bending span(20 cm longer than before).

Main characteristic of software

1. Various processing methods can be switched at will for different materials and fonts. 2. The injection amount can be accurately calculated according to the injection process. 3. The software integrates material data of the plates to ensure the bending degree. 4. The software automatically optimizes nodes, without the need for customers to manually delete nodes. 5. One click to switch the use of different cutters for different materials.

6. Plate data is automatically saved without multiple adjustments. 7. Continuous processing mode can be selected for batch processing, which is convenient and fast. 8. For angles smaller than R6, the thinning function can be selected to meet the requirements of various fonts. 9. Default sharp angle slotting function ensures the matching degree of slotting angle.

FEATURES AT A GLANCE

As a production equipment specializing in the processing of stainless steel seiko characters on the market, S13 can accurately fold out the edge, and realize the high-precision embedding of the letter face and the bottom plate, which greatly improves the appearance and three-dimensional sense of the luminous characters.

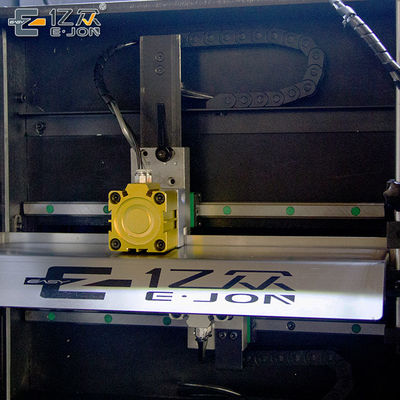

Cast clamps can avoid scratching the material, meanwhile improving the feeding holding.

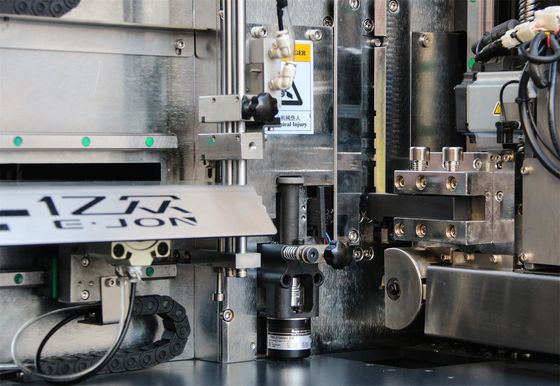

The encoder monitors the numerical change of the feeding length in real time, compensates the unqualified data, and ensures the feeding accuracy.

Equipped with 4-axis high-power 750W full servo control system to ensure the accuracy and stability of feeding, slotting, heightening and bending.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	AC220V, 50Hz, 2.0 kW
2	Material thickness	0.4~1.2 mm
3	Slotting trip	Planer cutter: 10~130 mm; Milling cutter: 20~100 mm
4	Applicable material	Metal sheet: stainless steel, galvanized plate, aluminum plate, iron Aluminum profile
5	Control system	4 axis servo control system
6	Slotting method	Plane cutter/Milling cutter
7	Package size	1410 mm * 750 mm * 1560 mm; 660 mm 660 mm 1110 mm
8	File format	Dxf.Plt.Ai
9	Machine weight	500 kg
