EJON ET20 ALL IN ONE Volumetric Letter Bender with Auto Feeding and Bending Function

Large Image : EJON ET20 ALL IN ONE Volumetric Letter Bender with Auto Feeding and Bending Function

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	$12,000.00/sets >=5 sets

Contact Now

EJON ET20 ALL IN ONE Volumetric Letter Bender with Auto Feeding and Bending Function

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2024
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Aluminum Profile, Galvanized Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	800
Key Selling Points:	Multifunctional	Applicable Industries:	Printing Shops, Advertising Company
Showroom Location:	Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea, UAE	Product Name:	Channel Letter Bending Machine
Function:	Auto Feeding+bending+slotting+notching	CNC Or Not:	CNC Letter Auto Bending Machine
Operation Principle:	High Precision Automatic Feeding	Control System:	7 Axis Control System (3 Servo Axis Control)
Applicable Material:	Stainless Steel, Galvanized Plate, Aluminum Plate, Aluminum Profile	Bending System:	Double Blade Alternate Bending System
Bending Thickness:	0.4~1.2mm	Slotting System:	Plane Cutter/milling Wheel Cutter
Extra Services:	Technical Support Online, Video

Product Description

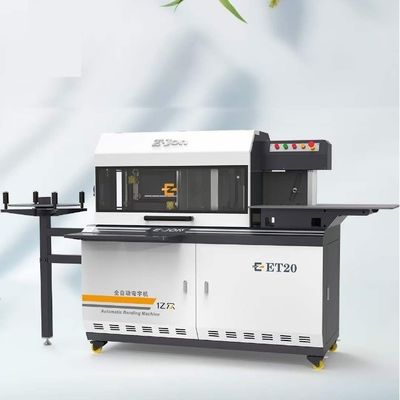

EJON ET20 Versatile Sign Board Led Lettering Machine
Dobladora de Letras Multifuncional

ET20 channel letter bender machine is the high end multi-functional metal sign bending machine of Ejon. Besides the conventional functions of auto feeding, slotting, bending used on metal plate, ET20 can also easily process all kinds of aluminum profile because of its double cutter independent slotting structure.

With only one machine, you can make all kinds of metal letter signs, such as Seiko letters, Rimless letters, Edged Aluminum letters, Resin letters, etc.

Now it is widely used in advertising equipment industry for 3D letters making, outdoor neon signs making and shop signs logos producing.

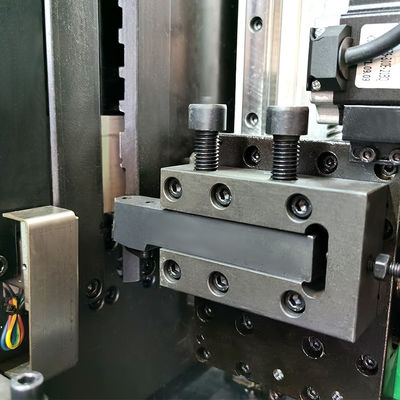

FEEDING SYSTEM

1. The material clamps are casted which can avoid scratching the material, meanwhile improving the feeding holding. Using air pressure to press the material, avoid material uneven and ensure the smooth feeding.

2. The double ball screw is matched with nylon gear transmission for precise positioning, which greatly improves the feeding speed and stability of the machine.

SLOTTING SYSTEM

1. Adopts double cutter independent slotting structure, plane cutter for metal plate slotting and milling cutter for aluminum profile slotting, easily deal with various materials, imported linear guide rail with ball screw, combined with high-power servo motor, to ensure the stability and consistency of slotting.

2. The slotting tool adopts imported high-strength alloy plane cutter, each cutter has 8 edge angles, no need to sharpen the cutter only change different angles , prolong the service life and greatly improve the processing efficiency.

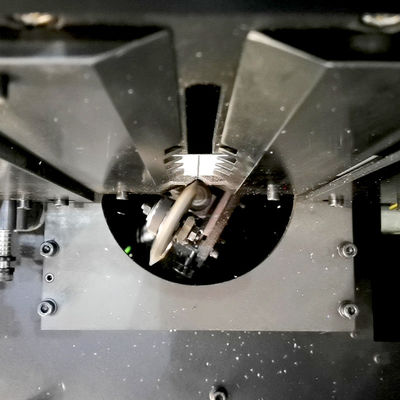

PLANE CUTTER SLOTTING

MILLING WHEEL CUTTER SLOTTING

BENDING SYSTEM

Double bending tools alternating bending structure:

1. Casted by ductile iron, with good vibration absorption, high structural strength, which reduces the number of parts splice.

2. Configuration of high-power servo motor, ensures the high-speed bending work, bending mechanism does not deform easily, effectively improves the positioning accuracy and high-speed bending stability.

Specification

ITEM	VALUE
Working Space	2400mm1100mm1500mm
Weight (KG)	700
Power	AC220V、50Hz、2.0kW
File Format	Dxf.Plt.Ai
Function	Auto Feeding+bending+slotting+notching
Feeding System	Mechanical hands circulating clamping feeding
Accuracy	±0.1mm
Control System	7 axis control system (3 servo axis control)
Bending System	Double Blades Alternate Bending System
Suitable Material	Stainless steel, galvanized plate, Aluminum plate
Bending Thickness	0.4~1.2 mm
Min. Bending Angle	R6
Slotting System	Plane cutter/milling wheel cutter
Slotting Trip	20~200mm

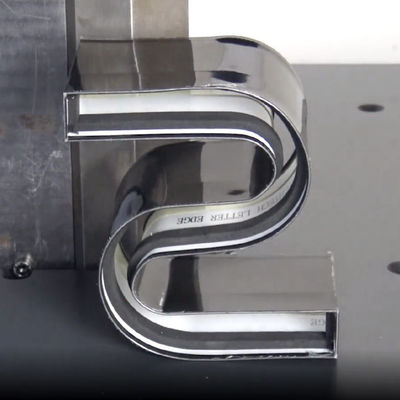

Finished Letters

Seiko letters

Resin letters

Edged aluminum letters

Rimless letters

Side punching luminous letters

Punching letters

Company Profile

Click here to visit our store!

Packing & Delivery

Item	Value

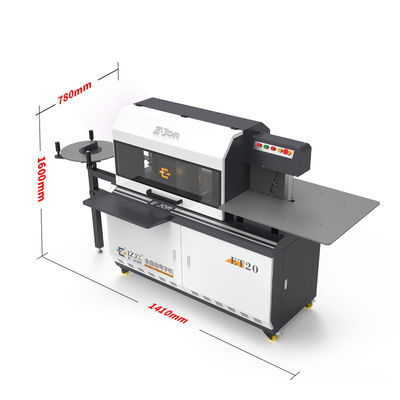

Package Size	1410mm780mm1600mm
Packing material	fumigated wooden case, PE film or according to customer's special request
Weight	750kg
Port	Tianjin port
Lead Time	1 Set: 7 days 2 Sets: 15 days >2: To be negotiated
Freight way	shipping, Land transportation

Exhibition

FAQ

1. Why Choose Us?

* Profesional Manufacturing

1. National patent technique of independent intelligent property right

2. More than 10 years of manufacturing experience in this industry

3. About 2500 m² factory to guarantee the production, storage and supplying

* Easy to Operate

You’ll spend only a few minutes learning how to use the machine through the simple operation interface and our video

* Quality Services
1. You can get highly customized product according to your demand because of our self-developed software, which can greatly shorten the reconfiguration time and improve the work efficiency.
2. Pre-sale service: Inquiry and consulting support; Sample testing support; View our Factory.
3. After-sale service: Install and and use Training online or by telephone always at your service, no need to worry about any problem of the machine

2. How can we guarantee the quality?

IQC (Incoming Inspection) → IPQC (InPut Process Quality Control) → OQC (Outgoing Quality Control) → QA ( Finished product Quality Assurance) layer upon layer to ensure the quality and commitment to customer service 3. Do you have any other related machine or spare parts to sell? You can tell us your demand and we'll recommend a suitable one to you.
laser welder

automatic slotting machine
deburring machine
channel letter grinding machine

laser cutting machine
and related spare parts and materials.
You can buy all of these at a lower price especially when you have made a big order or need a long-term supply.

4. How about the after-sale service?

We will respond to your demand within 24 hours via email or the platform's official communication tool, and send relevant
documents or materials remotely, providing technical support online.
In the case of non-man-made damage to the machine, within the scope of free parts agreed by our both part, we will send free parts within 48 hours (except imported parts or customized parts).

To finish the entire work of channel letters making, you may need the machines below, click the photo to learn more!

Channel letter bending machine

To make the letter's sideband

Fiber laser cutting machine

To make the letter's face

Channel letter welding machine

To weld the sideband and letter face together

Letter edge grinding machine

To make the letter edge more smooth and round.

Fiber laser welding machine

To weld aluminum material.

Automatic deburring machine

To remove the burrs, slag, oxidation layer of metal sheet.
