E500 500W CNC Fiber Laser Welding Machine for Fast and Noiseless Advertising Sign Welding

Large Image : E500 500W CNC Fiber Laser Welding Machine for Fast and Noiseless Advertising Sign Welding

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$6,000.00/sets 1-2 sets
Packaging Details:	wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

E500 500W CNC Fiber Laser Welding Machine for Fast and Noiseless Advertising Sign Welding

Description

Condition:	New	Max. Output Power:	500W
Usage:	Advertising Sign Welding	Single Pulse Energy:	180J
Pulse Width:	0.1-20mm	Wavelength:	1064nm
Focal Spot Diameter:	0.2~2.2 Mm	Dimensions:	2300mm1700mm1300mm
Warranty:	1 Year	Laser Source Brand:	EFR
Weight (KG):	350 KG	Key Selling Points:	Low Noise Level
Applicable Industries:	Manufacturing Plant, Machinery Repair Shops, Retail, Advertising Company	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	PLC, Laser Head
Key Word:	Laser Welder With Table	Function:	Metal Parts Laser Welding
Application Material:	Stainless Steel,iron,galvanized Plate	Power Supply:	220V±10%/50Hz/30A
After-sales Service Provided:	Online Support/Field Installation, Commissioning And Training	Advantage:	Beautiful Welding Effect
Laser Power:	500watt	Focus:	120mm
Laser Wavelength:	1064 Nm	Pulse Frequency:	1~60 Hz

Product Description

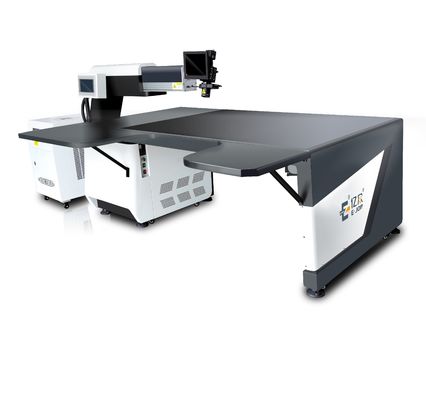

EJON E300/E500 YAG LASER WELDING MACHINE

EJON E300/E500 YAG LASER WELDING MACHINE is specially customized for advertising welding industry. The machine is equipped with ventilation system, YAG handheld laser gun, 5 m optical fiber tube and large format conjoined toughened glass table. By use of focus (120 mm), positioning point, red spot and welding moving parts, the heat affected zone is small and the positioning accuracy is high. Due to its beautiful welding effect and high efficiency, now it is widely used in the welding of advertising metal signs as well as kitchen ware, sheet metal, etc.

Specification

ITEM	SPECIFICATION
Output power	300W/500W
Laser wave length	1064nm
Condenser emitter	Importe ceramic/gold cavity
Cooling	Adaptive constant temperature (water)
Pulse frequency	1-60Hz
Power	220V±10%/50Hz/30A
Worktable size	2200&1700mm
Applicable material	Stainless steel, galvanized sheet, iron sheet, titanium plate

Our Advantages

Large working table

The large format conjoined toughened glass table makes it more convenient to operate workpieces of different size.

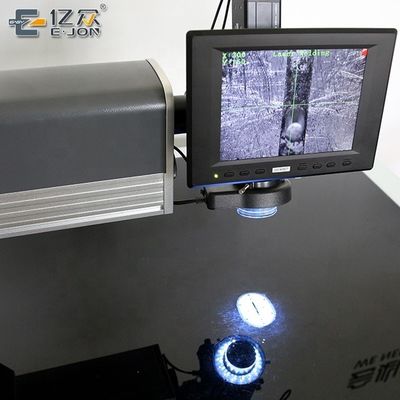

viewing screen

The viewing screen facilitates watching the welding position and welding effect, the worker can adjust the welding angle properly and timely.

High positioning accuracy and eco-friendly

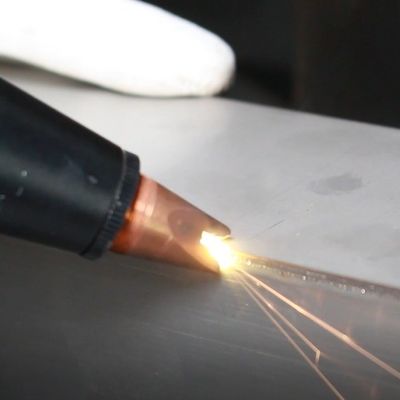

The heat affected zone is small, so that the workpiece surface will not be deformed and with the help of focus (120 mm), positioning point, red spot and welding moving parts, the positioning accuracy is highly assured.

Nearly no noise and pollution.

Better welding effect

Welded solid surface without protuberance, no need to polish, time and effort is saved and beautiful welding appearance is easily gotten.

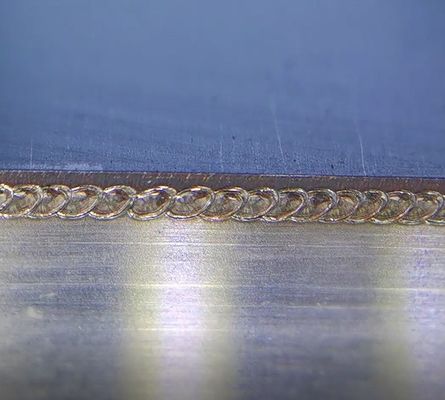

Welding Sample Show

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Wooden box.
