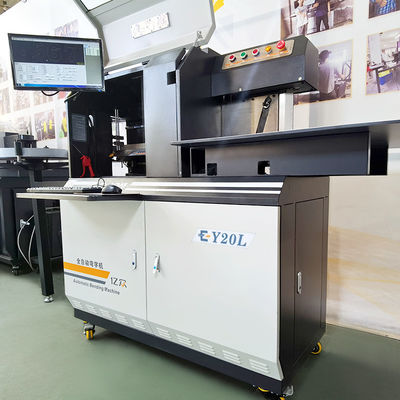

3D Signage Trimcap Channel Letter Bending Machine with Plane Cutter Slotting System

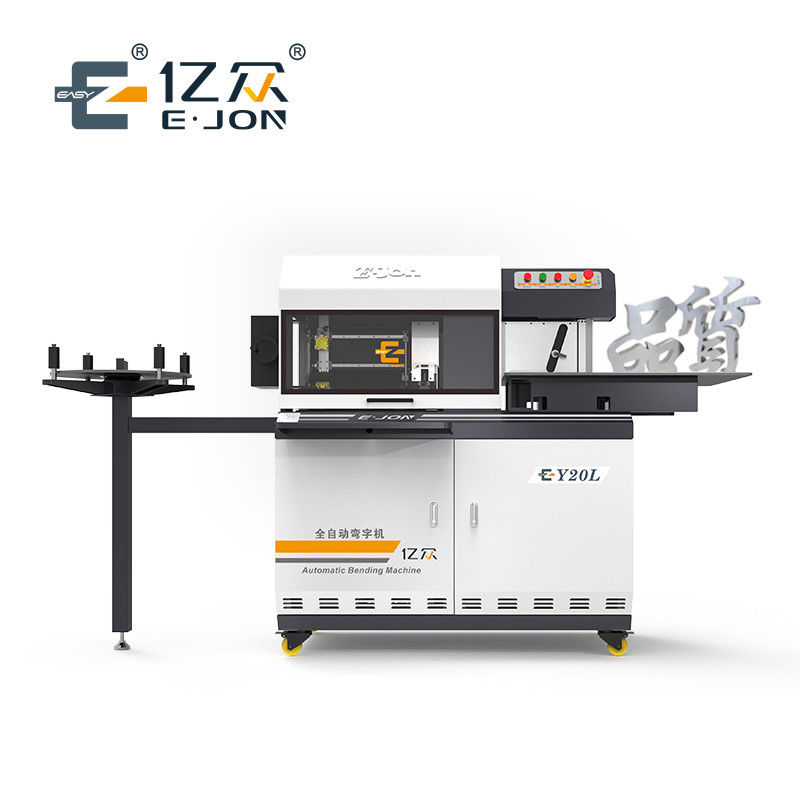

Large Image : 3D Signage Trimcap Channel Letter Bending Machine with Plane Cutter Slotting System

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$7,600.00/sets 1-2 sets
Packaging Details:	wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

3D Signage Trimcap Channel Letter Bending Machine with Plane Cutter Slotting System

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, Stainless Steel, Galvanized Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	400
Key Selling Points:	Easy To Operate	Applicable Industries:	Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Turkey, United States, Italy, France, Viet Nam, Saudi Arabia, Russia, Spain, Thailand, South Korea	Product Name:	Channel Letter Bending Machine
Processing Material:	Stainless Steel, Galvanized Plate, Aluminum Plate	Application:	Advertising Channel Letters Signs
Material Thickness:	0.4~1.2mm	Material Width:	10-200mm
Bending System:	Double Blade Alternate Bending System	Slotting System:	Plane Cutter Slotting System
Control System:	4 Axis Control System (2 Axis Servo Control)	File Format:	Dxf.PIt.Ai
Applied Industry:	Advertising Light Box

Product Description

SPECIFICATIONS
Feeding System	Manipulator alternately feeding system
Slotting System	Plane cutter slotting system
Bending System	Double tools alternate bending system
Suitable Material	Stainless steel, galvanized plate, aluminum plate
Material Height	10~200mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system (2 axis servo control)
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC 220 V, 50 Hz, 2.0 kW
Total Weight	400 kg

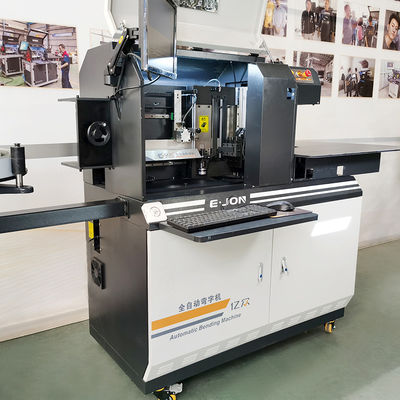

Casted material clamps alternately feed without scratching and warping the material, ensure the smooth feeding.

Double ball screw matched with nylon gear transmission can greatly improve the feeding speed and stability with its precise positioning.

Plane cutter can slot diverse materials such as stainless steel, galvanized plate and aluminum plate. High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, greatly improve the working life.

Ductile iron casted bending structure has good shock absorption and high structural strength, which reduces the number of parts and components.

Air blowing and cooling function extends the service life of the cutter while ensuring smooth slotting.

Punching function facilites the assembly of letter surface to letter border

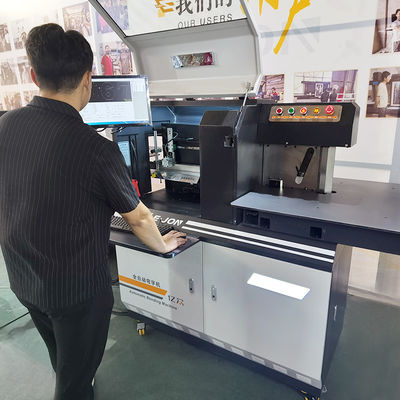

One-click start function helps you startup the computer and insert the U disk directly without opening the control cabinet.

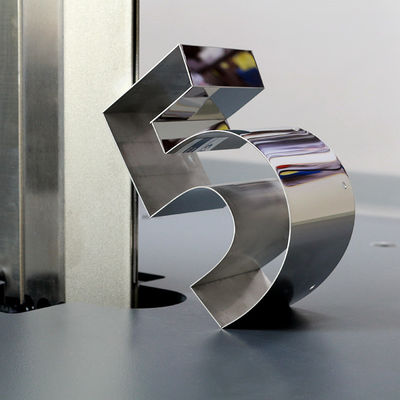

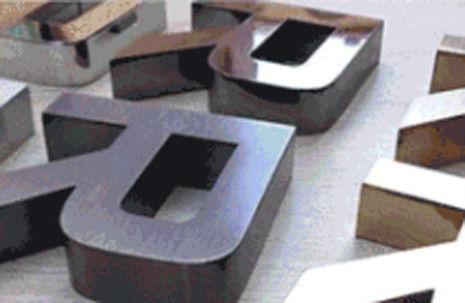

Finished Letters

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	151 * 76 * 170cm
Weight	350 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customer's special request.
