Ejon Y20L Top5 Advertising Equipment Custom Sign Bending Machine for 3D Aluminum Letters

Large Image : Ejon Y20L Top5 Advertising Equipment Custom Sign Bending Machine for 3D Aluminum Letters

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$7,600.00/sets 1-2 sets
Packaging Details:	wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

Ejon Y20L Top5 Advertising Equipment Custom Sign Bending Machine for 3D Aluminum Letters

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, Stainless Steel, Galvanized Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	400
Key Selling Points:	Easy To Operate	Applicable Industries:	Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Turkey, United States, Italy, France, Viet Nam, Saudi Arabia, Russia, Spain, Thailand, South Korea	Product Name:	Channel Letter Bending Machine
Processing Material:	Stainless Steel, Galvanized Plate, Aluminum Plate	Application:	Advertising Channel Letters Signs
Material Thickness:	0.4~1.2mm	Material Width:	10-200mm
Bending System:	Double Blade Alternate Bending System	Slotting System:	Plane Cutter Slotting System
Control System:	4 Axis Control System (2 Axis Servo Control)	File Format:	Dxf.PIt.Ai
Applied Industry:	Advertising Light Box

Product Description

Ejon Y20L Multi-function Automatic Letter Bending Neon 3D Sign Border character Bending Machine

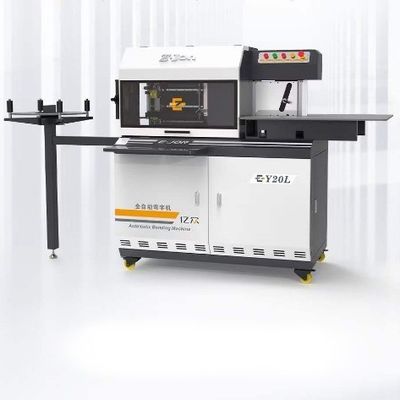

Ejon Y20L CNC Sign Bender is a high end channel letter bending machine which increase the slotting width from 130 mm to 200 mm on the basis of existing bending machine Y13L. The core hardware of the machine adopts the casting structure, which is formed once and has strong stability. It is equipped with computer, air pump, voltage regulator and other related equipment. It is the first choice for making high-end LED characters, stainless steel letters, punch letters, resin letters and other sign letters.

CLICK HERE TO CHAT NOW!

SPECIFICATIONS
Feeding System	Manipulator alternately feeding system
Slotting System	Plane cutter slotting system
Bending System	Double tools alternate bending system
Suitable Material	Stainless steel, galvanized plate, aluminum plate
Material Height	10~200mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system (2 axis servo control)
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC 220 V, 50 Hz, 2.0 kW
Total Weight	400 kg

Casted material clamps alternately feed without scratching and warping the material, ensure the smooth feeding.

Double ball screw matched with nylon gear transmission can greatly improve the feeding speed and stability with its precise positioning.

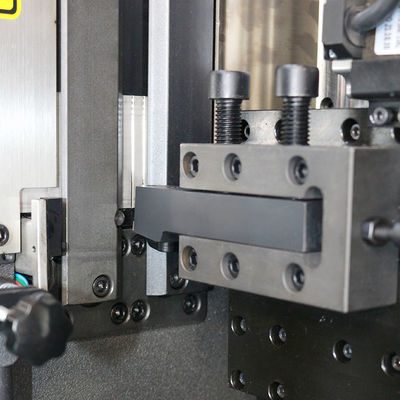

Plane cutter can slot diverse materials such as stainless steel, galvanized plate and aluminum plate. High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, greatly improve the working life.

Ductile iron casted bending structure has good shock absorption and high structural strength, which reduces the number of parts and components.

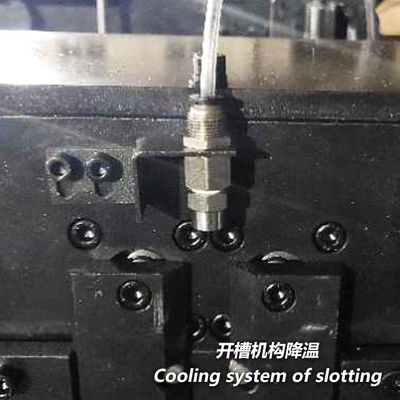

Air blowing and cooling function extends the service life of the cutter while ensuring smooth slotting.

Punching function facilites the assembly of letter surface to letter border

One-click start function helps you startup the computer and insert the U disk directly without opening the control cabinet.

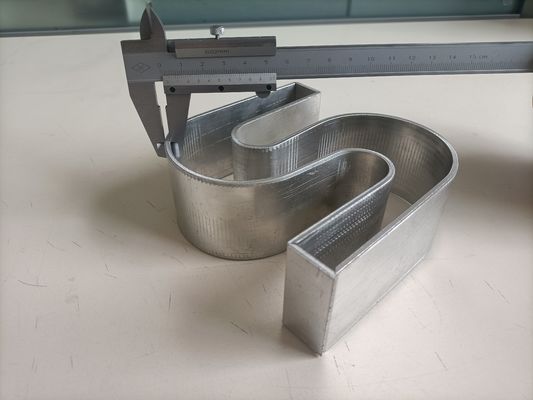

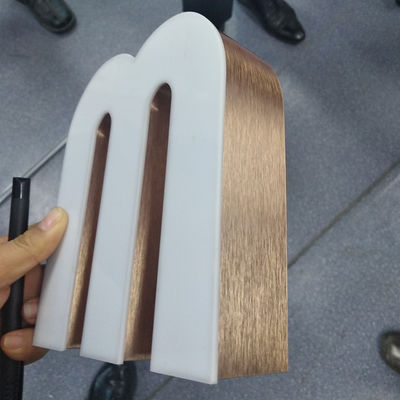

Finished Letters

Rimless letter

Narrow edge letter

Seiko letter

Resin letter

Luminous letter

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine

* Training how to use the machine.

* Engineers available to service machinery overseas.

Our Customers

Chinese Taiwan

Spain

India

USA

Kenya

Ukraine

Packing & Delivery

Packaging
Size	151 * 76 * 170cm
Weight	350 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customer's special request.

About us

Tianjin Ejon Flying Science and Technology Co., Ltd

Tianjin Ejon Flying Science and Technology Co., Ltd was founded in 2017, located in Tianjin, China, is specialized in
the production of CNC automation equipment and has independent intellectual property rights and a high-level research and development team. Since established, we have been committed to innovative, highly efficient and precise signs equipment’s research, development and production, the company quickly developed into a comprehensive high-tech signs equipment production enterprise integrating R&D, Production, Sales and Service. The factory covers an area of more than 2,500 square meters, annual sales is more than 3,000 sets which are exported to hundreds of countries and regions. The main products including automatic channel letter bending machine, automatic grooving machine, automatic grinding
machine, automatic deburring machine, laser welding machine, laser cutting machine, etc., are economic, durable and popular with dealers, distributors and the users.
Improvement of the performance is the guarantee of enterprise development, our professional engineers have rich experience to handle different kinds of technical problems. We own an international sales team with integrity and credibility as its basis and service as its goal, our passionate and patient customer service personnel are ready to solve all kinds of problems for buyers any time. To satisfy customer’s demand, our agents of several countries can provide local service in time. Meanwhile, we also recruit agents all over the world.

We are willing to be your best partner for win-win cooperation!
