Ejon Y20L 3D Letter Edge Machine for Volumetric Letters Auto Feeding Bending Slotting

Large Image : Ejon Y20L 3D Letter Edge Machine for Volumetric Letters Auto Feeding Bending Slotting

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$8,500.00/sets 1-2 sets

Contact Now

Ejon Y20L 3D Letter Edge Machine for Volumetric Letters Auto Feeding Bending Slotting

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2024
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	ALLOY, Stainless Steel, Galvanized Steel, Aluminum Plate,	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	450
Key Selling Points:	Easy To Operate	Applicable Industries:	Printing Shops, Advertising Company, Construction Works
Showroom Location:	Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea, UAE, Kazakhstan, Ukraine, Kyrgyzstan	Product Name:	Y20L Channel Letter Bending Machine
Function:	Auto Feeding+bending+slotting	Voltage:	220V 50Hz 2.0Kw
File Format:	Dxf.Plt.Ai	Package Size:	14107801600mm
Suitable Material:	Stainless Steel, Galvanized Sheet And Aluminum Plate	Material Thickness:	0.4-1.2mm
Min.Bending Angle:	R6	Control System:	4 Axis Control System
Machine Weight:	400Kg

Product Description

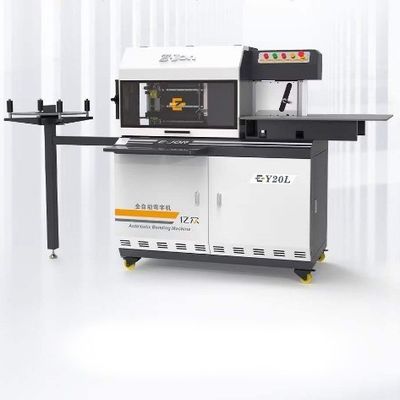

Ejon Y20L Multi-function Automatic Letter Bending Neon 3D Sign Border character Bending Machine

Ejon Y20L CNC Sign Bender is a high end channel letter bending machine which increase the slotting width from 130 mm to 200 mm on the basis of existing bending machine Y13L. The core hardware of the machine adopts the casting structure, which is formed once and has strong stability. It is equipped with computer, air pump, voltage regulator and other related equipment. It is the first choice for making high-end LED characters, stainless steel letters, punch letters, resin letters and other sign letters.

CLICK HERE TO CHAT NOW!

SPECIFICATIONS
Feeding System	Manipulator alternately feeding system
Slotting System	Plane cutter slotting system
Bending System	Double tools alternate bending system
Suitable Material	Stainless steel, galvanized plate, aluminum plate
Material Height	10~200mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system (2 axis servo control)
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC 220 V, 50 Hz, 2.0 kW
Total Weight	400 kg

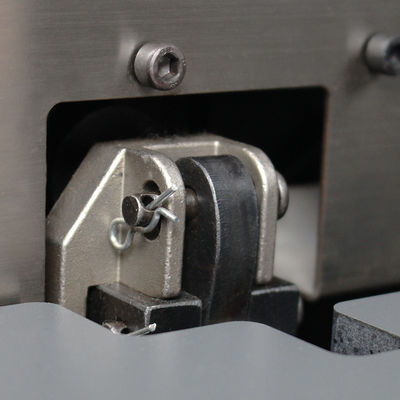

Cast material clamps alternately feed without scratching and warping the material, ensure the smooth feeding.

Double ball screw matched with nylon gear transmission can greatly improve the feeding speed and stability with its precise positioning.

Plane cutter can slot diverse materials such as stainless steel, galvanized plate and aluminum plate. High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, greatly improve the working life.

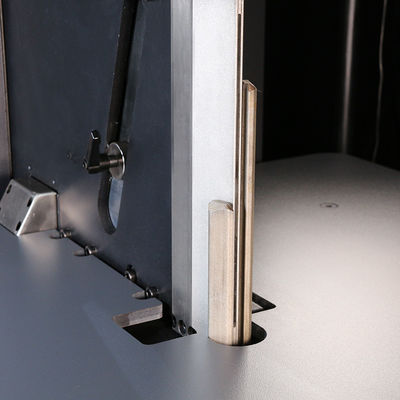

Ductile iron casted bending structure has good shock absorption and high structural strength, which reduces the number of parts and components.

Air blowing and cooling function extends the service life of the cutter while ensuring smooth slotting.

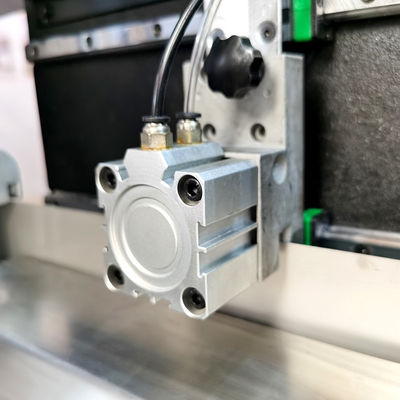

Punching function facilites the assembly of letter surface to letter border

One-click start function helps you startup the computer and insert the U disk directly without opening the control cabinet.

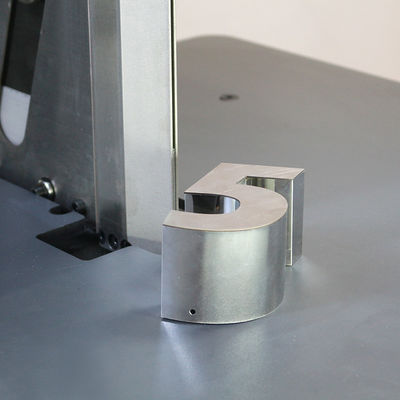

Finished Letters

Rimless letter

Narrow edge letter

Seiko letter

Resin letter

Luminous letter

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine

* Training how to use the machine.

* Engineers available to service machinery overseas.

Our Customers

Chinese Taiwan

Spain

India

USA

Kenya

Ukraine

Packing & Delivery

Packaging
Size	151 * 76 * 170cm
Weight	350 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customer's special request.
