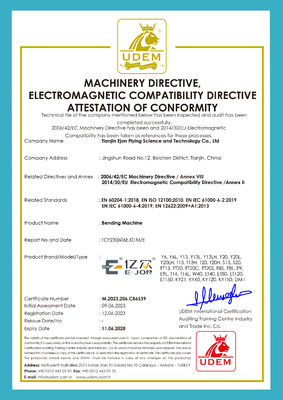

Certification

I'm Online Chat Now

Ejon ET80 40-850mm High Edge Bend Letter Machine Large Letters Making Bending Machine

Large Image : Ejon ET80 40-850mm High Edge Bend Letter Machine Large Letters Making Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$25,000.00/sets 1-2 sets

Contact Now

Ejon ET80 40-850mm High Edge Bend Letter Machine Large Letters Making Bending Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2024
Warranty Of Core Components:	1 Year	Core Components:	Motor, Servo, Bending Tool
Material / Metal Processed:	Aluminum, Stainless Steel, Galvanized Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	3000
Key Selling Points:	Automatic	Applicable Industries:	Manufacturing Plant, Advertising Company, Construction Works , Other
Showroom Location:	Egypt, Canada, Turkey, France, Brazil, Russia, Thailand, South Korea, Ukraine	Product Name:	Wide Edge Heavy Automatic Bending Machine
Suitable Material:	Stainless Steel, Galvanized Steel, Aluminum Plate	Bending Method:	Beating
Slotting Trip:	400-850mm/1250mm/1550mm	Voltage:	AC 220V
Slotting System:	Plane Cutter	File Format:	Dxf.PIt.Ai
Power:	AC220V, 50Hz, 5.0kW	Control System:	4 Axis Control System (4servo Axis Control)
Working Space:	6350mm1860mm2350mm

Product Description

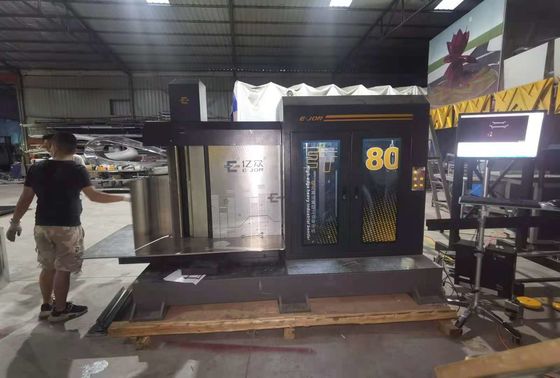

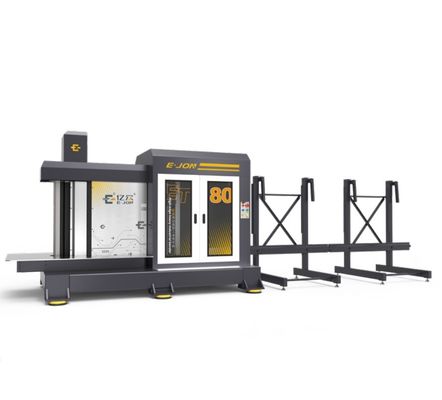

Ejon ET80 Wide Edge Heavy Automatic Bending Machine
Dobradora de letras gigantes en 3d

ET80 is a heavy Channel Letter Bending Machine launched for the need of large neon sign making.

It adopts CNC lathe tool as slotting tool, with high strength and low loss. The knife grain has 4 edges on both sides and no need to sharpening. Equipped with oil mist lubrication cooling function, prolong the life of knife grains. Adopting progressive clamping feeding design with large feeding torque and high precision, thus effectively avoided material waste and fundamentally saved the cost. The perfect combination of material jig, high quality ball screw, linear guide rail and high power servo drive make it easy to work at high load working state. Cooperating with the material pre-straightening system, the feeding slip phenomenon as well as the deformation of metal sheet is eliminated and avoided in the traditional rolling feeding process. Precise mechanical blade systems perform better against thick plates and big wide materials. Software operation is simple, processing graphics without modification of Node, greatly improve the work efficiency.

Product Application

1. ET80 is widely used in the advertising industry for the production of outdoor giant 3D sign channel letters, such as:

Square letter

High side character

Hypotenuse letter

Landscape character

2. The material can be processed are as follows:

Stainless steel

Galvanized steel

Aluminum plate

Material Thickness: 0.4~1.5mm;

Slotting Trip: 400-850mm

3. We also have other big models and accept customization according to the customers' request

Click here to chat with us now!

SPECIFICATIONS
Feeding system	Double ball-screw progressive feeding system
Slotting System	alloy plane cutter slotting system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized plate, Aluminum plate, Iron plate
Slotting Trip	400-850mm
Material Thickness	0.4-1.5mm
Accuracy	±0.1mm
Working Space	6350mm1860mm2350mm
Min. Bending Angle	R15
File Format	Dxf.Plt
Power	AC220V,50Hz,4.0Kw
Total Weight	3000kg
Control System	4 axis control system(4 axis servo control)

Main Features

How to solve the problem of material slipping?

As we know, the heavy material slipping is the main problem in the traditional rolling feeding. Ejon made a perfect combination of material jig, high quality ball screw and linear guide rail to tightly hold the material, meanwhile developed the material pre-straightening system to avoid the deformation of plate. Therefore, the material waste is effectively avoided, and the cost is fundamentally saved.

How to guarantee the feeding accuracy?

The encoder closed loop control system automatically compensates the feeding length to ensure the feeding accuracy within ±0.1 mm.

How to guarantee the smooth and steady feeding?

In case of irregular material height, the pneumatic support automatically adjusts the height to ensure smooth feeding.

Does it convenient to operate such a large machine?

Ejon equipped a computer support with the machine, more ergonomic and convenient to operate and place as you like.

How to guarantee the bending effect?

High power 4 axis servo control system has the characteristics of large torque and high precision, and can easily and efficiently feed and bend thick and high-edge materials, with low noise and no dust in the machining process.

Does the blade need to be changed frequently?

Ejon ET80 adopts CNC lathe tool as slotting blade with high strength and low loss. The blade has 4 edges on both sides and no need to sharpening. Oil mist lubrication cooling function prolongs the life of the blade.

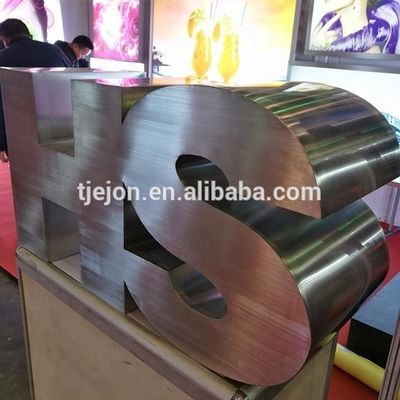

Sample Letters Show

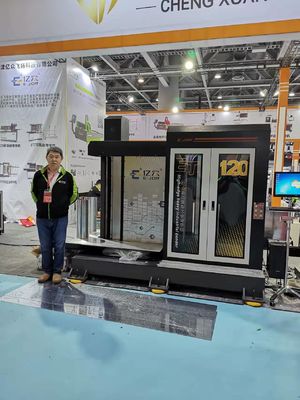

Exhibition show

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kW, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Input file format supports .Dxf.Plt .AI.

We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
