EJON W40 The Top-Notch Automatic Channel Letter Bender for Sign Making Stainless Stee

Large Image : EJON W40 The Top-Notch Automatic Channel Letter Bender for Sign Making Stainless Stee

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$14,000.00/sets 1-4 sets

Contact Now

EJON W40 The Top-Notch Automatic Channel Letter Bender for Sign Making Stainless Stee

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	High Productivity
Warranty Of Core Components:	1 Year	Core Components:	Motor, Servo
Material / Metal Processed:	Aluminium Alloy, Stainless Steel, Galvalized Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	750
Key Selling Points:	4 SERVO Axis Control System	Applicable Industries:	Printing Shops, Retail, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Germany, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Russia, Spain, Thailand, Kenya, South Korea, UAE, Colombia, South Africa, Ukraine, Malaysia, Australia	Product Name:	Steel Led Automatic Channel Bending Machine
Function:	Metal Strip Bending, Sign Making	After-sales Service Provided:	Online ,Video Support
Material Thickness:	0.4~1.8mm	Material Width:	20~400mm
Processing Material:	Stainless Steel, Galvanized Plate	Power:	AC220V,50Hz,4.0Kw
Control System:	4 Axis Control System (4 Servo Axis Control)	Min. Bending Angle:	R15
Package Size:	18807801850mm

Product Overview

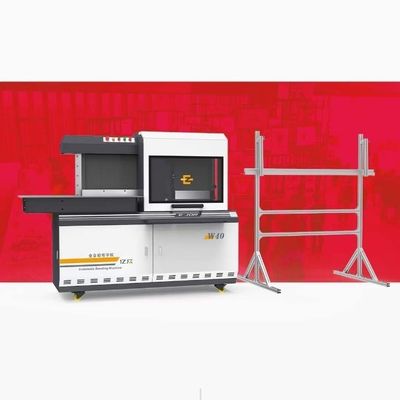

EJON W40 Sign Channel Letter Equipment Channel Letter Bending Machine for 3d Letter
Large Outdoor Advertising Sign Signage Making Machine
ماكينة الانحناء للحروف, бортогибочный станок для букв, máquina de dobladora de letras gigantes en 3d

EJON W40 Wide Edge Heavy Automatic Channle Letter Bending Machine is widely used in making Landscape character, Square letter, High side character, Hypotenuse letter and other letters.

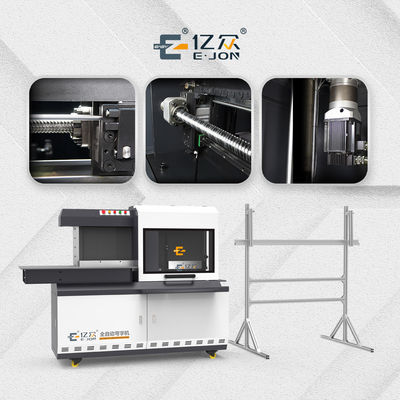

Adopting progressive clamping feeding design with large torque and high precision, the waste of materials is avoided and the cost is saved. Through the perfect combination of feeding clamp, high-quality ball screw and linear guide, high-power servo drive, it can meet the high load working condition. The cooperation with the material pre-straightening system eliminates the feeding slipping and deformation of the sheet during feeding process.

W40 adopts CNC turning tool as slotting tool, which has properties of high strength and low loss. Each knife has 8 angles, no need to sharpen, greatly prolongs the service life. There is lower noise and no dust in the machining process, which ensures the smooth grooving effect.

W40 bending adopts 1500W SERVO motor, high torque, high forming degree.The precision mechanical bending system performs good when processing thick plates and high-side materials. The software is easy to operate, and it does not need to modify the nodes of the processing graphics, which greatly improves the work efficiency.

It is the preferred bending machine for high-side letters.

Boost your production of large size advertising metal letter signs:

* Square letter

* High side character

* Hypotenuse letter

* Landscape character

FEEDING SYSTEM

SLOTTING SYSTEM

BENDING SYSTEM

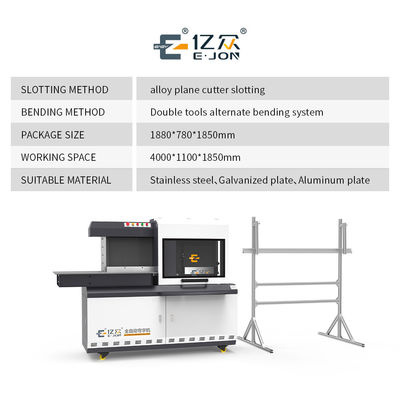

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	AC220V, 50HZ, 4.0KW
2	System	High power Fuji servo system
3	Air Supply	0.6m³/min
4	Working Space	4000mm1100mm1850mm
5	Machine Weight	750 kg
6	Suitable Material	Stainless steel, Galvanized plate, Aluminum plate≤1.5 mm
7	Feeding System	Progressive clamp feeding system
8	Slotting System	Plane cutter slotting&automatic oil spray system
9	Bending System	Double blades alternating bending system
