EJON T20 The Top Advertising Machine for Bending Stainless Steel Aluminum Profiles

Large Image : EJON T20 The Top Advertising Machine for Bending Stainless Steel Aluminum Profiles

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$12,100.00/sets 1-2 sets

Contact Now

EJON T20 The Top Advertising Machine for Bending Stainless Steel Aluminum Profiles

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2024
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Carbon Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	500
Key Selling Points:	Automatic	Applicable Industries:	Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United States, Viet Nam, Saudi Arabia, Russia, Spain, Thailand, Kenya, South Korea, UAE, South Africa, Kazakhstan, Malaysia	Name:	Cnc Auto Letter Bending Machine
Voltage:	220V/50-60HZ/1P	Application:	3D Sign Channel Letters Making
Material Width:	10-130mm	Bending Thickness:	SS:0.3-1.2mm
After-sales Service Provided:	Video Technical Support, Online Support	Slotting System:	Milling Cutter/plane Cutter Slotting
FEEDING SYSTEM:	Circulation-typed Clamp Feeding System	Bending System:	Double Blade Alternate Bending System

Product Description

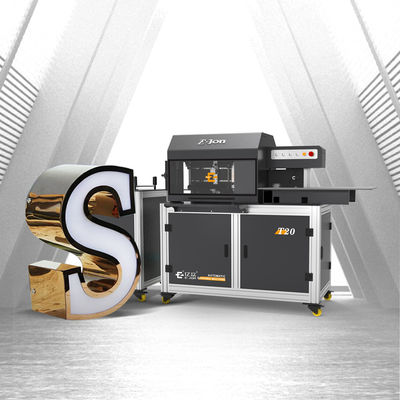

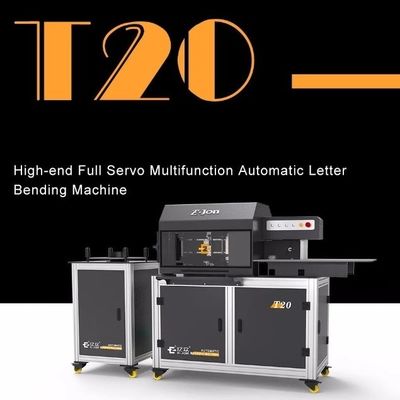

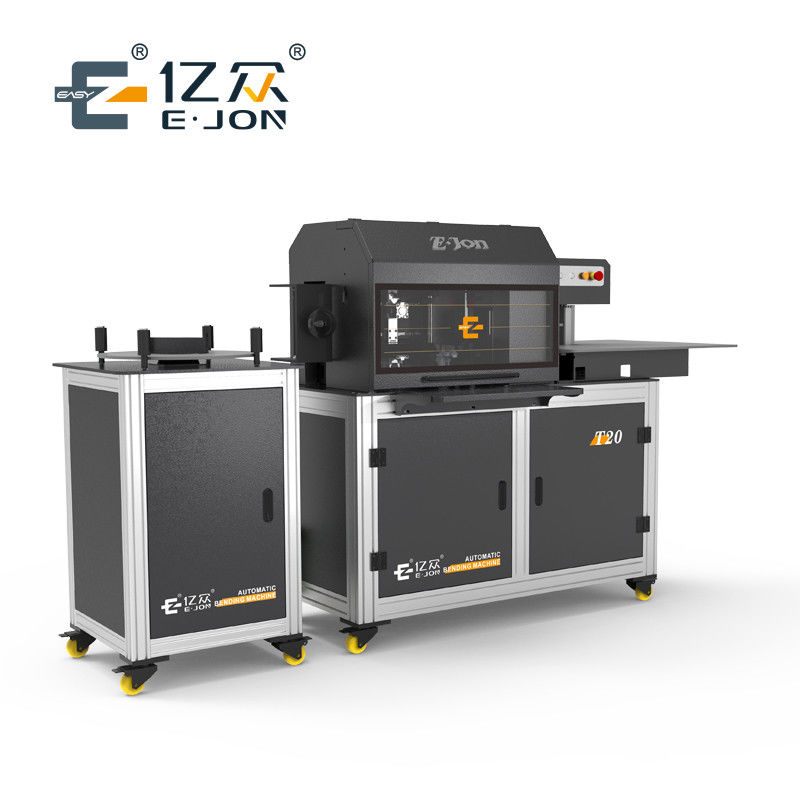

Ejon T20 High-end Full Servo Multi-function Automatic Channel Letter Bending Machine

------Your specialist of advertising sign letters maker

Ejon T20 is the updated model of T13, which widen the slotting trip from 130 mm to 200 mm, and equipped with a full servo control system to ensure the accuracy and stability of feeding, slotting and bending systems. The machine frame and cover are designed by a well-known design team. Machining parts are of chrome plating, beautiful and durable.

The specially designed super-long alternating manipulator feeding is used to feed materials by two sets of clamps to prevent feed slippage. The specially designed super-long alternate feeding mechanism adopts servo control system and is driven by high-quality double ball screws. It has the advantages of large torque, high precision and fast speed, ensuring smooth feeding process and avoiding material deformation.

The double-slotting tool and the double-bend alternate bending settings make it easy to handle the processing of various materials.

The core hardware of the machine adopts the casting structure, which is formed once and has strong stability. It is equipped with computer, air pump, voltage regulator and other related equipment. It is the first choice for high-end LED characters, aluminum profile letters, stainless steel letters, punch letters, resin letters and other sign letters.

SPECIFICATION
Control System	4 axis servo control system
Power	AC 220 V, 50 Hz, 3.0 kW
Air Supply	0.6 m³/min
Material Height	Stainless steel, Galvanized steel, Aluminum plate: 20~130 mm; Aluminum profile: 20~100 mm
Material Thickness	0.4~1.2 mm
Total Weight	500 kg

High Power Control System

The 4-axis high-power 750W full servo control system ensures the accuracy and stability of feeding, slotting, heightening and bending.

*** You don't need to spend more time and energy on operating, the machine is full automatic

More intelligent

More efficient

More time saving.

Mechanical Hand Feeding Design

The specially designed extra long alternate feeding mechanism with mechanical hand feeding design, continuously feeding by the two clamps.

*** The material slipping problem is perfectly solved and the feeding precision is highly improved.

бортогибочный станок для букв
dobladora de letras 3d
ماكينة الانحناء للحروف
machine to make corporate letters

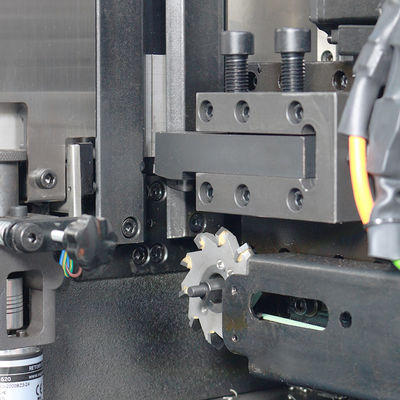

Double-Cutter Slotting

Double-cutters slotting structure can easily deal with various metal materials. Each cutter is made of ultra-fine cemented carbide matrix, which has excellent deformation resistance, and has 8 edge angles, no need to sharpen the cutter only change different angles.

Plane cutter for Galvanized sheet and Stainless steel, width: 10~200 mm

Milling cutter for Aluminum plate and Aluminum profiles, width: 10~170 mm

*** one cutter can lasts more than 10 thousand times, greatly save your money!

Die-casting Technology

The main hardware of the machine adopt die-casting technology (bending mechanism, clamping mechanism and encoder, etc., which benefits the strong stability.

*** The main problem of cutting through the material is effectively solved, then your material cost and time cost is reduced either.

Extended Bending Mechanism

The special designed extended bending mechanism can effectively ensure the long process path forming angle.

*** No longer have to worry about affecting the bending forming Angle.

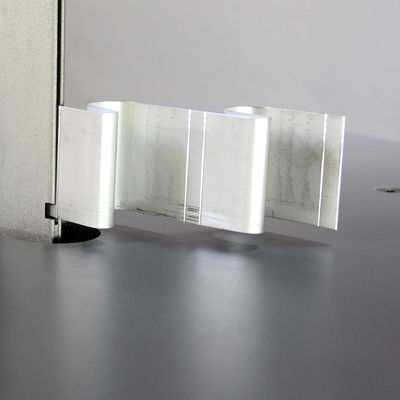

Letter Making

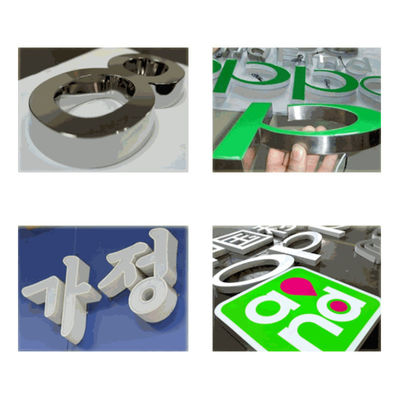

Finished Letters

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.

Computer configuration: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor

Our suggestion:

more than 4 kW;

the gas flow is 0.6 m³/min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI .

We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

We accept customization

The machine can be equipped with Delta or Fuji servo control system, machined surface chrome plated, voltage regulator and so on. Small radian bending tools can be customized, the minimum angle can be R3.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine.

* Training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	460 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.
