Durable Custom Sign Bending Machine For Ejon Y6 Advertising LED Sign Channel Letters

Name: Durable Custom Sign Bending Machine For Ejon Y6 Advertising LED Sign Channel Letters
Brand: Tianjin Ejon Flying Science And Technology Co., Ltd.
Availability: InStock

All Products

Steel Deburring Machine
(27)

Channel Letter Equipment
(291)

Channel Letter Bending Machine
(161)

Laser Welder Machine
(6)

Metal Sign Grinding Machine
(1)

CNC Letter Slotting Machine
(1)

CNC Laser Cutting Machine
(1)

CNC Router Machine
(1)

3D Printer Machine
(1)

Certification

I'm Online Chat Now

Durable Custom Sign Bending Machine For Ejon Y6 Advertising LED Sign Channel Letters

Large Image : Durable Custom Sign Bending Machine For Ejon Y6 Advertising LED Sign Channel Letters

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$6,000.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	2000 Set/Sets per Year

Contact Now

Durable Custom Sign Bending Machine For Ejon Y6 Advertising LED Sign Channel Letters

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2024
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, Stainless Steel, Galvanized Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	350
Key Selling Points:	High-accuracy	Applicable Industries:	Advertising Company
Showroom Location:	Canada, Turkey, United States, Brazil, Saudi Arabia, Russia, Spain, Thailand, South Korea, UAE	Product Name:	Channel LetterS Bender Machine
Machine Type:	Roller-Bending Machine	Raw Material:	Sheet / Plate Rolling
Power:	AC 220V 50Hz 2.0KW	Extra Services:	Slotting & Notching
Slotting System:	Plane Cutter Slotting System	Bending System:	Double Blade Alternate Bending System
Material Thickness:	0.4-1.2mm	Package Size:	12007201480mm
After Sales Service Provided:	Technical Support By Video Or Online

Product Description

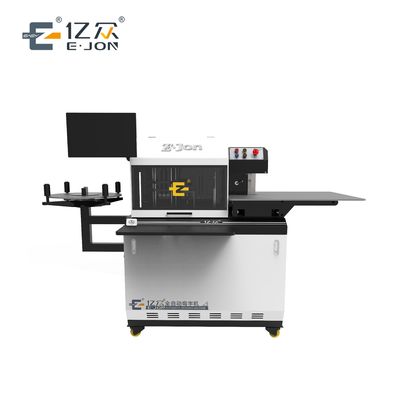

EJON Y6 Multifunctional Stainless Steel Aluminum Plate

Automatic Acrylic Channel Letter Bending Machine

бортогибочный станок для букв, ماكينة الانحناء للحروف, doblado de letras de publicidad, máquina dobladora de letras de canal

* Rolling continuous feeding system. The air pressure can be adjusted according to the materials thickness to avoid indentation and sliding of material. The detection system of encoder and software combination detects the feeding accuracy in real time and guarantees the accuracy of ±0.1mm.

* High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, greatly improve the working life.

* Double bends alternate bending structure, adopts the bends structure cast by ductile iron, which has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, which effectively improves the positioning accuracy and the stability of high-speed bending. It is a versatile bending machine that truly realizes precise slotting and bending of various materials such as aluminum plate, stainless steel and galvanized plate.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter slotting system
Bending System	Double blades alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	Stainless steel,Galvanized steel,Aluminum plate: 20~120mm
Material Thickness	0.4~1.2 mm
Accuracy	±0.1 mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V, 50Hz, 2.0kW
Air Supply	0.6m³/Min
Control System	4 axis control system (2 axis servo control)

Detailed Images

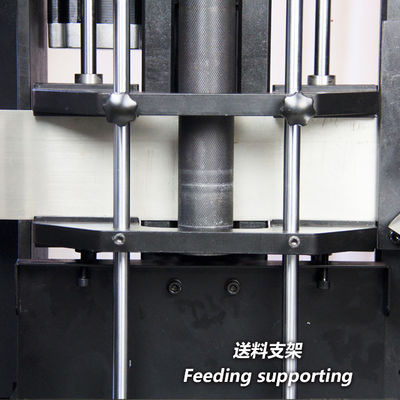

FEEDING SYSTEM

Roller continuous feeding mode

Fast response, Stable feeding

Encoder closed-loop feeding automatic detection system is adopted to ensure feeding accuracy within ±0.1mm.

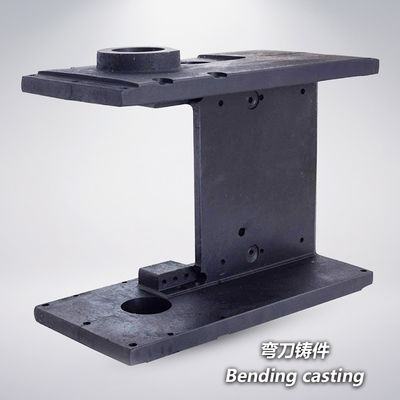

BENDING SYSTEM

The bender cast by ductile iron has good vibration absorption and high structural strength, which reduces the number of parts splicing. The high-power servo motor is equipped to ensure that the bending mechanism will not be deformed under high-speed bending conditions.

SLOTTING SYSTEM

High strength alloy cutters are used for slotting, each knife has 8 angles, no need to sharpen, greatly improve the working life.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

About us

Tianjin Ejon Flying Science and Technology Co., LTD., was founded in 2017, located in Tianjin, China, is specialized in the production of CNC automation equipment and has independent intellectual property rights and a high-level research and development team. The factory covers an area of more than 2,500 square meters, annual sales is more than 3,000 sets which are exported to hundreds of countries and regions. The main products including automatic channel letter bending machine, automatic grooving machine, automatic grinding machine, automatic deburring machine, laser welding machine, laser cutting machine, etc., are economic, durable and popular with dealers, distributors and the users.

Our professional engineers have rich experience to handle different kinds of technical problems.

Our passionate and patient customer service personnel are ready to solve all kinds of problems for buyers any time.

Our agents of several countries can provide local service in time. Meanwhile, we also recruit agents all over the world.

We are willing to be your best partner for win-win cooperation!

CLICK HERE TO VISIT OUR STORE

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install and use the machine.

* Engineers available to service machinery overseas.

CLICK HERE TO CHAT WITH US NOW!

Packing & Delivery

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customers' special request.
