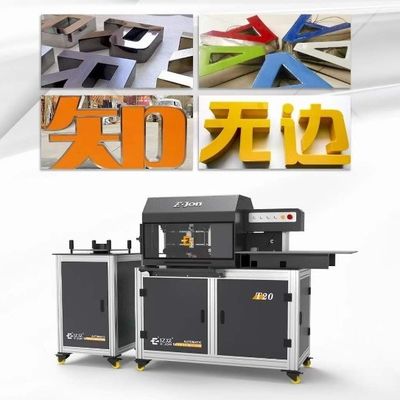

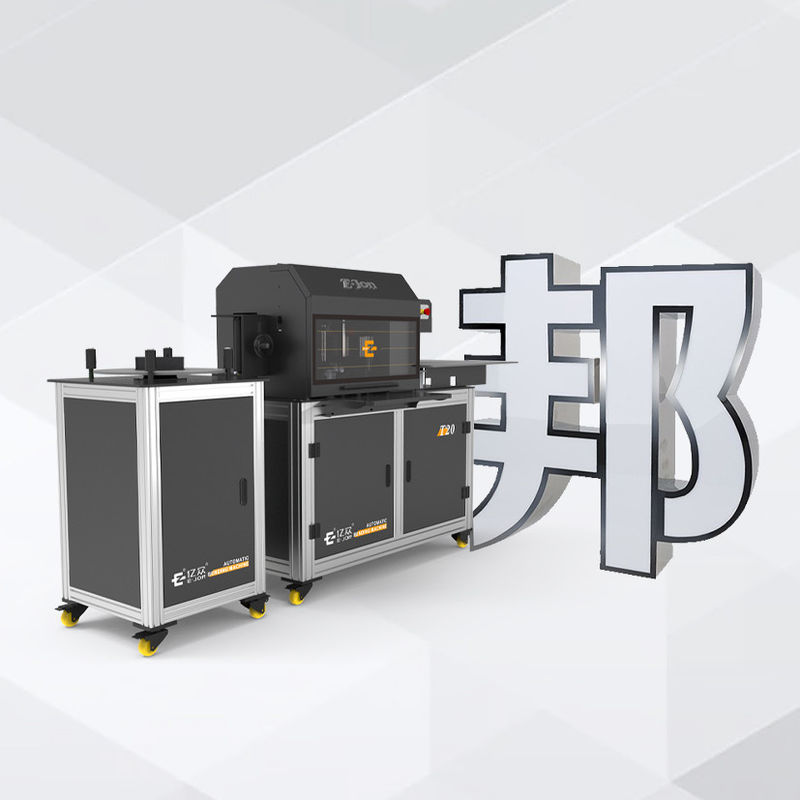

EJON T20 Advertising Luminous Sign CNC Stainless Steel Letter Bender Weight KG 500

Large Image : EJON T20 Advertising Luminous Sign CNC Stainless Steel Letter Bender Weight KG 500

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$12,100.00/sets 1-2 sets
Packaging Details:	Wooden box
Supply Ability:	1000 Set/Sets per Year

Contact Now

EJON T20 Advertising Luminous Sign CNC Stainless Steel Letter Bender Weight KG 500

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2024
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Carbon Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	500
Key Selling Points:	Automatic	Applicable Industries:	Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United States, Viet Nam, Saudi Arabia, Russia, Spain, Thailand, Kenya, South Korea, UAE, South Africa, Kazakhstan, Malaysia	Name:	Cnc Auto Letter Bending Machine
Voltage:	220V/50-60HZ/1P	Application:	3D Sign Channel Letters Making
Material Width:	10-130mm	Bending Thickness:	SS:0.3-1.2mm
After-sales Service Provided:	Video Technical Support, Online Support	Slotting System:	Milling Cutter/plane Cutter Slotting
FEEDING SYSTEM:	Circulation-typed Clamp Feeding System	Bending System:	Double Blade Alternate Bending System

Product Description

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and

resin words, etc.

SPECIFICATION
Control System	4 axis servo control system
Power	AC 220 V, 50 Hz, 3.0 kW
Air Supply	0.6 m³/min
Material Height	Stainless steel, Galvanized steel, Aluminum plate: 20~130 mm; Aluminum profile: 20~100 mm
Material Thickness	0.4~1.2 mm
Total Weight	500 kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc., which ensure the strong stability.

4) 4 sets of Panasonic servo control system, SMC pneumatic component, chrome-faced, computer and air pump.

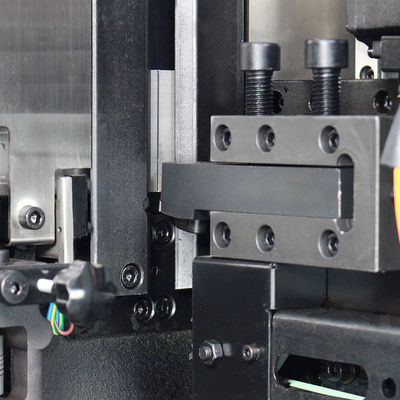

Mechanical Hand Feeding Design

The specially designed extra long alternate feeding mechanism with mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and can improve feeding precision.

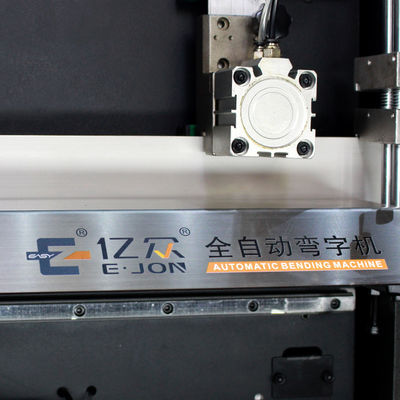

Double-Cutter Slotting

Plane cutter for Galvanized sheet and Stainless steel

Milling cutter for Aluminum plate and Aluminum profiles

бортогибочный станок для букв

dobladora de letras 3d

ماكينة الانحناء للحروف

machine to make corporate letters

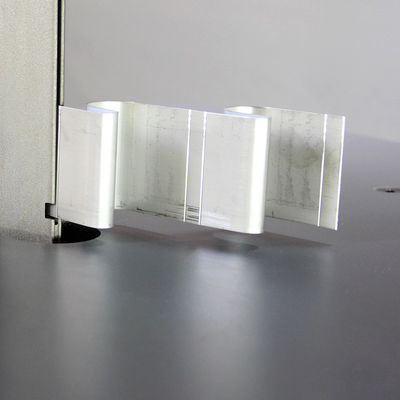

Letter Making

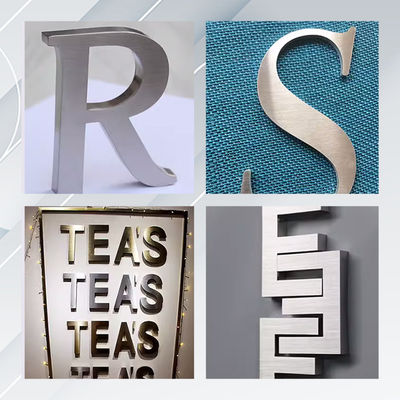

Finished Letters

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.

Computer configuration: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor

Our suggestion:

more than 4 kW;

the gas flow is 0.6 m³/min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI .

We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine.

* Training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	460 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.
