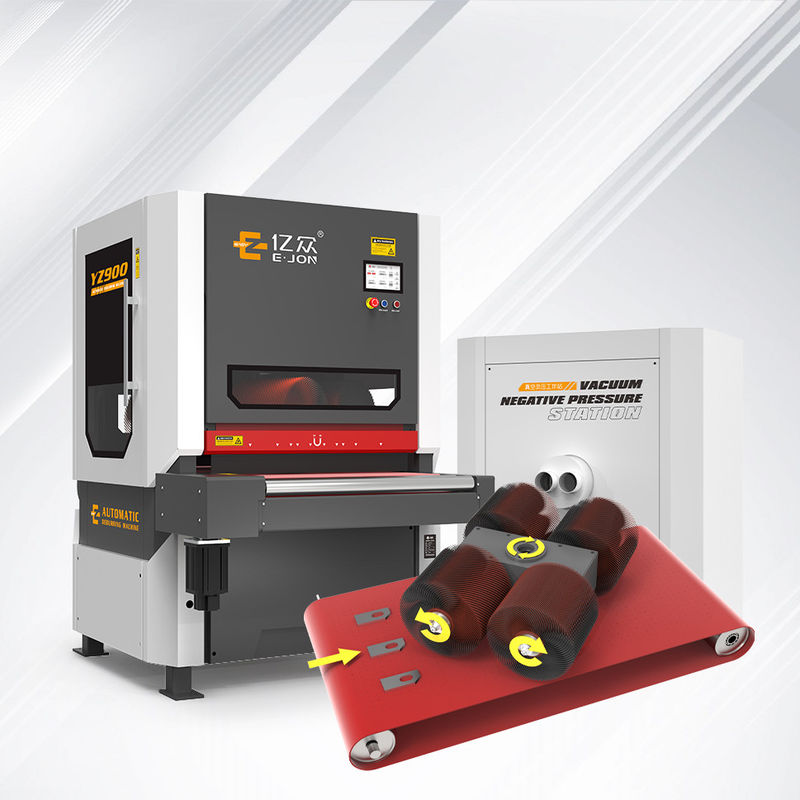

Brush Roller Diameter 300mm YZ900 CNC Polishing Machine for Laser Cut Components

Large Image : Brush Roller Diameter 300mm YZ900 CNC Polishing Machine for Laser Cut Components

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$17,500.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

Brush Roller Diameter 300mm YZ900 CNC Polishing Machine for Laser Cut Components

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2024
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor, Roller Brushes
Power (kW):	5	Weight (KG):	1100
Key Selling Points:	Easy To Operate	Warranty:	1 Year

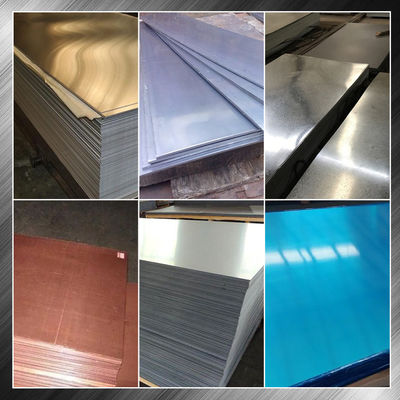

Applicable Industries:	Laser Cutting Parts, Flame Cutting Parts, Precision Sheet Parts, Metal Sheet Parts, Stamping Parts, Automatic Steel Plate	Showroom Location:	Brazil, Japan, Singapore
Product Name:	Automatic Metal Deburring Machine	Usage:	All Flat Metal
After-sales Service Provided:	1 Year	Maximum Machining Height:	80mm
Brush Roller Diameter:	300mm	Brush Roller Speed:	0-1000r/min
Alternating Speed:	0-35r/min	Rated Voltage:	AC 380V/50Hz
The Weight:	1500kg	Processing Range:	W:900mm;H:80mm

CLICK HERE TO ASK MORE

FEATURES AT A GLANCE

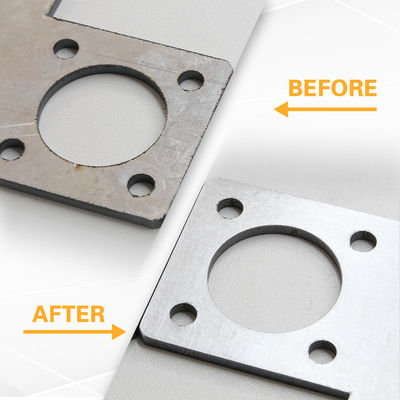

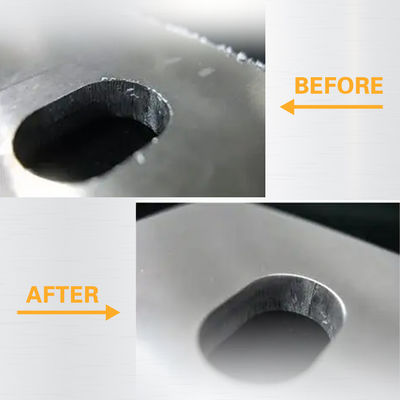

Polishing Effect

BEFORE

AFTER

BEFORE

AFTER

Our Advantages

TRADITIONAL METHOD

Manually apply angle grinder and chamfering machine, the process quality is unstable, the chamfer is inconsistent, the edge is uneven, and it is easy to cause damage to the workpiece; The inner hole edge is not polished properly, resulting in machining dead corners.

DEBURRING MACHINE SOLUTION

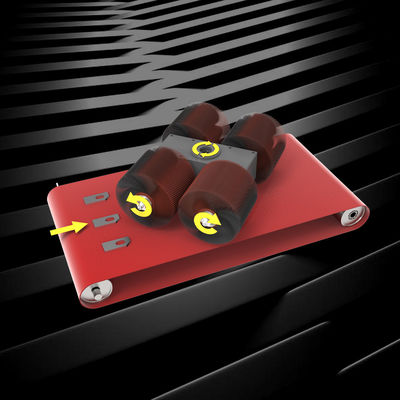

The deburring machine does 360-degree omni-directional machining without dead corner, and the inner and outer edges are fully covered; can achieve uniform chamfering, consistent angles, smooth edges and no harm to the workpiece.

TRADITIONAL METHOD

Manual operation can only process one workpiece each time. When chamfering machine is used for larger workpieces, the operation is slow, and for oversized/ overlong workpieces need two people to work together, which has low efficiency and high labor cost.

DEBURRING MACHINE SOLUTION

The maximum transmission width of the deburring machine is 900 mm, and multiple workpieces can be placed at the same time for batch uninterrupted processing, and the transmission speed (0.1~14 m/min) can be set according to the demand to achieve efficient production.

MAIN CHARACTERISTICS OF EJON YZ916

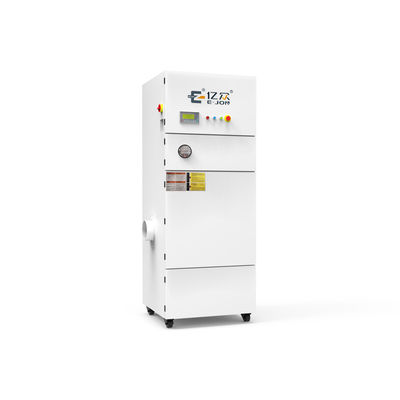

1. More convenient setting. Integrated function setting+LED touch screen. 2. Lower material cost. Universal sand belt wheel can last 2~3 months; multiple sand belt wheels (80~150 molybdenum) are available. 3. Safe. No need to contact with materials during operation, metal debris is blocked in the cabinet and will not splash freely. 4. Clean. Dust and debris can be connected to the dust removal system. 5. Multiple choices. For magnetic-capable material processing, magnetic adsorption function is standard configuration, greatly reduce device power consumption; For materials that cannot be magnetically attracted, vacuum negative pressure workstation can be selected for adsorption processing. 6. Parameters visual adjustment. The grinding and stroke parameters can be freely adjusted visually, can only grind the contour and sharp edge of the workpiece without damaging the surface.
