EJON ET20C The Perfect Combination of Double Blade Bending and High Precision Feeding

Large Image : EJON ET20C The Perfect Combination of Double Blade Bending and High Precision Feeding

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$22,000.00/sets 1-2 sets
Packaging Details:	fumigated wooden case
Supply Ability:	2000 Set/Sets per Year

Contact Now

EJON ET20C The Perfect Combination of Double Blade Bending and High Precision Feeding

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Versatile Channel Letter Bender
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Carbon Steel, Galvanized Sheet	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	800
Key Selling Points:	Multifunctional	Applicable Industries:	Retail, Printing Shops, Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, India, Russia, Spain, Thailand, South Korea, Sri Lanka, Romania, Kazakhstan, Ukraine, Malaysia, Australia	Product Name:	Channel Letter Bending And Flanging Machine
Function:	Auto Feeding+bending+slotting+notching	CNC Or Not:	CNC Letter Auto Bending Machine
Operation Principle:	High Precision Automatic Feeding	Control System:	6 Axis Control System (4 Servo Axis Control)
Applicable Material:	Stainless Steel, Galvanized Plate, Aluminum Plate	Bending System:	Double Blade Alternate Bending System
Bending Thickness:	0.4~1.0mm	Slotting System:	Plane Cutter
Extra Services:	Technical Support Online, Video	Port:	Tianjin Port

Product Overview

Ejon ET20C 3d channel sign flanging notching bending machine sign 3d make machine

sign channel letter equipment

Ejon ET20C CNC Sign Bender notching and flanging bending machine integrates auto feeding, auto slotting, auto notching and flanging, auto cutting function, which is highly automatic to achieve the labor and time saving during the metal letter sign processing. Since its launch, it has become one of the most popular products in the advertising industry. kutu harf makinası,frsemaschine licht buchstaben,Machine à cintrer les lettres,doblador de letras de canal de aceroinoxidable,бортогибочный станок для букв,ماكينة الانحناء للحروف,dobladora de letras corporeas

Main characteristic of hardware

1. Manipulator alternately feeding structure.

2. High power drive slotting system.

3. Automatic notching and flanging system.

4. High strength alloy planer controlled by high power servo.

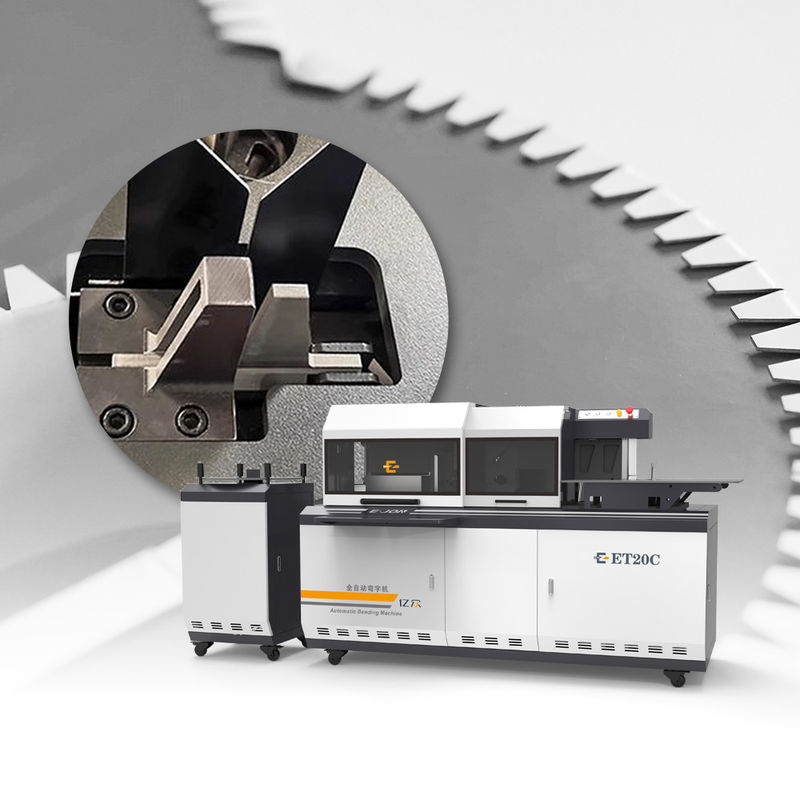

5. Ductile cast iron double blades bending structure.

6. Steel coupling plus specially treated bender.

7. Encoder of cast structure.

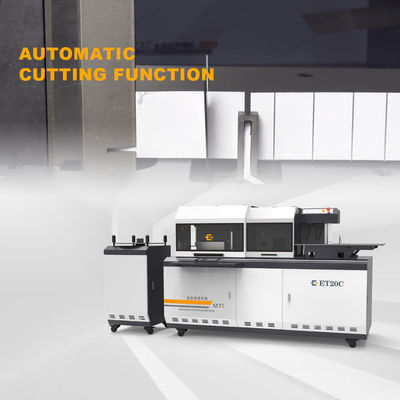

8. Automatic shearing system.

Main characteristic of software

1. Various processing methods can be switched at will for different materials and fonts. 2. The injection amount can be accurately calculated according to the injection process. 3. The software integrates material data of the plates to ensure the bending degree. 4. The software automatically optimizes nodes, without the need for customers to manually delete nodes. 5. Plate data is automatically saved without multiple adjustments.

6. Continuous processing mode can be selected for batch processing, which is convenient and fast. 7. For angles smaller than R6, the thinning function can be selected to meet the requirements of various fonts. 8. Default sharp angle slotting function ensures the matching degree of slotting angle.

FEATURES AT A GLANCE

The function of automatic notching and flanging for flat metal material is added on the basis of existing bending machine.

The servo motors drive control realizes high precision, fast speed and strong stability.

FEEDING

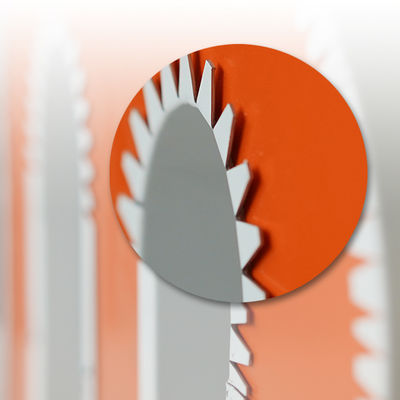

SLOTTING

BENDING AND CUTTING

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	2.0 kW
2	Material thickness	0.4~1.0 mm
3	Slotting trip	10~200 mm
4	Applicable material	metal sheet: stainless steel, galvanized plate, aluminum plate, iron
5	Control system	6 axis control system (4 axis servo control)
6	Slotting method	Plane cutter
7	Working space	3266 mm * 1184 mm * 1783 mm
8	File format	Dxf.Plt.Ai
9	Machine weight	400 kg

PRODUCT CONFIGURATION

Cast clamps can avoid scratching the material, meanwhile improving the feeding holding.

The encoder monitors the numerical change of the feeding length in real time, compensates the unqualified data, and ensures the feeding accuracy.

Bending blades are made of structural casting, which are cast integrally to ensure the stability of high-speed bending.

Double ball screw with nylon gear transmission ensures smooth feeding and accurate positioning, greatly improves the feeding speed and stability of the machine.

The high-power servo motor ensures the stability and consistency of the slotting, as well as the positioning accuracy and stability of the high-speed bending.

Cutting teeth function controlled by self-developed automatic software, fully automatic operation of the machine is realized, and the human cost is saved.

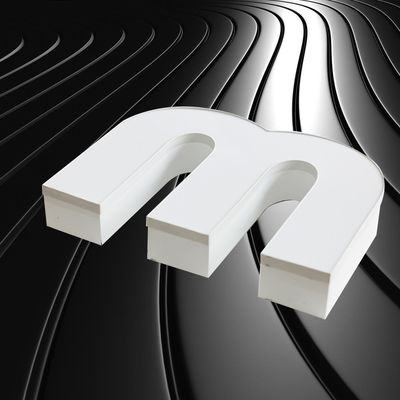

Sample Letters Show
