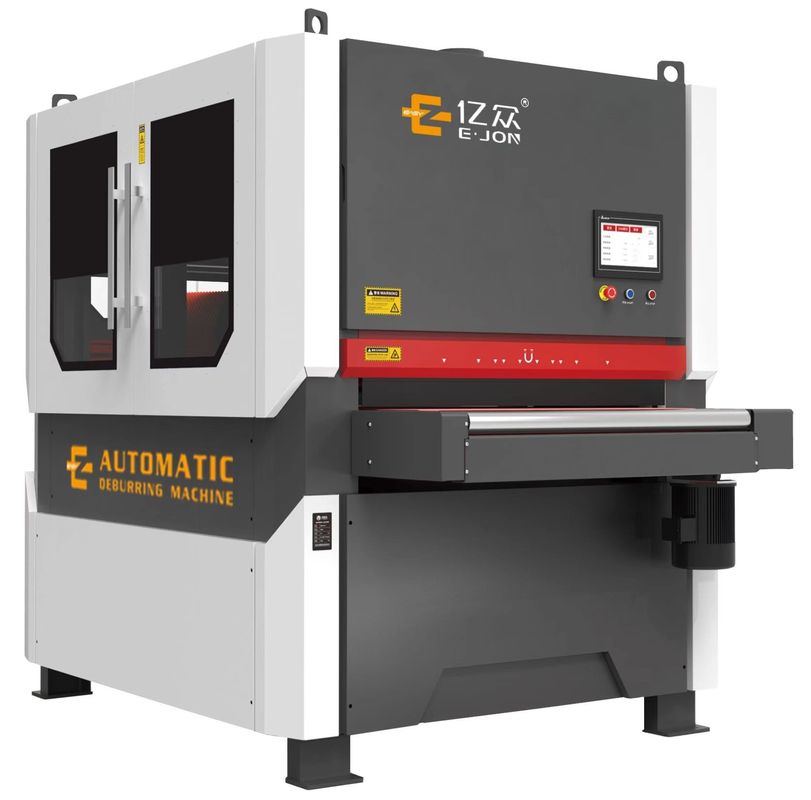

Alternating Speed 0-35r/min Automatic Sheet Metal Edge Deburring Rust Sanding Machine

Name: Alternating Speed 0-35r/min Automatic Sheet Metal Edge Deburring Rust Sanding Machine
Brand: Tianjin Ejon Flying Science And Technology Co., Ltd.
Availability: InStock

All Products

Steel Deburring Machine
(27)

Channel Letter Equipment
(291)

Channel Letter Bending Machine
(161)

Laser Welder Machine
(6)

Metal Sign Grinding Machine
(1)

CNC Letter Slotting Machine
(1)

CNC Laser Cutting Machine
(1)

CNC Router Machine
(1)

3D Printer Machine
(1)

Certification

I'm Online Chat Now

Alternating Speed 0-35r/min Automatic Sheet Metal Edge Deburring Rust Sanding Machine

Large Image : Alternating Speed 0-35r/min Automatic Sheet Metal Edge Deburring Rust Sanding Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$25,000.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

Alternating Speed 0-35r/min Automatic Sheet Metal Edge Deburring Rust Sanding Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor, Grinding Unit
Power (kW):	16.4	Weight (KG):	2100
Key Selling Points:	Multifunctional	Warranty:	1 Year
Applicable Industries:	Manufacturing Plant, Laser Cutting Parts, Flame Cutting Parts, Precision Sheet Parts, Metal Sheet Parts, Stamping Parts, Automatic Steel Plate	Showroom Location:	None
Product Name:	Automatic Metal Deburring Sanding Machine	Usage:	All Flat Metal
After-sales Service Provided:	Online Technical Support, Onsite Operation Guidance	Maximum Machining Height:	80mm
Brush Roller Diameter:	300mm	Brush Roller Speed:	0~999r/min
Alternating Speed:	0~35r/min	Rated Voltage:	AC 380V/50Hz
The Weight:	2100kg	Sanding Belt Width:	1020mm
Port:	Tianjin Port

CLICK HERE TO ASK MORE

FEATURES AT A GLANCE

1. Full automatic operation

2. PLC program controlled

3. Simple touch-screen operation

4. Best quality, best service

5. Save labor, improve efficiency

Interface operation

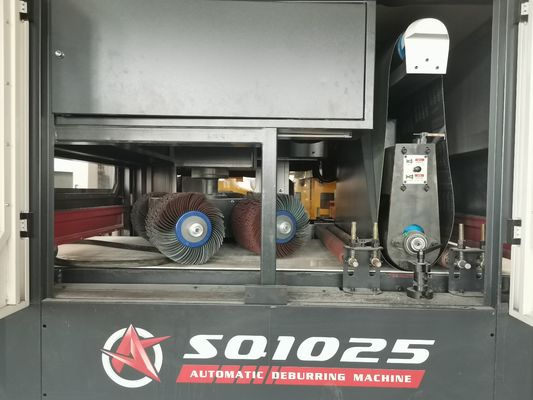

Grinding unit

Dust control interface

PRODUCT SPECIFICATIONS

No	Item	Data
1	Dimensions	1690（L）2560（W）2100（H）mm
2	Width of conveying platform	1000mm
3	Conveyor speed	0.5-10m/min
4	Brush roller number	4
5	Brush roller diameter	300mm
6	Rated power	5.0 kW 10 A
7	Rated voltage	AC 380V/50Hz
8	Chamfering angle arc	R0.5~1.5mm
9	Max processing height	80mm
10	Min. processing size	magnetic parts: *20mm20mm; non magnetic parts: 65mm65mm*

Application

EJON YZ1025 Multi-functional Sander Deburring Chamfer Compact Machine

EJON YZ1025 is a sanding and deburring integrated machine, composed by 4 universal roller brushes and a wide abrasive belt (width: 1020mm). It can not only remove solid slag burrs and oxide skin, but also carry out hairline drawing and fillet processing on the workpiece, and the wide abrasive belt/universal roller brushes can be opened independently according to the processing requirements. Can easily deal with:

* Slag and burr produced by laser, flame, plasma and other hot processing

* Burrs or sharp edge produced by cold working, such as stamping or cutting

Polishing Effect

BEFORE

AFTER

BEFORE

AFTER

Our Advantages

TRADITIONAL METHOD

Manually apply angle grinder and chamfering machine, the process quality is unstable, the chamfer is inconsistent, the edge is uneven, and it is easy to cause damage to the workpiece; The inner hole edge is not polished properly, resulting in machining dead corners.

DEBURRING MACHINE SOLUTION

The deburring machine does 360-degree omni-directional machining without dead corner, and the inner and outer edges are fully covered; can achieve uniform chamfering, consistent angles, smooth edges and no harm to the workpiece.

TRADITIONAL METHOD

Manual operation can only process one workpiece each time. When chamfering machine is used for larger workpieces, the operation is slow, and for oversized/ overlong workpieces need two people to work together, which has low efficiency and high labor cost.

DEBURRING MACHINE SOLUTION

The maximum transmission width of the deburring machine is 900 mm, and multiple workpieces can be placed at the same time for batch uninterrupted processing, and the transmission speed (0.1~14 m/min) can be set according to the demand to achieve efficient production.

MAIN CHARACTERISTICS OF EJON YZ916

1. More convenient setting. Integrated function setting+LED touch screen.

2. Lower material cost. Universal sand belt wheel can last 2~3 months; multiple sand belt wheels (80~150 molybdenum) are available.

3. Safe. No need to contact with materials during operation, metal debris is blocked in the cabinet and will not splash freely.

4. Clean. Dust and debris can be connected to the dust removal system.

5. Multiple choices. For magnetic-capable material processing, magnetic adsorption function is standard configuration, greatly reduce device power consumption; For materials that cannot be magnetically attracted, vacuum negative pressure workstation can be selected for adsorption processing.

6. Parameters visual adjustment. The grinding and stroke parameters can be freely adjusted visually, can only grind the contour and sharp edge of the workpiece without damaging the surface.
