Ejon Y20L LED Neon Flex Sign Making Machine with Automatic Channel Letter Bending

Large Image : Ejon Y20L LED Neon Flex Sign Making Machine with Automatic Channel Letter Bending

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	$8,000.00/sets >=5 sets

Contact Now

Ejon Y20L LED Neon Flex Sign Making Machine with Automatic Channel Letter Bending

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor, Servo
Material / Metal Processed:	ALLOY, Stainless Steel, Galvanized Steel, Aluminum Plate,	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	450
Key Selling Points:	High Productivity	Applicable Industries:	Printing Shops, Advertising Company, Construction Works
Showroom Location:	Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Pakistan, Russia, Spain, Thailand, Kenya, South Korea, Sri Lanka, Ukraine, Malaysia, Australia	Product Name:	Y20L Channel Letter Bending Machine
Function:	Auto Feeding+bending+slotting	Voltage:	220V 50Hz 2.0Kw
File Format:	Dxf.Plt.Ai	Package Size:	14107801600mm
Suitable Material:	Stainless Steel, Galvanized Sheet And Flat Aluminum	Material Thickness:	0.4-1.2mm
Min.Bending Angle:	R6	Control System:	4 Axis Control System
Machine Weight:	400Kg

Product Overview

Ejon Y20L 3d channel sign machine outdoor stainless steel sign backlit led machine
sign channel letter equipment
бортогибочный станок для букв,ماكينة الانحناء للحروف,dobladora de letras de canal,dobladora de letras 3d

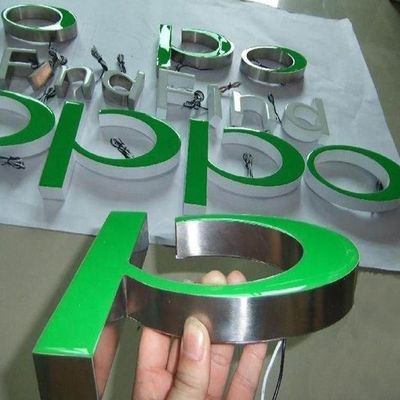

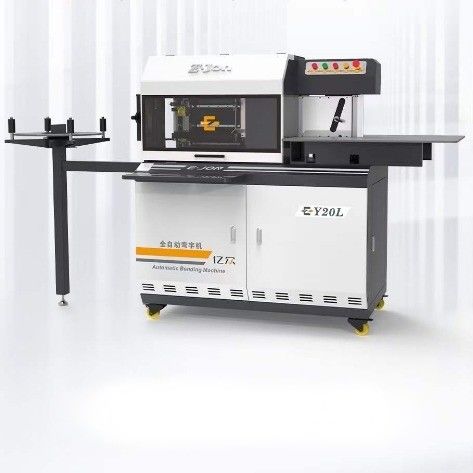

Ejon Y20L Multifunctional Automatic Channel Letter Bending Machine is an updated model of Ejon Y13L, which increases the slotting trip from 13 cm to 20 cm, to meet the requirement of wide material processing. Y20L uses imported high strength plane cutter for slotting, can easily deal with various metal sheet plate, such as stainless steel, iron, aluminum plate, galvanized plate. It is very popular in Middle East, America and Russia, and widely used in advertising company for metal signs manufacturing, including seiko letters, resin letters, narrow edge letters, rimless letters, luminous letters, etc.

Main characteristic of hardware

1. Double ball screw matched with nylon gear transmission.

2. Slotting mechanism with air blowing and cooling function.

3. Feeding support controlled by air cylinder.

4. High strength alloy planer controlled by high power servo.

5. Ductile cast iron double blades bending structure.

6. Steel coupling plus specially treated bender.

7. Encoder of cast structure.

8. External USB connection plus one button start function.

9. Button board with voltage display function.

Main characteristic of software

1. Various processing methods can be switched at will for different materials and fonts. 2. The injection amount can be accurately calculated according to the injection process. 3. The software integrates material data of the plates to ensure the bending degree. 4. The software automatically optimizes nodes, without the need for customers to manually delete nodes. 5. One click to switch the use of different cutters for different materials.

6. Plate data is automatically saved without multiple adjustments. 7. Continuous processing mode can be selected for batch processing, which is convenient and fast. 8. For angles smaller than R6, the thinning function can be selected to meet the requirements of various fonts. 9. Default sharp angle slotting function ensures the matching degree of slotting angle.

FEATURES AT A GLANCE

The Material Pre-straightening Structure effectively corrects the deformation phenomenon that often occurs when the user uses the coil material, so that the material can be leveled, thus improving the overall processing quality.

FEEDING

SLOTTING

BENDING

PRODUCT SPECIFICATIONS

No	Item	Data
1	Power	2.0 kW
2	Material thickness	0.4~1.2 mm
3	Slotting trip	10~200 mm
4	Applicable material	metal sheet: stainless steel, galvanized plate, aluminum plate, iron
5	Control system	4 axis control system (2 axis servo control)
6	Slotting method	Plane cutter

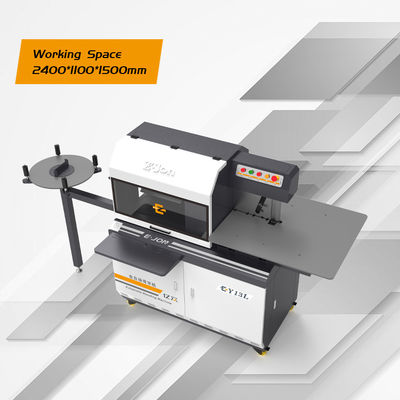

7	Working space	2400 mm * 1100 mm * 1500 mm
8	File format	Dxf.Plt.Ai
9	Machine weight	400 kg

PRODUCT CONFIGURATION

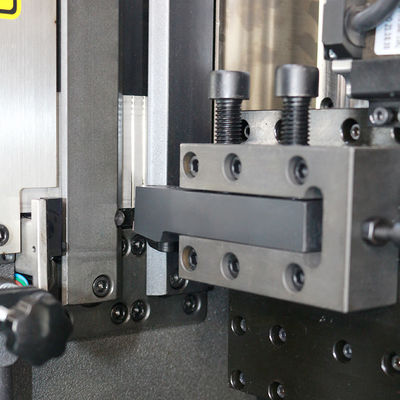

Cast clamps can avoid scratching the material, meanwhile improving the feeding holding.

The encoder monitors the numerical change of the feeding length in real time, compensates the unqualified data, and ensures the feeding accuracy.

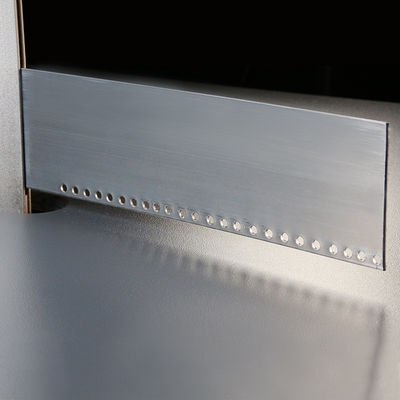

Punching needles are made of imported steel. The punching holes are smooth and burr-free.

The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

The high-power servo motor ensures the stability and consistency of the slotting, as well as the positioning accuracy and stability of the high-speed bending.
