EJON T13 3 in 1 Aluminum Letter Bender 3D Letter Sign Bending Machine Retail Weight KG 550

Large Image : EJON T13 3 in 1 Aluminum Letter Bender 3D Letter Sign Bending Machine Retail Weight KG 550

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$11,000.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

EJON T13 3 in 1 Aluminum Letter Bender 3D Letter Sign Bending Machine Retail Weight KG 550

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Sell In Europe
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminum, ALLOY, Stainless Steel, Carbon Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	550
Key Selling Points:	High Productivity	Applicable Industries:	Retail, Advertising Company, Signage Company
Showroom Location:	Egypt, Turkey, Brazil, India, Russia, Spain, Thailand, UAE, Malaysia, Australia	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Name:	Channel Letter Bending Machine	Application:	Making 3D Sign Channel Letters
Function:	Auto Feeding+bending+slotting	Available Material:	Steel, Aluminum, Profile, Galvanized Plate
Bending System:	Double Blade Alternative Bending	Material Width:	Plane Cutter: 20-130mm; Milling Cutter: 20-100mm
Material Thickness:	0.4-1.2mm	Power:	AC220V,50Hz,2.0Kw
Control System:	4 Axis Control System (4 Servo Axis Control)	Port:	Tianjin Port

Product Description

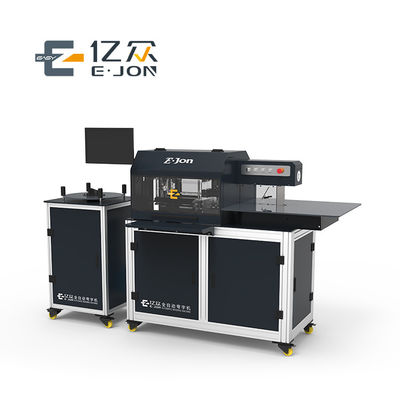

EJON T13

Multi-function Sign Board Making Channel Letter Trimcap Bender Machine

Ejon T13 is a multi-functional channel letter bending machine due to its processing capability of diverse metal sheet as well as profile, which is widely used in advertising 3D signage, neon sign and metal channel letter making. It is appreciated by customers in home and abroad, especially in European, Middle East and American countries, such as Russia, Saudi Arabia, United States, Canada, etc.. It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternating feeding device
Slotting System	Plane cutter and alloy milling cutter system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	1. Stainless steel, Galvanized steel, Aluminum plate: 20-130 mm; 2. Aluminum profile:20-100 mm
Material Thickness	0.4-1.2 mm
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220 V, 50 Hz, 3.0 kW
Air Supply	0.6 m³/min
Total Weight	500 kg

Detailed Images

1. Specially designed extra long alternating feeding mechanism

Mechanical Hand Feeding Design

a. The material is continuously fed by two mechanical hands, effectively avoiding the feeding slipping and improving the feeding precision.

b. The fixed double manipulator guide rail with pneumatic support ensures the smooth feeding and the material will not deform.

c. Through the use of spring compression to control the feeding bracket, effectively eliminate the material warping in the feeding process.

Double ball screw of feeding design

Double ball screw with nylon gear drive ensures accurate positioning, greatly improves the feeding speed and stability of the machine.

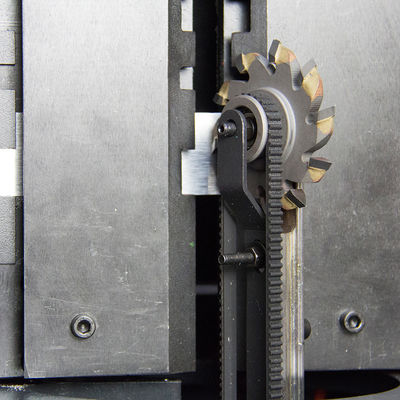

2. Double tool slotting system

Double tool slotting structure

Double tool slotting structure can easily cope with a variety of materials:

using Plane Cutter for galvanized sheet , stainless steel and aluminum plate.

using Milling Cutter for aluminum profiles.

Encoder module

The encoder module is the key component which guarantees the slotting performance of high precision.

3. Double-blades alternate bending settings

Double-blades alternate bending settings

The ductile cast iron blades structure has reduced the number of parts splicing, thus has an excellent vibration absorption capacity and high structural strength.

Small radian bending tools can be customized, the minimum angle can be R3.

Extra long bending span

Extra long bending span effectively avoids affecting the forming angle during processing.

4. Four sets of servo motors control system

Full servo control system

The machine can be equipped with Delta or Panasonic servo control system.

The 4-axis high-power 750 W full servo control system ensures the accuracy and stability of feeding, slotting, heightening and bending.

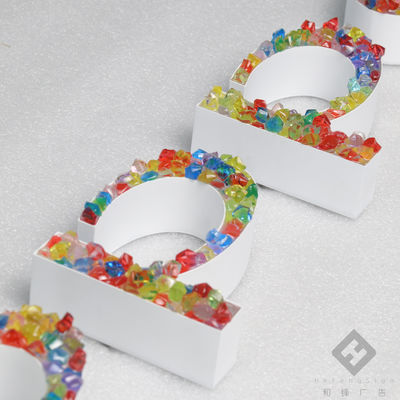

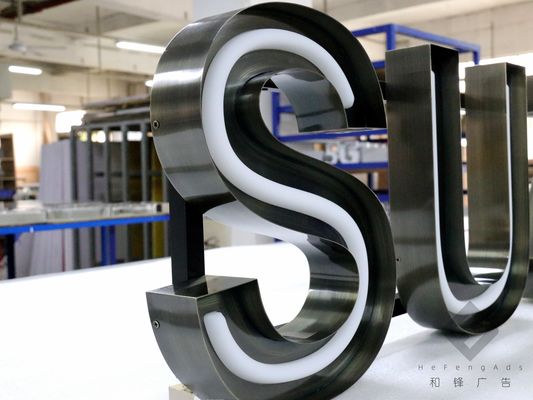

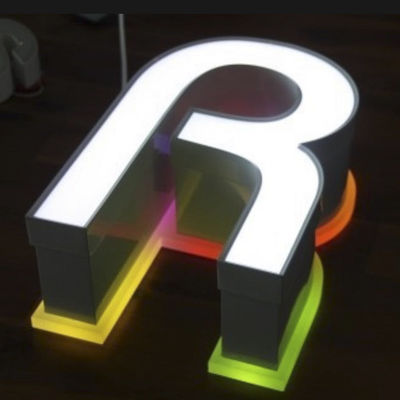

Sample Letters Show

Supporting Facility

Computer

1. XP system or window7 32-bit system;

2. One PCI card slot to install the control card.

Pump

Air compresser, more than 4 kW, the gas flow is 0.6 m³/min.

File Format

Dxf.Plt .AI

We recommend using Coredraw or adobe illustrator.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine

* Training how to use the machine.

* Engineers available to service machinery overseas.

CLICK HERE TO GET A FREE QUOTATION !

Packing & Delivery

Packaging-Host machine
Size	1600(L) * 750 (W) * 1620(D)
Weight	550 kg
Packaging Details	1. The normal package is fumigated wooden box(Size: LWH). 2. Customers special request.

Packaging-Feeding cabin
Size	660(L) * 660(W) * 1110 (D)
Weight	45 kg
Packaging Details	1.The normal package is fumigated wooden box(Size: LWH). 2.Customers special request.
