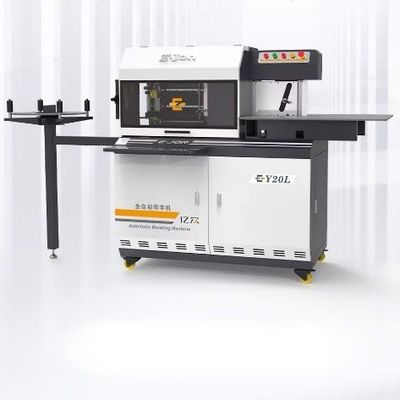

20cm Wide Channel Letter Bending Machine for LED Signage Ejon Y20L Servo Control

Large Image : 20cm Wide Channel Letter Bending Machine for LED Signage Ejon Y20L Servo Control

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$9,000.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	2000 Set/Sets per Year

Contact Now

20cm Wide Channel Letter Bending Machine for LED Signage Ejon Y20L Servo Control

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Motor, Servo
Material / Metal Processed:	ALLOY, Stainless Steel, Galvanized Steel, Aluminum Plate,	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	450
Key Selling Points:	High Productivity	Applicable Industries:	Printing Shops, Advertising Company, Construction Works
Showroom Location:	Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Pakistan, Russia, Spain, Thailand, Kenya, South Korea, Sri Lanka, Ukraine, Malaysia, Australia	Product Name:	Y20L Channel Letter Bending Machine
Function:	Auto Feeding+bending+slotting	Voltage:	220V 50Hz 2.0Kw
File Format:	Dxf.Plt.Ai	Package Size:	14107801600mm
Suitable Material:	Stainless Steel, Galvanized Sheet And Flat Aluminum	Material Thickness:	0.4-1.2mm
Min.Bending Angle:	R6	Control System:	4 Axis Control System
Machine Weight:	400Kg	Port:	Tianjin

_{Product Description}

Ejon Y20L Automatic 3D Sign Channel Letter Bending Machine

Advertising Acrylic LED Signs Edge Bending Machine

Ejon Y20L is a multi-functional automatic channel letter bending machine.

maquinas para hacer numeros metalicos, doblador de letras de canal de acero inoxidable, ماكينة الانحناء للحروف

Using mechanical hand alternately feeding structure, the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings, avoid scratching to the material while improving the feeding holding.

Plane cutter can slot all kinds of materials. The linear guide way is matched with the ball screw, with 750 W high-power servo motor, greatly improved the feeding speed and stability.

Double bends alternate bending structure, the bend is widened to 20 cm. The ductile iron casting structure has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, which effectively improves the positioning accuracy and the stability of high-speed bending.

SPECIFICATIONS
Feeding system			Double ball-screw alternate feeding system
Slotting System			Alloy Plane cutter slotting system
Bending System			Double tools alternate bending system
Suitable Material			Stainless steel, Galvanized steel, Aluminum plate
Material Height			Stainless steel, Galvanized steel, Aluminum plate:10~200mm
Material Thickness			0.4~1.2mm
Accuracy			±0.1mm
Min. Bending Angle			R6
File Format			Dxf.Plt.Ai
Power			AC220V, 50Hz, 2.0kW
Control System			4 axis control system (2 axis servo control) 4aixs servo control as choice

_{Detailed Images}

Main Features

1) The bending system adopts structural castings and is integrally cast to ensure the stability of high-speed bending.

2) The feeding structure adopts double ball screw matched with nylon gear transmission ensuring the precise positioning, smooth feeding, greatly improving the feeding speed and stability.

3) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

Machine Parts

The double feeding holder ensures the smooth feeding and avoid warping.

Main Features

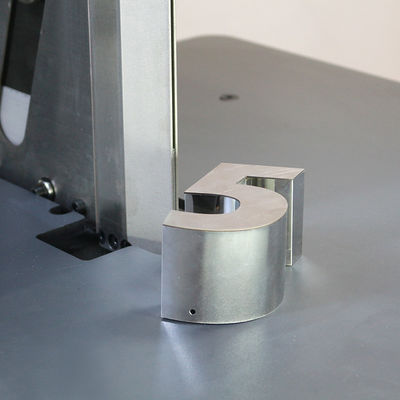

The monobloc casting of Bending Mechanism has high molding degree which ensures the bending speed and stability.

Machine Parts

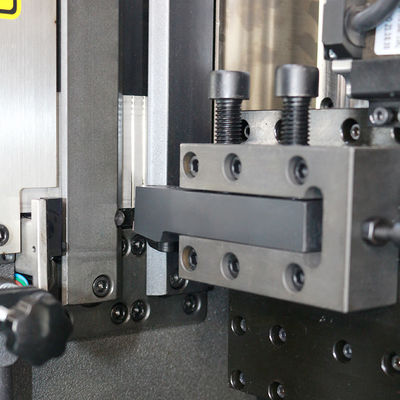

Alloy plane cutter for Galvanized sheet, Stainless steel, Aluminum plate.

Each cutter has 8 angles, can be used about one month, costs about 5 USD.

Main Features

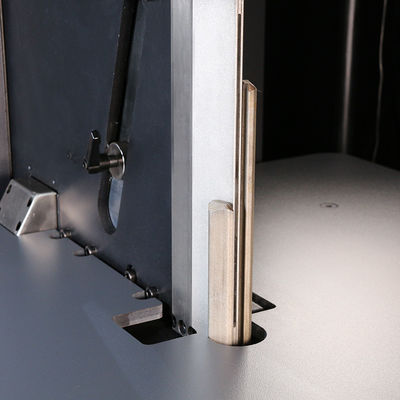

Steel coupling ensures the bending molding and bending speed.

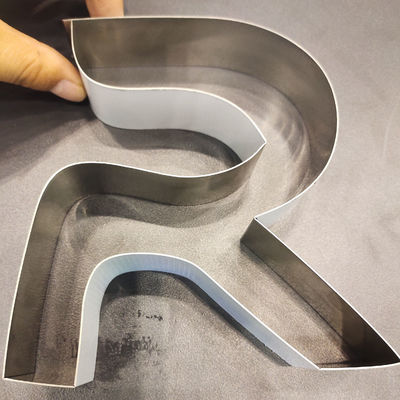

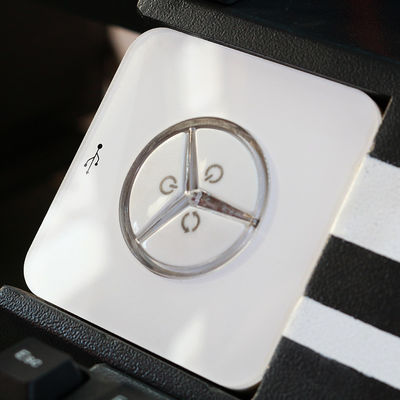

_{Sample Letter Show}

_Exibition

_{Supporting Facility}

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

_{Our Service}

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install and use the machine.

* Engineers available to service machinery overseas.

1.Whole machine with one year warranty.
2.Free training course at our plant or on line. We also provide our technicians for on-site training if you need.
3.After the warranty period, we will provide the consumable parts at an agency price when you need replacement.
4.Whole machine checking before delivery.

5. After machine arrived, you just need connect power supply, software etc, it's more easily for you. If you're worried, we can take a teaching video for you at that time.
6.After machine shipped, I'll prepare some documents, like B/L, Packing list, Commercial invoice, Sales contract, CE Certification for helping you pick up your machine.

CHAT WITH ME NOW!

_{Packing & Delivery}

* Size：1410*780*1600mm

* Weight：450KG

* Packaging details：The normal package is fumigated wooden box(Size: L*W*H). If container is too tight, we will use PE film for packing or pack it according to customers' special request.
