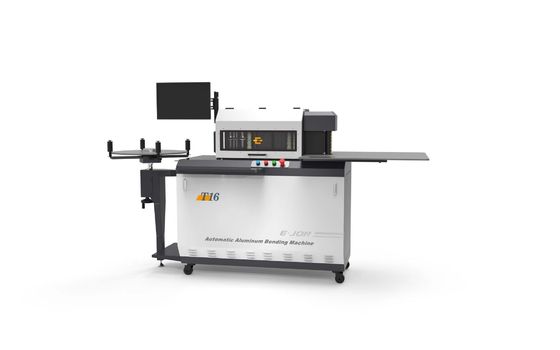

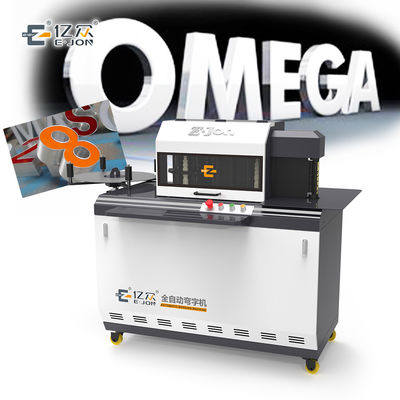

EJON T16 Neon Sign 3D LED Letter Channel Letter Bending Machine for Aluminum Channel

Large Image : EJON T16 Neon Sign 3D LED Letter Channel Letter Bending Machine for Aluminum Channel

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$4,000.00/pieces 1-4 pieces
Packaging Details:	Wooden box
Supply Ability:	1000 Piece/Pieces per Year

Contact Now

EJON T16 Neon Sign 3D LED Letter Channel Letter Bending Machine for Aluminum Channel

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2020
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY	Automation:	Automatic
Year:	2023	Warranty:	1 Year
Weight (KG):	250	Key Selling Points:	Competitive Price
Applicable Industries:	Retail, Hotels, Advertising Company, Construction Works , Signage	Showroom Location:	Egypt, United States, Viet Nam, Brazil, India, Russia, Spain, Thailand, UAE, Malaysia, Australia
Product Name:	Channel Letter Bending Machine	After Sale Service:	Field Service, Online Support, Video Support
Function:	Aluminum Bending Machine	Processing Material:	Flat Aluminum , Aluminum Profile
Bending Thickness:	Aluminum Profile 0.4-1.2mm, Aluminum Flat Plate:0.4-0.8mm	Material Width:	20-160mm
Bending System:	Squeeze Arc	Slotting System:	Milling Cutter Slotting System
FEEDING SYSTEM:	Rolling Typed Continuous Feeding System	Port:	Tianjin Port

Product Description

Product Application

T16:

EJON T16 neon sign 3d LED letter channel letter for channelume aluminum bending machine with CE

Exclusive design for aluminum profile and aluminum plate bending with positive and negative double side slotting methods. The slotting can be at any angle.

SPECIFICATIONS
Feeding system	Customized feeding roller
Slotting System	Rotatable alloy milling cutter
Bending System	Double blade alternate bending system
Suitable Material	All kind of Aluminum plate and Aluminium profile
Material Height	Aluminum plate:20~130mm, Aluminum profile:20-100mm
Material Thickness	0.4-1.2mm
Control System	4 axis control system
Min. Bending Angle	R10
File Format	Dxf.Plt.Ai
Power	AC220V、50Hz、3.0Kw
Air Supply	0.6m3/Min
Total Weight	220Kg

Main Features

1) The customized feeding roller ensures the feeding precision, meanwhile, does not scratch the meterial..

2) The well designed bending mechanism inproves themokding degree.

3) The independent lifting pallet can fit all sizes of aluminium.

Detailed Images

Roller feeding

The customized feeding design, continuously feeding to avoid feeding slipping and improve feeding precision.

Powerful brand motor

The control motors are all used the famous brand.

Cutting system

Rotated alloy wheel cutter, easy to cut all kinds of aluminum materials, channelume.

Copper bending system

Adjustable copper bender, easy to bend all kinds of aluminum materials and channelume

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the
software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is
0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe
illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the
document.
