Ejon Top Channel Letter Bender CNC Neon Sign Making Machine with Milling Wheel Cutter

Large Image : Ejon Top Channel Letter Bender CNC Neon Sign Making Machine with Milling Wheel Cutter

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$12,000.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

Ejon Top Channel Letter Bender CNC Neon Sign Making Machine with Milling Wheel Cutter

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Galvanized Sheet, Aluminum Profile	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	500
Key Selling Points:	Multifunctional	Applicable Industries:	Advertising Company
Showroom Location:	Egypt, Turkey, United States, Italy, France, Viet Nam, Saudi Arabia, Indonesia, India, Russia, Spain, Thailand, Kenya, South Korea, UAE, Ukraine, Australia	Product Name:	Multifunction Channel Letter Sign Bending Machine
Machine Type:	CNC Sign Letter Bender	Processing Material:	Flat Metal, Aluminum Profile
Power:	AC220V,50Hz,2.0Kw	After-sales Service Provided:	Technical Support By Video Or On Line
Material Thickness:	0.4~1.2 Mm	Slotting System:	Milling Wheel Cutter
Bending Method:	Double-bends Bending	Min. Bending Angle:	R6
Slotting Trip:	Plane Cutter: 10~130/200mm; Milling Cutter: 10~100/170mm	Port:	China Port

Products Description

EJON shop sign makers stainless steel aluminum 3d letters sign bending machine channel letter bending machine for luminous advertising letters

dobladora de letras 3d, бортогибочный станок для букв, ماكينة الانحناء للحروف, maquina para hacer los letreros de led neon, Machine à cintrer les lettres

Ejon provides you with a one-stop solution for advertising luminous letters and LED signs production equipment.

Our engineers who have 10+ years of industrial experience designed various types of chanel letter bending machines to meet different demand of customers.

From the entry level to superior models, all the machines with CE use high-quality parts and high-end models use servo motors imported from Japan to ensure their durability.

We always stick to our handpick principle of rather go without than have something shoddy-put quality before quantity.

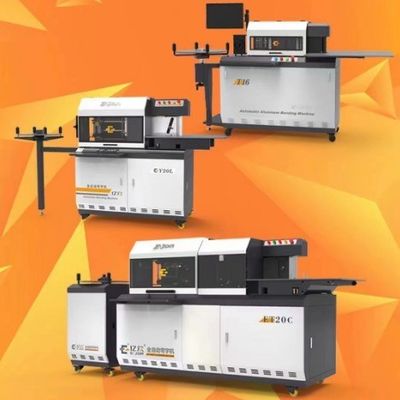

Click the photo below to choose the machine you are interested.

We also accept customization, click here to tell us your requirements.

Instruction

According to the material to be bent, here are the machines to choose from as below.

You can click its model No. to learn more or click me to inquire directly.

MODELS	FLAT ALUMINUM	FLAT METAL SHEET (stainless steel, iron, galvanized plate)	ALUMINUM PROFILE
T16, E9	√	×	√
Y6, Y13L, Y20L, ET20C, W40, ET80/120/150	√	√	×
T13, S13, T20, ET20	√	√	√

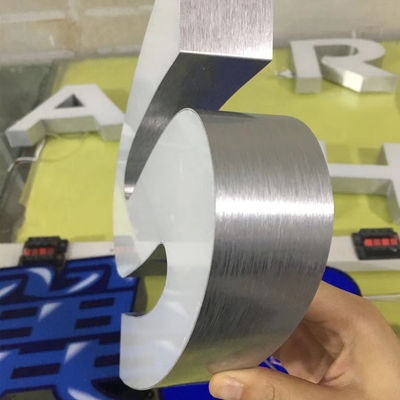

Letter Sample Show

Seiko letter

Resin letter

Narrow edge letter

Rimless letter

Luminous letter

Circumference letter

Detailed Images

* Scratch the metal surface?

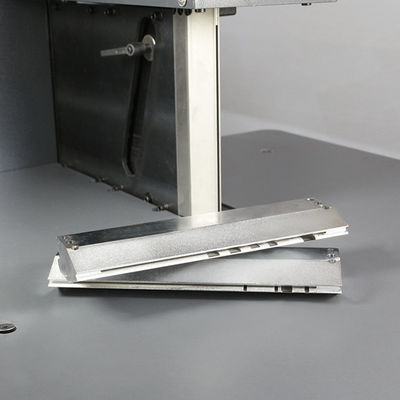

NO! The casting on Clamping increases the grasping force, meanwhile does not scratch the material.

* Is the feeding unstable?

NO! The double ball screw of feeding design ensure the feeding speed and precision as well as stability.

* Usually need to change the cutter?

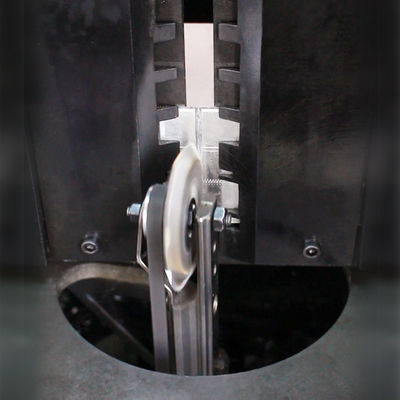

NO! High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, meanwhile the slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

* How about the precision?

The encoder module is the key component of the the relation equipment precision, and the precision casting is used to ensure the performance of the high precision encoder.750 W high-power servo motor also improves the positioning accuracy and the stability of high-speed bending.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine.

* Training how to use the machine.

* Engineers available to service machinery overseas.

Anything you want to know, we are always at your service, CLICK HERE TO CHAT!

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	500
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customers' special request.

Packaging
Size	660(L) * 660 (W) * 1110(D)
Weight	350KG
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customers' special request.
