Transform Your Sign Making Process with EJON Y13L Channel Letter Bending Machine

Large Image : Transform Your Sign Making Process with EJON Y13L Channel Letter Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$6,500.00/sets 1-4 sets
Packaging Details:	The export wooden box
Supply Ability:	5000 Set/Sets per Year

Contact Now

Transform Your Sign Making Process with EJON Y13L Channel Letter Bending Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Lower Price
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Galvanized Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	400
Key Selling Points:	High Productivity	Applicable Industries:	Printing Shops, Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Russia, Spain, Thailand, Kenya, South Korea, UAE, Sri Lanka, South Africa, Kazakhstan, Ukraine, Malaysia, Australia	Product Name:	Channel Letters Bender Machine
Usage:	3D Letter Frame Bending	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Applicable Material:	Stainless Steel,iron Sheet,galvanized Plate,flat Aluminum	Material Thickness:	0.4~1.2mm
Material Width:	20-130mm	Control System:	4 Axis Control System (2 Servo Axis Control)
Power:	AC220V,50Hz,2.0Kw	Slotting System:	Plane Cutter
Port:	China Port

Product Description

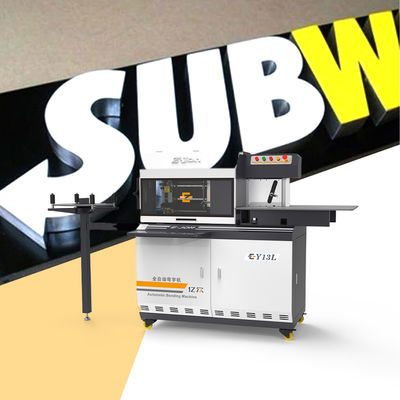

EJON Y13L shop sign makers stainless steel aluminum 3d letters sign bending machine channel letter bending machine for luminous advertising letters

dobladora de letras 3d, бортогибочный станок для букв, ماكينة الانحناء للحروف, maquina para hacer los letreros de led neon

Multifunction channel letter bending machine, Using mechanical hand alternately feeding structure, the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings, avoid scratching to the material while improving the feeding holding power.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	20~130mm
Material Thickness	0.4~1.2mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V、50Hz、3.0Kw
Air Supply	0.6m³/Min
Control System	4 axis control system (2 axis servo control)

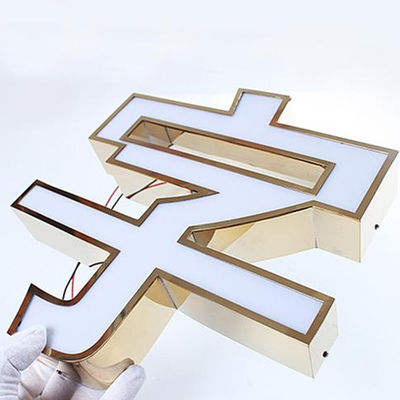

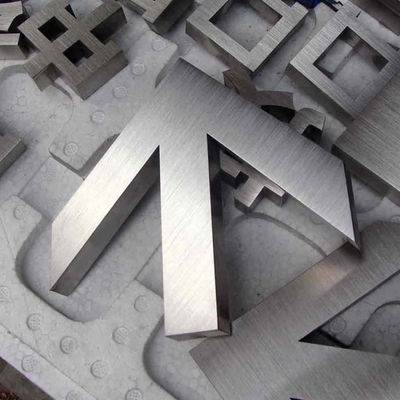

Letter Sample Show

Seiko letter

Resin letter

Narrow edge letter

Rimless letter

Luminous letter

Circumference letter

Detailed Images

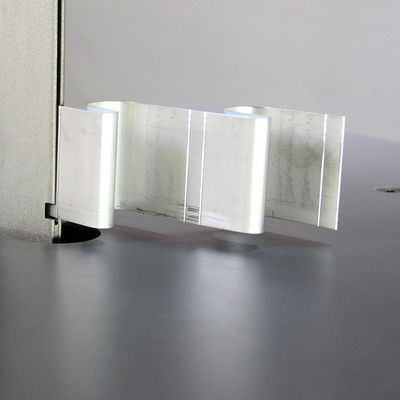

* Scratch the metal surface?

NO! The casting on Clamping increases the grasping force, meanwhile does not scratch the material.

* Is the feeding unstable?

NO! The double ball screw of feeding design ensure the feeding speed and precision as well as stability.

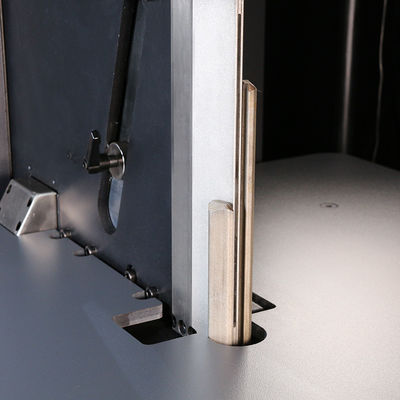

* Usually need to change the cutter?

NO! High strength alloy cutters are used for slotting knifes, each knife has 8 angles, no need to sharpen, meanwhile the slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

* How about the precision?

The encoder module is the key component of the the relation equipment precision, and the precision casting is used to ensure the performance of the high precision encoder.750 W high-power servo motor also improves the positioning accuracy and the stability of high-speed bending.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine

* Training how to use the machine.

* Engineers available to service machinery overseas.

Anything you want to know, we are always at your service, CLICK HERE TO CHAT!

Customer Photos

Kenya

Dubai

Vietnam

Thailand

Ukraine

USA

Customers' Feedback

Packing & Delivery

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
