Product Details:
|
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Servo Motor |
| Material / Metal Processed: | Aluminum, Stainless Steel, Galvanized Plate | Automation: | Automatic |
| Warranty: | 1 Year | Weight (KG): | 800 |
| Key Selling Points: | Multifunctional | Applicable Industries: | Advertising Company |
| Showroom Location: | Canada, Turkey, United States, Viet Nam, Philippines, Saudi Arabia, Indonesia, India, Russia, Spain, Thailand, South Korea, UAE, South Africa, Ukraine, Australia | Product Name: | 3d Letter Bending Machine |
| Function: | Auto Feeding+bending+slotting+notching | Material Width: | 10-200mm |
| Material Thickness: | 0.4-1.0mm | Available Material: | Stainless Steel, Galvanized Plate, Aluminum Plate |
| Min. Bending Angle: | R6 | Distance Of Internal & External Angles: | ≥10mm |
| Control System: | 6 Axis Control System (4 Servo Axis Control) | V-cut Angle: | 30°/120° |
| Power: | AC 220V 50Hz 2.0KW |

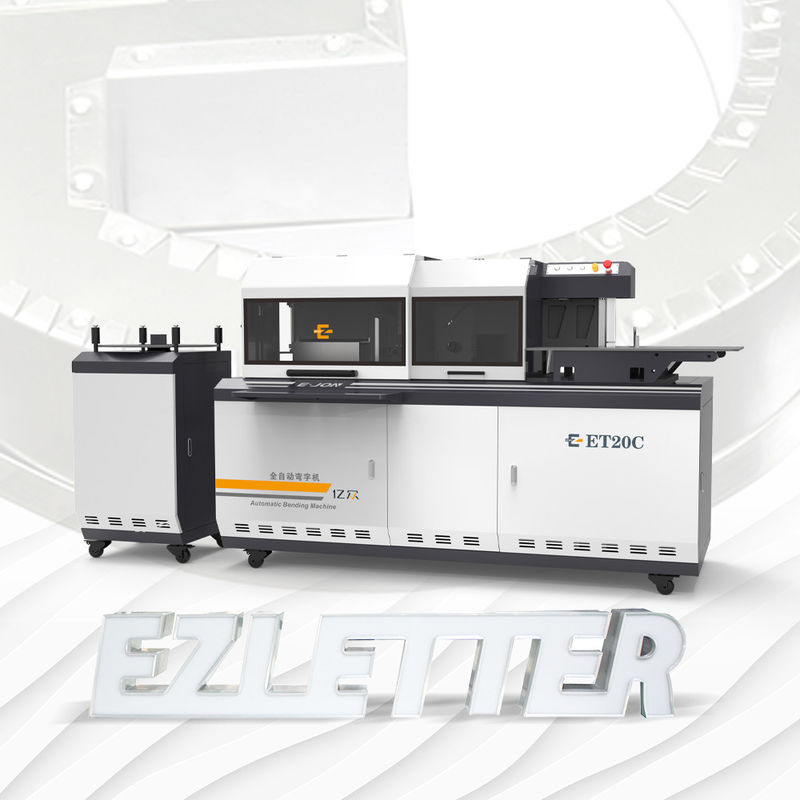

EJON ET20C is a versatile cnc bending machine for channel letters, which combines auto feefing, slotting, notching, flanging, cutting function in one machine. Due to its multi-function, fast speed, high accuracy and strong ability, it becomes one of the most popular machines in advertising industry and well received by customers from many countries and regions, such as Russia, India, South Africa, Kenya, USA, Canada, Middle East, etc. who pay more attention in high quality product!
YES, I am not cheap, because all the cost is spent on HIGH QUALITY MATERIAL , EXQUISITE WORKMANSHIP and DURABLE COMPONENTS, if you want to buy a machine that can achieve longlife use and save your money in long term,
No hesitate to chat with me, CLICK HERE!
* Exclusive design for aluminum profile and aluminum plate bending with positive and negative double side slotting methods.
* The slotting can be at any angle.
* The customized feeding roller ensures the feeding precision, meanwhile, does not scratch the material.
* The well designed bending mechanism improves the molding degree.
* The independent lifting pallet can fit all sizes of aluminum.
SPECIFICATIONS | ||||||
Feeding system | Manipulator alternately feeding system | |||||
Slotting System | Plane cutter | |||||
Bending System | Double blades alternate bending system | |||||
Machine Weight | 800kg | |||||
Min. U | 20mm | |||||
Package Size | 2200mm*1800mm*600mm 660mm*660mm*1110mm | |||||
File Format | Dxf. | |||||
Min. Bending Angle | R6 | |||||
Air Supply | 0.6m3/min | |||||

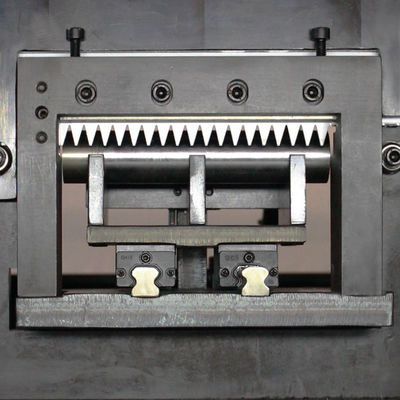

* The material clamps are casted which can avoid scratching the material and improve the feeding holding.
* Using air pressure to press the material, avoid material uneven and ensure the smooth feeding.

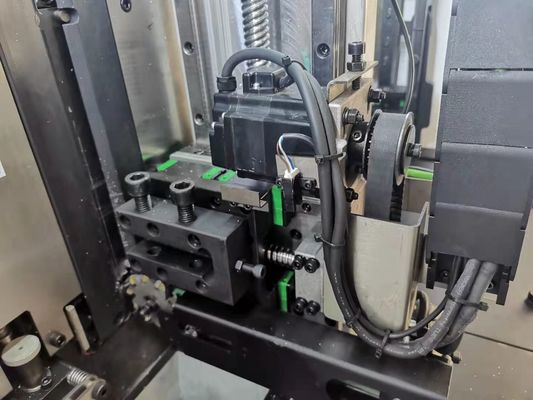

* The double ball screw is matched with nylon gear transmission for precise positioning, which greatly improves the feeding speed and stability of the machine.
The bending part adopts structral casting, integral found to ensure the stability of high speed bending.

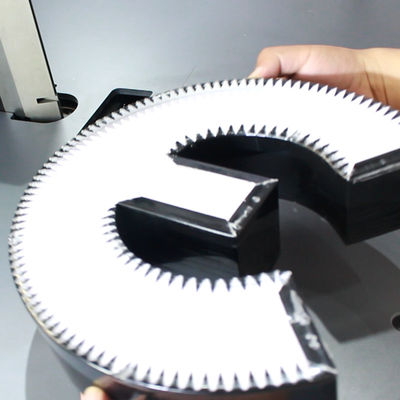

* The notching and flanging are controlled by servo system, which is of high precision, fast speed, strong ability.
* Equipped with debris storage box, pollution-free, more environmentally friendly.
On the basis of existing bending machine, this automatic cutting function greatly saves labor and time cost, gets better effect and safer to operate, finally helps saving your money!
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Engineers available to service machinery overseas.
* Machine operation video and manual.
* Online support and video call support.
