The casting on Clamping increases the grasping force, meanwhile does not scratch the material
Product Details:
|
Condition: | New | Video Outgoing-inspection: | Provided |
---|---|---|---|
Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
Warranty Of Core Components: | 1 Year | Core Components: | Motor |
Material / Metal Processed: | Stainless Steel,Galvanized Sheet,Aluminum Plate | Automation: | Automatic |
Warranty: | 1 Year | Weight (KG): | 900 |
Key Selling Points: | High-accuracy | Applicable Industries: | Printing Shops, Advertising Company, Manufacturing Plant |
Showroom Location: | Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea | Product Name: | Channel Letters Bender Machine |
After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Slotting Method: | Milling Plane Cutter |
Bending Method: | Double Tools Alternate Bending | Packing: | Wooden Box |
Material Thickness: | 0.4~1.2mm | Material Width: | 20-750mm |
Processing Material: | Stainless Steel, Galvanized Plate,aluminum Plate | Control System: | 4 Servo Axis Control System |
Raw Material: | Sheet / Plate Rolling |

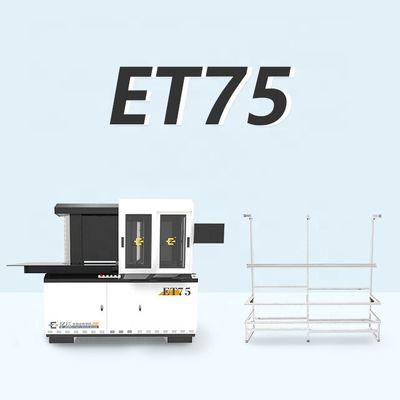

Ejon ET75 is an industrial-grade full automatic bending machine.
High strength bending tool with wear-resistant surface, adopts high strength alloy material, high temperature quenching process, with high hardness, high strength, high wear resistance and other characteristics.
Oil mist cooling function is adopted in the slotting process to ensure smooth slotting and extend the service life of the plane cutter.
The precision mechanical bending system performs even better when processing thick plates and high-edge materials. The software is easy to operate, and the processing graphics do not need to modify the nodes, which greatly improves the work efficiency. It is the preferred bending machine for high-edge letters.
SPECIFICATIONS | ||||||
Feeding system | Double ball-screw alternate feeding system | |||||
Slotting System | Milling plane cutter | |||||
Bending System | Double blade alternate bending system | |||||
Suitable Material | Stainless steel, Galvanized steel, Aluminum plate | |||||
Material Height | Stainless steel、Galvanized steel、Aluminum plate: 20~750mm | |||||
Material Thickness | 0.4~1.2m | |||||
Accuracy | ±0.1mm | |||||
Min. Bending Angle | R15 | |||||
File Format | Dxf.Plt. | |||||
Power | AC220V、50Hz、4.0Kw | |||||
Control System | 4 axis control system (4 axis servo control) |
1) The bending adopts high power servo motor, high torque, high forming degree, and high-strength ball screw to meet the high load working condition.
2) The bends with wear-resistant surface, adopts high-strength alloy material, high-temperature quenching process, achieves high hardness, high strength, high wear resistance.
3) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.
The casting on Clamping increases the grasping force, meanwhile does not scratch the material
The double ball screw of feeding design ensure the feeding speed and precision as well as stability
Double-cutter slotting, using plane cutter for Galvanized sheet, Stainless steel and Aluminum plate.
The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.
To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.
The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.
The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
