EJON ET20C CNC Auto Signs Letter Trimcap Aluminum Notching Flanging V-Cutting Channel Letter Bending Machine

Overview

Details

Place of Origin: Tianjin, China                                                                          Brand Name: EJON

Conditon: New                                                                                                  Model Type:  ET20C              Suitable Material: Stainless steel,Galvanized plate,Aluminum plate               Automaic: Automatic

After-Sales Service: Video/Oline support, Engineers Service                          Power: CNC

Slotting Method: Plane cutter                                                          Slotting Trip: 20-200mm

Bending Method: Double Blade Alternating Bending System                       Warranty of core component: 1 Year

Certification:  CE   SGS                                                                              Machine weight:: 800kg

Supply Ability

Supply Ability:100 Sets/Year



Packing &Delivery

 Packaging   Details: Fumigated  Wooden Box

 Port                        :Tianjin  Port Or other China Port

 Delivery Time        : 10-20  Working Days



Product   Description

      EJ0N ET20C   full-automatic notching and flanging bending  machine adds the function of

automatic  notching and cutting for flat metal material on the basis of existing bending machine.

The  notching and cutting are controlled by servo system,which is high precision,fast speed, strong  stability.The software operation is simple, the processing graphics need not modify

the node,greatly improve the work efficiency,is the prefered model of high edge characters.

     Manipulator alternated  feeding structure,the material clamps are casted which can avoid

scratching the material,meanwhiles  improving the feeding holding.Using air pressure to

press the material,avoid material uneven and ensure the smooth feeding.The double ball

 screw is matched with nylon gear transmission  for precise positioning ,which greatly  improves

the feeding speed and stability of the machine.

    Adopting plane cutter can slot all kinds of materials.The linear guideway is matched  with

the ball screw,with 750W high-power servo motor,greatly improve the feeding speed and

stability.High strength alloy cutters are used for slotting knives,each knife has 8 angles,no

need to sharpen,greatly improve the working efficiency.

   Double blading alternating structure,the curved knife structure cast  by ductile iron,good

shock absorpton,high structural strength,reduced number of parts splicing,high-power servo

motor, high-speed bending work under the bending mechanism,the bending mechanism is

permanently deformed,which effectively improves the positioning accuracy and the stability

of the high-speed bending.









SPECIFICATION
SYSTEM	6 Axis control system(4  axis  servo control)
Feeding System	Manipulator alternated feeding system
Slotting System	Plane cutter slotting system
Bending   System	Double blade alternating bending system
Suitable Material	Stainless steel, Galvanized plate, Aluminum plate
Slotting Height	20-200 mm
Material Thickness	0.4-1.0 mm
Control System	6 Axis control system (4 axis servo  control)
Min Bending Angle	R6
Min. U	20 mm
Distance of internal&external  angles	≥10 mm
Distance of bending origin	3 mm
V-cut method	Servo motor control
V-cut angle	30° /120°
File  Format	DXF.
Power	AC220 V, 50 Hz, 2.0 kW
Air Supply	0.6 m3/min
Package Size	1710(length)*780(width)*1600(height)mm
Working Space	3200(length)*1100(width)*1500(height)mm
Machine Weight	800 kg



ET20C  Machine part details

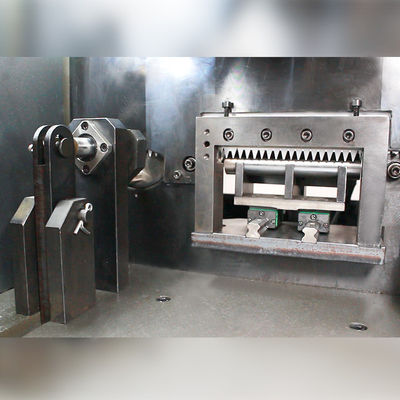

                                                                                                   Feeding Parts :The feeding structure adopts double ball screw

with nylon gear transmission, ensuring smooth feeding and accurate positioning, greatly improving the feeding speed and

stability of the machine.





Notching &Flanging Parts: The notching and flanging are controlled by servo system, which has high precision, fast speed and strong stability. Equipped with debris storage box, non-pollution, more environment-friendly.











Slotting Parts: Adopts  750 W  high-power servo motor, High strength alloy cutters are used for slotting knives, each knife has 8 angles, no need to sharpen, greatly improve the working efficiency.































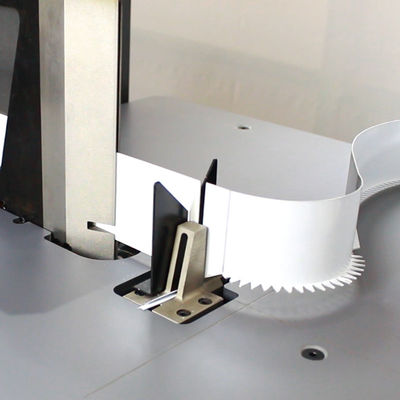

Bending Parts: Double blades alternating bending system adopts 750 W  servo motor, with the characteristics of fast response, stable operation, which effectively improves the system’s rapidity and stability.















Cutting Parts: After the production, the machine automatically

cuts raw material, which makes the processing more efficient and safer.





















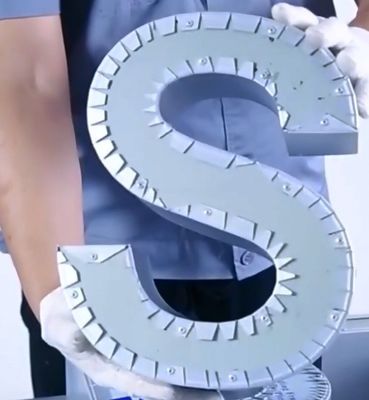

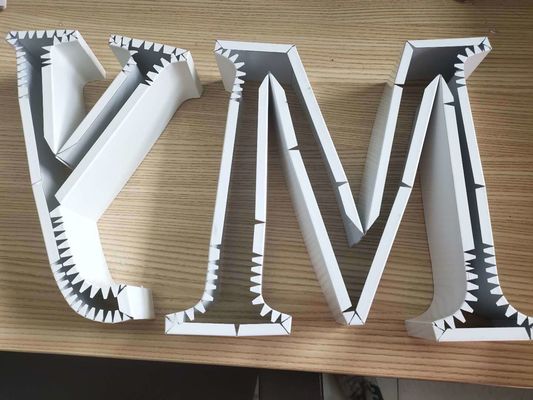

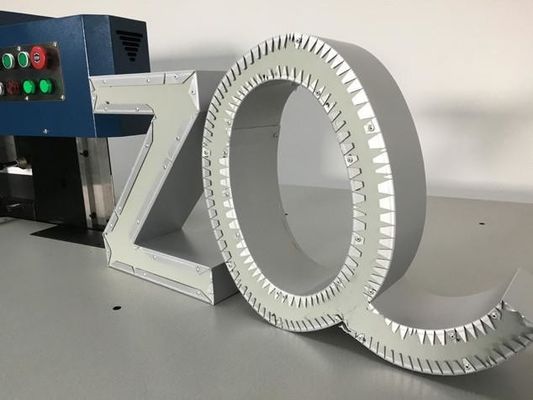

Sample  Showing





























































How to learn machine operate



1. Operation  Manual U disk

   Provide  U  disk with machine which have detail  specific english operational manual and videos.



2. Network  Service

   Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online  service.



3.  Factory Visiting

   Welcome customer to visit our factory  to learn how to operate the machine.









Supporting  Facility















Computer                                   Pump                                        File  Format

To  use the device,you need to       The use of equipment should         The software of bending

install the control card in your          be equipped with                             machine is self-developed.  computer and then  connect to         AIR  compressor,we suggest        Import the format supports

the bending machine and install       that the selection of more               Dxf.Plt.Ai.We recommend

the software  computer.                    than 4kw,the gas flow  is                using Coredraw or adobe

Configuration:XP system or            0.6m3/Min                                       illustrator to complete

window7 32-bit system,and                                                                 the file after the export file

requiresa pcl card slot to                                                                     to Dxf.Plt.Ai  format.Then

install the control  card.                                                                      open the operating software,

                                                                                                                select the document
