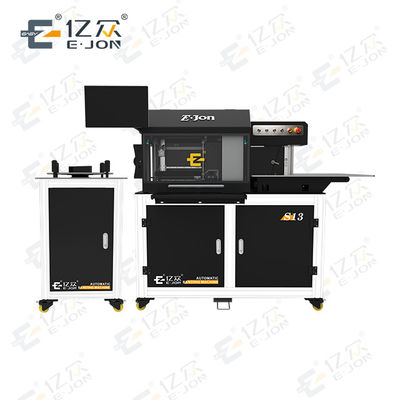

Ejon S13 Drawing Wire CNC Bending Machine for Stainless Steel Auto Channel Letters

Large Image : Ejon S13 Drawing Wire CNC Bending Machine for Stainless Steel Auto Channel Letters

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce, SGS

Payment & Shipping Terms:

Price:	$12,000.00/sets 1-9 sets
Packaging Details:	The export wooden box
Supply Ability:	8800 Set/Sets per Year

Contact Now

Ejon S13 Drawing Wire CNC Bending Machine for Stainless Steel Auto Channel Letters

Description

Condition:	New	Material / Metal Processed:	Aluminum, Stainless Steel, Stainless Steel,Galvanized Sheet,Aluminum Plate,Aluminum Profile
Automation:	Automatic	Year:	2020
Warranty:	1 Year	Weight (KG):	500
Key Selling Points:	Automatic,double-slotting Tool,double-bend Alternate Bending Settings	Applicable Industries:	Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Turkey, Thailand, South Korea, UAE, Japan	After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Online Support, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support
Extra Services:	Slotting & Notching	Power:	CNC
Machine Type:	Roller-Bending Machine	Raw Material:	Sheet / Plate Rolling
Product Name:	Channel Letter Bender Machine	Function:	Auto Feeding+bending+slotting
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Local Service Location:	Egypt, Turkey, India, Thailand, Japan, South Korea, UAE
Port:	China Port

Product Description

Product Application

Ejon S13 drawing wire stainless steel auto channel letter bending machine manufacturers cnc bending machine with slotting

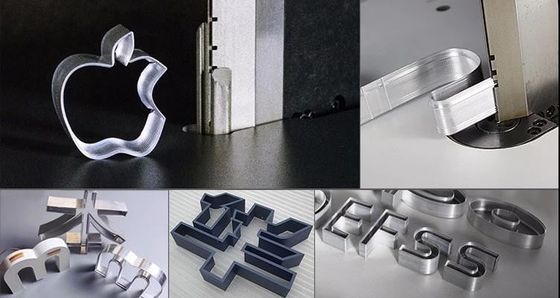

Multifunction channel letter bending machine,which is equipped with fully servo control system. The specially designed extra long alternate feeding mechanism and the double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision. It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding device
Slotting System	Plane cutter and alloy milling cutter system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	Stainless steel、Galvanized steel、Aluminum plate:10~130mm/ Aluminum profile:20-100mm
Material Thickness	0.4-1.2mm
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V、50Hz、3.0Kw
Air Supply	0.6m3/Min
Total Weight	500Kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Panasonic servo control system,SMC pneumatic component,chrome-faced,computer and air pump.

Detailed Images

Machine Parts

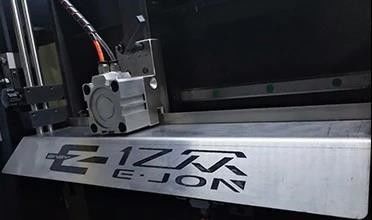

The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

Main Features

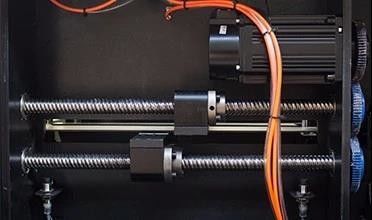

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

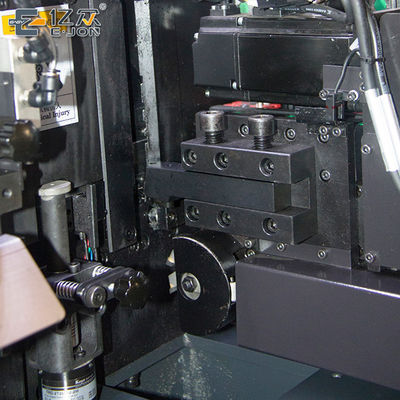

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

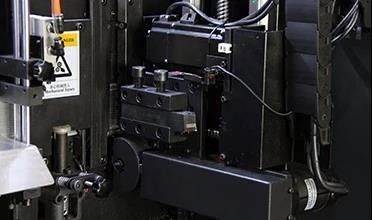

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	460KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
