Automation Ejon W40 Automatic Channel Letter Bending Machine for Aluminum Letter Signs

Large Image : Automation Ejon W40 Automatic Channel Letter Bending Machine for Aluminum Letter Signs

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon

Payment & Shipping Terms:

Price:	$13,000.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	5000 Set/Sets per Year

Contact Now

Automation Ejon W40 Automatic Channel Letter Bending Machine for Aluminum Letter Signs

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminum, Stainless Steel, Galvanized Plate	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	750
Key Selling Points:	High-accuracy	Applicable Industries:	Manufacturing Plant, Advertising Company, Construction Works , Building Material Shops
Showroom Location:	Egypt, Canada, United States, Germany, Saudi Arabia, Spain, Thailand, South Korea	Product Name:	Channel Letters Bender Machine
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Slotting Method:	Milling Plane Cutter
Bending Method:	Double Tools Alternate Bending	Packing:	Wooden Box
Material Thickness:	0.4~1.8mm	Material Width:	20-400mm
Function:	Auto Feeding+bending+slotting	Processing Material:	Stainless Steel, Galvanized Plate,aluminum Plate
Control System:	4 Servo Axis Control System	Port:	Tianjin Port

Product Description

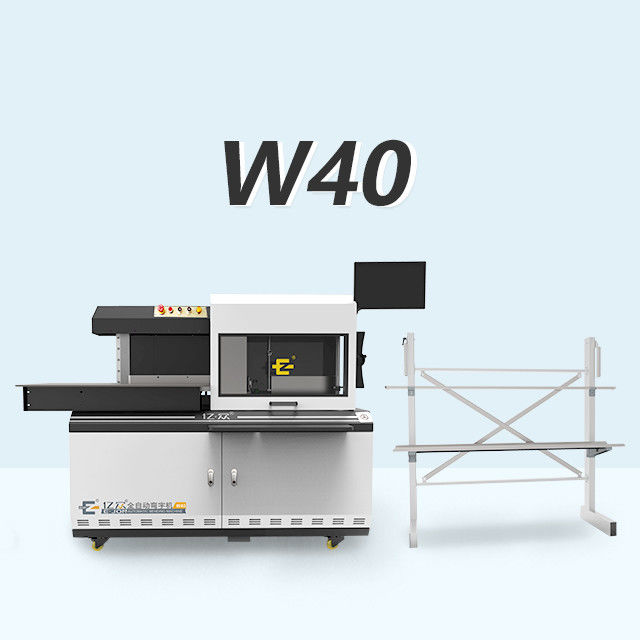

Ejon W40 automatic high quality channel letter bending machine for aluminum letter signs

Ejon W40 is a wide edge heavy automatic bending machine.

W40 adopts CNC turning tool as slotting tool, which has high strength and low loss. Each knife has 8 angles, no need to sharpen, greatly improve the working life. The processing is low noise and no dust, ensuring smooth slotting effect.

Adopting the progressive clamping feeding design, the feeding torque is large and the precision is high, which effectively avoids the waste of materials and fundamentally saves the cost. Through the perfect combination of feeding clamp, high-quality ball screw and linear guide, high-power servo drive, it can meet the high load working condition, and cooperate with the material pre-straightening system, eliminating the feeding slipping and deformation of the sheet during the feeding process.

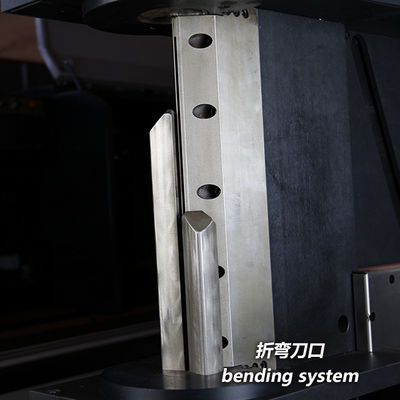

The precision mechanical bending system performs good when processing thick plates and high-side materials. The software is easy to operate, and the processing graphics do not need to modify the nodes, which greatly improves the work effciency. It is the preferred bending machine for high-side words.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Milling plane cutter
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	Stainless steel、Galvanized steel、Aluminum plate:20~400mm
Material Thickness	0.4~1.8mm
Accuracy	±0.1mm
Min. Bending Angle	R15
File Format	Dxf.Plt.
Power	AC220V、50Hz、4.0Kw
Control System	4 axis control system (4 axis servo control)

Main Features

1) The bending adopts high power servo motor, high torque, high forming degree, and high-strength ball screw to meet the high load working condition.

2) The bends with wear-resistant surface, adopts high-strength alloy material, high-temperature quenching process, achieves high hardness, high strength, high wear resistance.

3) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

Detailed Images

Machine Parts

The casting on Clamping increases the grasping force, meanwhile does not scratch the material

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet, Stainless steel and Aluminum plate.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

* Size: 1880*780*1850mm

* Weight: 800KG

* Packaging details: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
