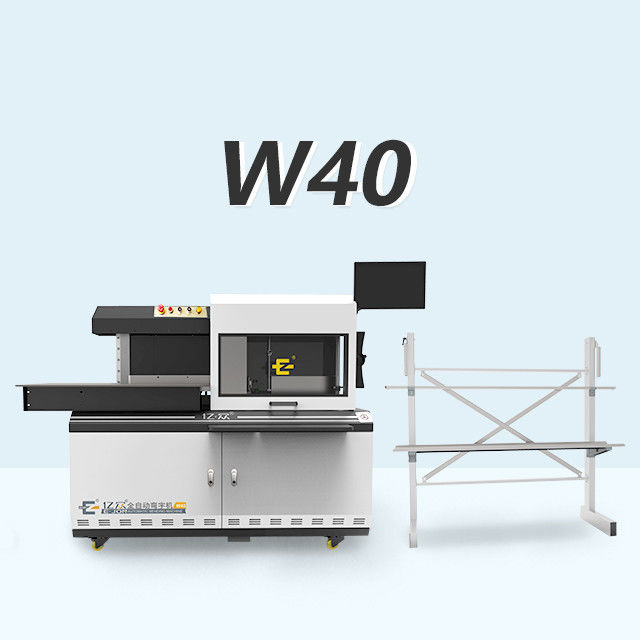

Milling Plane Cutter Ejon W40 Automatic Channel Letter Bending Machine for Advertising

1) The bending adopts high power servo motor, high torque, high forming degree, and high-strength ball screw to meet the high load working condition.

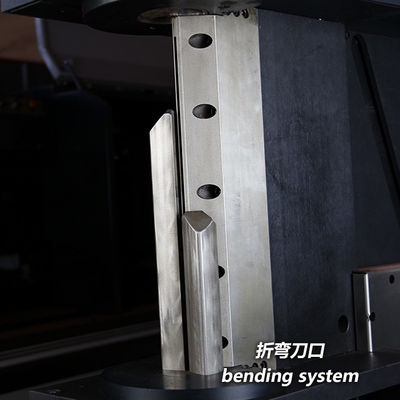

2) The bends with wear-resistant surface, adopts high-strength alloy material, high-temperature quenching process, achieves high hardness, high strength, high wear resistance.

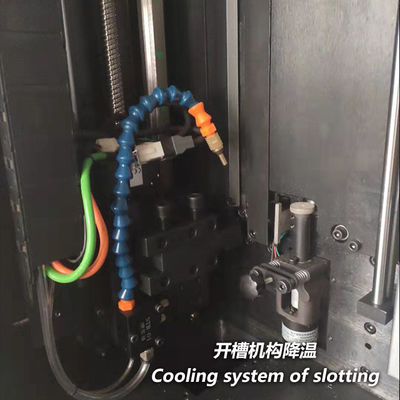

3) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
