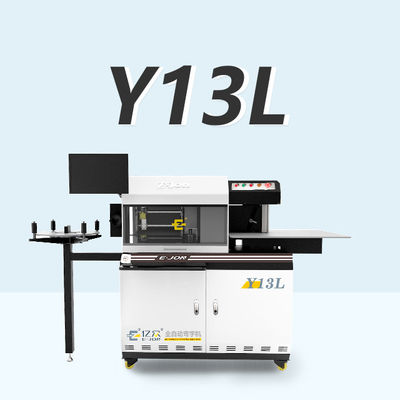

CNC Channel Letter Bending Machine for Steel and Aluminum 3D Letters Making Press Brake

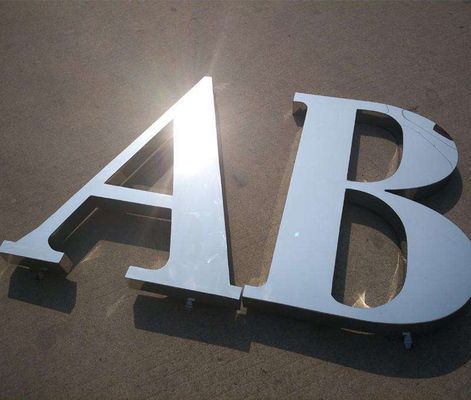

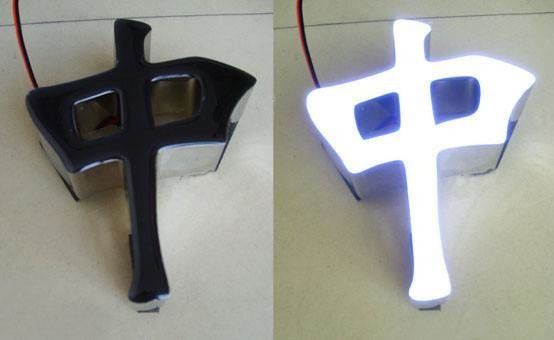

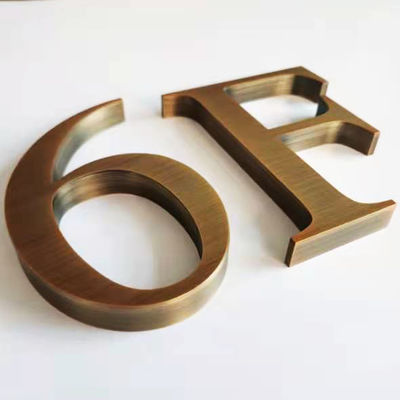

Sample Display

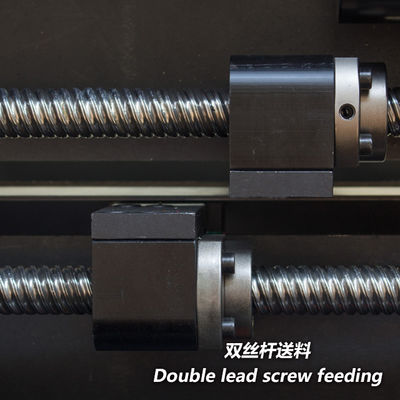

1) The feeding struture adopts double ball screw matched with nylon gear transmission ensuring the precise positioning, smooth feeding, greatly improving the feeding speed and stability.

2) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

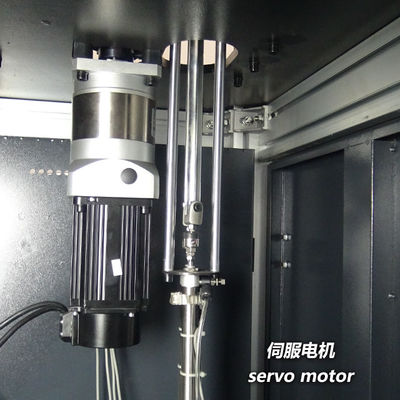

3) The slotting and bending adopt high-power servo motor which accurate positioning, fast response, stable operation, and effectively improve the system's rapidity and stability.

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
