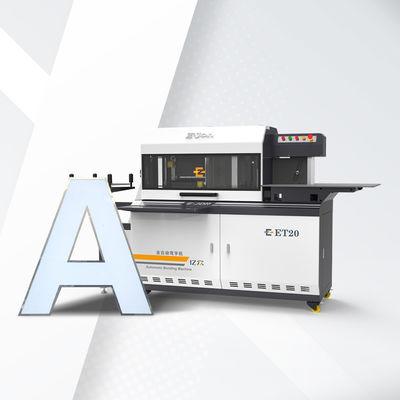

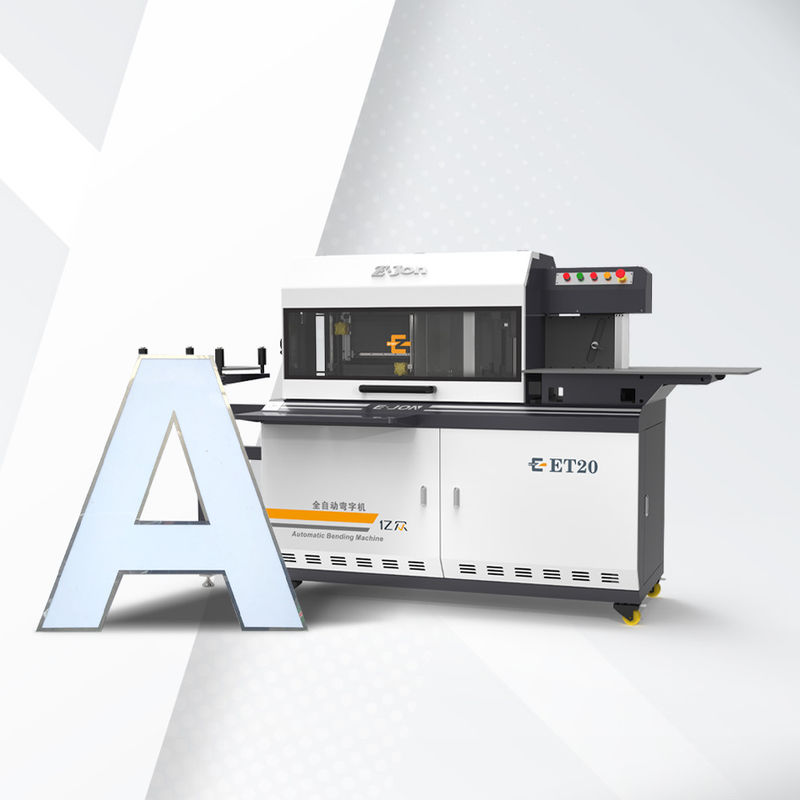

High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter

High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter

Large Image :  High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter

Product Details:
Place of Origin: Tianjin, China
Brand Name: ET20
Payment & Shipping Terms:
Price: $13,090.00/sets 1-2 sets
Packaging Details: The export wooden box
Supply Ability: 5000 Set/Sets per Year
Contact Now

High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Sale Product 2023
Warranty Of Core Components: 1 Year Core Components: PLC, Motor, Servo System, Bending Tool
Material / Metal Processed: Aluminium Alloy, Aluminum, ALLOY, Brass / Copper, Stainless Steel, Carbon Steel Automation: Automatic
Warranty: 1 Year Weight (KG): 700
Key Selling Points: Multifunctional Applicable Industries: Advertising Company
Showroom Location: Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Saudi Arabia, India, Russia, Spain, Thailand, South Korea, Sri Lanka, Ukraine, Malaysia, Arabia Function: Bending
Material Thickness: 0.4-1.2mm Bending System: Double Blade Alternate Bending System
Available Material: Flat Aluminum Coil Material: Stainess Steel
Material Width: 20-200mm Slotting System: Milling Wheel Cutter
Control System: 7 Axis Control System File Format: Dxf.PIt.Ai
Slotting: Sides Slotting Port: Tianjin Port

High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 0
Product Overview

EJON ET20 Advertising Luminous Sign Shop 3D Logo Making
Channel Letter Bending Machine
ماكينة الانحناء للحروف,бортогибочный станок для букв,dobladora de letras de canal

Mechanical hands circulating clamping feeding structure adopts structural casting to improve the feeding holding and avoid scratching the material. Using cylinder to control the feeding supporting, effectively eliminate the phenomenon of warping in the feeding process, to ensure feeding smoothly. Double ball screw with nylon gear transmission, accurate positioning, greatly improve the feeding speed and stability of the machine.

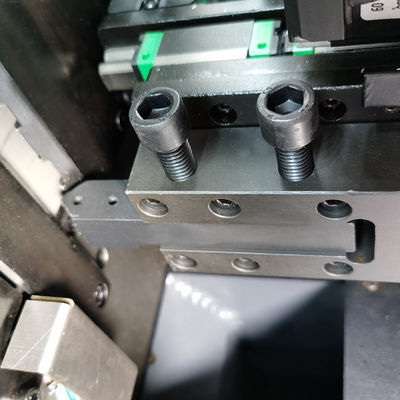

Adopts double cutter independent slotting structure, easily deal with various materials, imported linear guide rail with ball screw, combined with high-power servo motor, to ensure the stability and consistency of slotting. The slotting tool adopts imported high-strength alloy plane cutter, each cutter has 8 edge angles, no need to sharpen the cutter only change different angles, prolong the service life and greatly improve the processing efficiency.

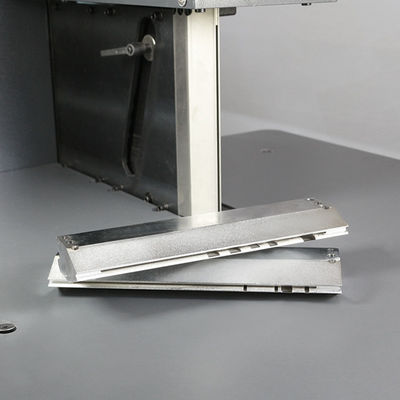

Double bending tools alternating bending structure, Adopting the bending structure cast by ductile iron, characterized by good vibration absorption and high structural strength, which reduces the number of parts splice. Configuration with high-power servo motor ensures the high-speed bending work, bending mechanism permanent deformation, effectively improve the positioning accuracy and high-speed bending stability.
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 1
Powerful and Functional Experience
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 2
Simple and Elegant Appearance
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 3
Precise and Durable Characteristic
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 4
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 5
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 6
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 7
1. Easily deal with various materials, like stainless steel, galvanized plate, aluminum plate and profile, etc,.

2. Easily produce different kinds of letters, like Seiko letter, Resin letter, Edged Aluminum letter, Brimless letter, etc,.

3. Easily mastered and manipulated, for a novice, 0.5 day to learn and use, 1 day to operate independently, and 3 days to master.

4. Easily save manpower and time cost.

5. Easily boost the production and perfect the letters' appearance.
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 8
PRODUCT SPECIFICATIONS
No
Item
Parameter
1
Slotting method
Plane cutter/Milling cutter
2
Bending method
Double-bends alternate bending
3
Package size
1410*780*1600mm
4
Working space
2400*1100*1500mm
5
Suitable material
Stainless steel galvanized sheet  aluminum plate and profile
6
Slotting trip
20-200mm
7
Material thickness
0.4-1.2mm
8
Min bending angle
R6
9
Control system
7 axis control system (3  servo axis control)
10
File formate
Dxf.Plt.Ai
11
Power
AC220.50Hz.2.0KW
12
Weight
700KG
PRODUCT CONFIGURATION
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 9
High-Power Servo Motor
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 10
Double Cutter Independent Slotting
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 11
Ductile Iron Casting Structure
Company Profile
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 12
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 13
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 14
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 15

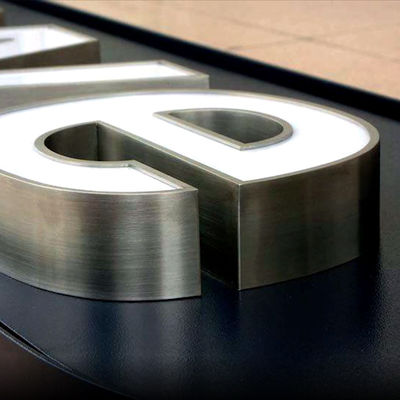

Sample Letters Show
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 16
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 17
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 18
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 19
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 20
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 21
Customer Feedback
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 22
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 23
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 24
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 25
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 26
Exhibition
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 27
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 28
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 29
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 30
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 31
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 32
High Precision EJON ET20 CNC Channel Letter Bending Machine with Milling Wheel Cutter 33
FAQ
How to learn machine operate
1. Operation Manual U disk
Provide U disk with machine which have detail specific English operational manual and videos.

2. Network Service
Through Wechat, Whatsapp, Skype, E-mail, Team viewer provide online service.

3. Factory Visiting
Welcome customer to visit our factory to learn how to operate the machine.
Our service
1. Whole machine with one year warranty.
2. Free training course at our plant or on line.
3. After the warranty period, we will provide the consumable parts at an agency price when you need replacement.
4. Before machine delivery, we will install all parts and test machine for you. if confirmed there're no problem, then we'll deliver machine.
5. After machine arrived, you just need connect power supply, software etc, it's more simple and easier for you. If you're worried, we can take a teaching video for you at that time. By the way, during the production of machine, we also can share the process with you.
6. As for training, firstly we'll take more teaching video for you, and we also can remote control, most important, if you need, we can provide our technicians for on-site training and on-site teaching. And if you have time, welcome to visit our company, you can operate and learn the machine by yourself.
7. After machine shipped, I'll prepare some documents, like B/L, Packing list, Commercial invoice, Sales contract, CE Certification for helping you pick up your machine.
