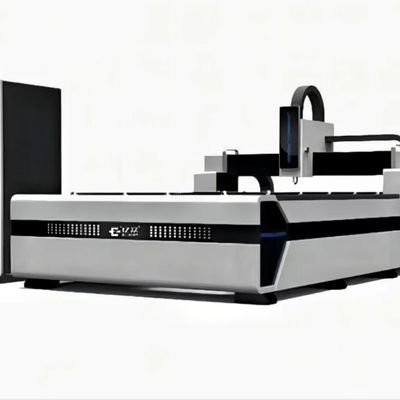

YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet

YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet
YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet

Large Image :  YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet

Product Details:
Place of Origin: China
Payment & Shipping Terms:
Price: $25,800.00/sets 1-2 sets
Packaging Details: The export wooden box
Supply Ability: 5000 Set/Sets per Year
Contact Now

YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet

Description
Application: LASER CUTTING Applicable Material: Metal
Condition: New Laser Type: Fiber Laser
Cutting Area: 1500*6000 Cutting Speed: 50m/min
Laser Source Brand: Chuangxin Servo Motor Brand: FUJI
Guiderail Brand: THK Weight (KG): 500 KG
Key Selling Points: Automatic Warranty: 1 Year
Applicable Industries: Construction Works , Advertising Company Core Components: Motor, Fiber Laser
Mode Of Operation: Pulsed Configuration: 3-axis
Products Handled: Sheet Metal Feature: Water-cooled
Cutting Materials: Stainless Steel Carbon Steel Laser Tube: Chuangxin Shenzhen
Working Area: 1500mm*6000mm Application Meterial: Aluminmum
Working Voltage: AC220V 1ph 50Hz Laser Cutting Head: Swizterland
Working Table: Honeycomb Table Port: Tianjin Port

Product Overview

ABC15-E 1.5 Ton Excavator

Professional laser optical system and imported lenses, stable and reliable; Efficient programming and control system, easy to learn and humanized, compatible with various CAD drawing formats, automatic cutting path, matching and saving processing time; The product has low energy consumption and low use cost; The equipment has high stability, simple and convenient maintenance and low maintenance cost; No mold is needed, flexible processing can meet the processing requirements of various special-shaped workpieces; 1.High cutting efficiency, high cutting quality and no noise; High speed, high efficiency, the cutting speed of sheet can reach 30 meters per minute; Good cutting edge quality, small deformation, smooth and beautiful appearance; Japan's high-precision servo motor, guide rail and Taiwan Province's original rack and pinion ensure the processing efficiency and precision, while greatly improving the stability and reliability of equipment operation.
2. Applicable materials and industrial applications Applications: Metal cutting, electrical switch manufacturing, aerospace, grain machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special vehicles, household appliances manufacturing, tool processing, IT manufacturing, petroleum machinery manufacturing, food machinery, diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other machinery manufacturing and processing industries. Material: It is specialized in cutting various medium and thin metal plates, high-quality 0.4-15mm carbon steel plates, stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum-zinc plated plates and other metal materials.
3. Laser cutting head Professional cutting head of fiber laser is selected, which has the functions of Z-axis follow-up and high-pressure cutting. The height-following sensing cutting head adopts capacitive sensing monitoring, which provides stable and fast automatic adjustment of cutting height. Various nozzle matching designs can make it suitable for lenses with almost any focal length. With its confocal characteristics, its fixed-length body processing head can be equipped with optical lenses with different focal lengths. The focal length and nozzle height can be flexibly adjusted, including the coaxial adjustment of X-Y lens and nozzle.
4. Safety protection system The equipment is a high-power laser cutting equipment, and the laser radiation does harm to human body to some extent. Therefore, the safety protection measures of the whole system are extremely important. Laser protection part The laser part is marked with an icon, which indicates that there is laser output there, so as to avoid the harm caused by direct laser to human body; The outer shell of the laser is grounded to avoid personal injury caused by leakage of the equipment shell; Equip operators with appropriate laser protective glasses, which must be worn during the whole operation process; Before operating the equipment, the protective equipment must be checked for wear; When the equipment is powered on, it is not allowed to look directly at the laser head with eyes at any time; The laser equipment is equipped with an emergency stop switch, which can immediately stop the laser and power off the laser in case of emergency; When the laser is running, three-color status indicator lights are provided, which can display the operation status of the laser. External transmission optical fiber protection part In the external transmission optical fiber part of the workstation, high-quality imported slide pulley and limiting device are selected to fix and guide the laser optical cable; The transmission optical fiber is protected by the protective sleeve of special laser protective material to prevent laser leakage; The transmission optical fiber protective sleeve is equipped with laser leakage protection. If the optical fiber is broken, the laser leakage sensor can monitor the laser leakage. If the leakage is found, it will immediately transmit a signal to the control center, which will stop the laser equipment from emitting light and give an alarm. 5. Main configuration instructions: Note: According to the actual delivery situation, some configurations are slightly changed.
FEATURES AT A GLANCE

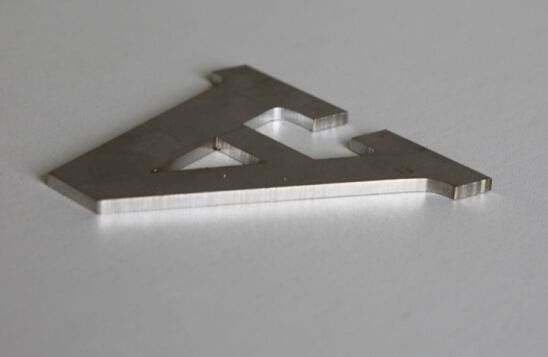

YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet 0

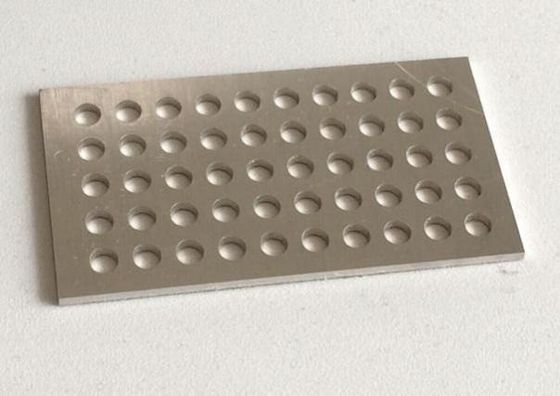

YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet 1
Right elevation

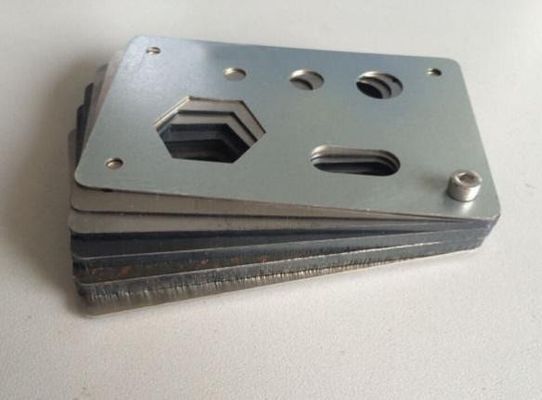

YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet 2
Left elevation

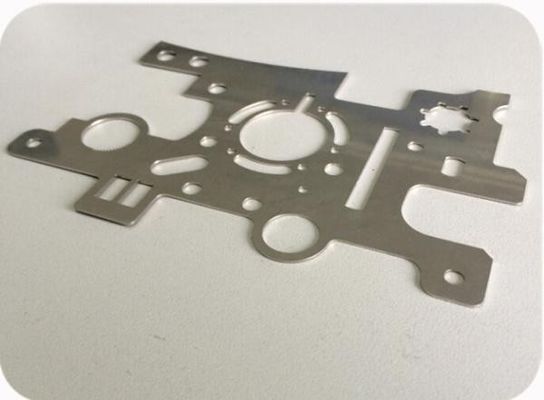

YZ-RC1500W Sheet Metal Cutting Machine for Stainless Steel and Carbon Steel at Outlet 3
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
Laser type
Fibre laser
2
Laser woking medium
Fibre
3
Laser wave length
1060nm-1080nm
4
Output rating
1500W
5
BPP
1.27
6
Shaft entry stroke
1500mm
7
Y-axis stroke
6000mm
8
Z-axis stroke
220mm
9
Effective cutting range
1500*6000mm
10
Positioning accuracy
±0.05mm/m
11
Repetitive  positioning accuracy
±0.03mm/m
12
Max idle speed
50m/min
13
Power suply  rated
Tow-phaseAC220V 50Hz
14
Equipment power consumtion
16KW
15
Total power protection
IP54
16
Outline dimension
7500mm*2400mm*1800mm
