High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon

High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon

Large Image :  High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon

Product Details:
Place of Origin: Tianjin, China
Brand Name: Ejon
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: $24,800.00/sets >=5 sets
Contact Now

High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon

Description
Application: LASER CUTTING Applicable Material: Metal
Condition: New Laser Type: Fiber Laser
Cutting Area: 1500mm*3000mm Cutting Speed: 30 M/min
Graphic Format Supported: DXF Cutting Thickness: 0.4-7 Mm
CNC Or Not: Yes Cooling Mode: WATER COOLING
Control Software: Cypcut Laser Source Brand: RAYCUS
Laser Head Brand: Raytools Servo Motor Brand: FUJI
Guiderail Brand: THK Control System Brand: Cypcut
Weight (KG): 7800 KG Key Selling Points: Low Maintenance Cost
Warranty: 1 Year, 1-Year Machine/2 Years Laser Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction Works , Advertising Company, Other
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Core Components: Laser
Mode Of Operation: Continuous Wave Configuration: 3-axis
Products Handled: Sheet Metal Feature: Water-cooled
Product Name: Fiber Laser Metal Cutting Machine Laser Power: 1000~10000 W
Laser-type: Continuous Fiber Laser Cutting Materials: Metal Materials
Packing: Wooden Box Effective Cutting Range: 1500 Mm*3000 Mm
Cooling System: Water Chiller Cooling System Max Cutting Speed: 50 M/min
Positioning Accuracy: ±0.05 Mm/m

Company Profile
Product Overview

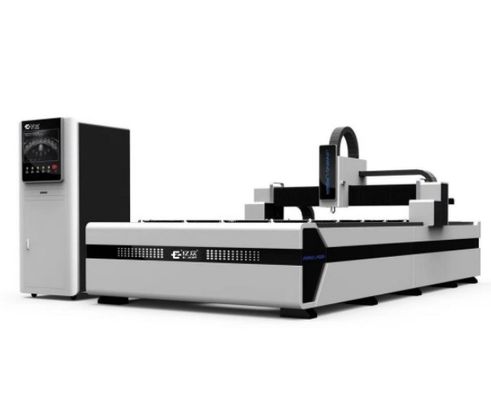

Metal Fiber Laser Cutting Machine

YZ-RC1500W Fiber laser cutting machine adopts gantry double driving structure, which is characterised by high-speed positioning of the equipment, fast dynamic response and good stability. The transmission components such as reducer, guide rail and rack and pinion are of world famous brand, which highly guarantees the longer service life of the machine.
Application industries: metal cutting, electrical switch manufacturing, aerospace, grain machinery, textile machinery, engineering machinery, locomotive manufacturing, agricultural and forestry machinery, elevator manufacturing, special automobile, household appliance manufacturing, tool processing, it manufacturing, petroleum machinery manufacturing, food machinery, diamond tool welding, gear welding, metal material surface treatment, decorative advertising, laser external processing services and other mechanical manufacturing and processing industries.
Applicable materials: medium and thin metal plates, such as carbon steel plates, stainless steel plates, aluminum alloy plates, galvanized plates, electrolytic plates, silicon steel, titanium alloys, aluminum zinc plates and other metal materials.

High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 0
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 1
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 2
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 3
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 4
PRODUCT SPECIFICATIONS
Item
Data
 Item
Data
Laser type
Fiber laser
X-axis stroke
1500 mm
Laser working medium
Optical fiber
Y-axis stroke
3000 mm
Laser wavelength
1060-1080 nm
Z-axis stroke
220 mm
Rated output power
1500 W
Power consumption of equipment
16 KW
Beam quality
(BPP,mm*mrad)
1.27
Total power protection level
IP54
Effective cutting range
1500 mm×3000 mm
Rated power parameters
220 V, 50 Hz
Positioning accuracy
±0.05 mm/m
Maximum idle speed
50 m/min
Repeat positioning accuracy
±0.03 mm/m
Overall dimensions
4500 mm*2400 mm*1800 mm
Processing Capacity
General cutting range: 0.4-15 mm carbon steel; 0.4-7 mm stainless steel; 0.4-4 mm aluminum plate

Detailed information:
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 5
PRODUCT CONFIGURATION
Mechanical  Motion  System
The bilateral driving structure of the beam includes the beam body and the bed.
The beam body driving mechanism and height compensation mechanism realize the horizontal and vertical movement of laser cutting head.
The limit switches at both ends of the travel in X and Y direction control the travel, and the elastic cushion pads at both sides are supplemented.
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 6
Control System
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 7
FUNCTION
*
Multi-language
**
Fast response surface following
***
Cutting back
****
Linear / arc interpolation and slit compensation
*****
USB and broadband interface
******
AC servo drive system and AC servo motor
   Fiber  Laser
Adopts the single core junction semiconductor pump laser as the pump source.
1. Excellent beam quality (BPP) with small divergence angle, constant BP in the full power range, and small spot can still be obtained with long focal length;
2. Special wavelength (1070nm), with the unique ability to cut high reflective materials such as aluminum, copper, brass etc;
3. The laser is transmitted through the optical fiber, basically without transmission loss;
4. Modular design, "Plug and Play", small in size, easy to install, no need to maintain the laser and beam transmission system.
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 8
MY ADVANTAGES:
Comparison of Different Types of Lasers
ITEM
FIBER LASER
CO2 LASER
Wall-plug efficiency
30%
10%
Consume power
1*kW
＞3*kW
BPP
＜2.5
6
Semiconductor pump life
＞100,000 h
NA
Cutting speed
4*
1*
Special gas demand
No need
Need
Maintaining
No need
Need
Flexible machining
Very suitable
Unsuitable
Environmental adaptability
Shock, oil and dust proof
Need shock absorption and sealing
Stability
Optimum
Good
Absorptivity - Steel
35%
12%
Absorptivity -aluminum
7%
2%
Parts to be replaced
Each semiconductor pump source is independent. The damage of one semiconductor does not affect the normal operation of the laser, but the power will be reduced.
The laser needs to be supplemented with gas and the reflector lens needs to be replaced.
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 9
   Laser  Cutting  Head
1. Automatic cutting height adjustment
2. Suitable for lenses with almost any focal length.
3. Focal length and nozzle height can be flexibly adjusted, including the coaxial adjustment of the lens and nozzle in
X-Y direction.
Quality Control


Strict Inspection &
 Keep Improving

Every small part has been tested by the quality department
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 10
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 11
Parallelism detection of guide rail and rack
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 12
Straightness measurement of guide rail, ensuring accuracy within 0.03 mm
SALES AND SERVICE NETWORK
High Speed Sheet Metal Fiber Laser Cutting Machine for Signage Letter Cutting by Ejon 13
FAQ
Q1：Are you factory?
A1：Yes. So you can get the machine at a preferential price.

Q2：How long is the warranty?
A2：One year for the machine, two years for the laser.

Q3：How about the after-sale service?
A3：We will respond to your demand within 24 hours via email or the platform's official communication tool, and send relevant documents or materials remotely, providing technical support online.
In the case of non-man-made damage to the machine, within the scope of free parts agreed by our both part, we will send free parts within 48 hours (except imported parts or customized parts).

Q4：Do you have any other related machine or spare parts to sell?
A4：Yes. According to the materials (metal, acrylic, plastic……) to be cut, the cutting machine has different types. You can tell us your demand and we'll recommend a suitable one to you.
We also sell channel letter bending machine, laser welder, automatic slotting machine, deburring machine, channel letter grinding machine and related spare parts and materials.
You can buy all of these at a lower price especially when you have made a big order or need a long-term supply.

Q5：If I have no experience working with this machine, does it easy to learn and how about the safety?
A5：You can easily learn how to use it by watching video or reading the manual, it takes very little time. Any question can be consulted online at any time.
Safety: 1) Laser part is marked with an icon to indicate the laser output at this place;
2) Outer shell of the laser is grounded to avoid personal injury caused by leakage of the equipment shell;
3) Laser protective glasses is equipped;
4) Emergency stop switch can stop and power off the laser immediately in case of emergency;
5) Transmission optical fiber is protected by special protective sleeve to prevent laser leakage;
6) Any laser leakage caused by the breaking of the optical fiber can be detected by the sensor, then the control center will stop the light output and send out an alarm.
