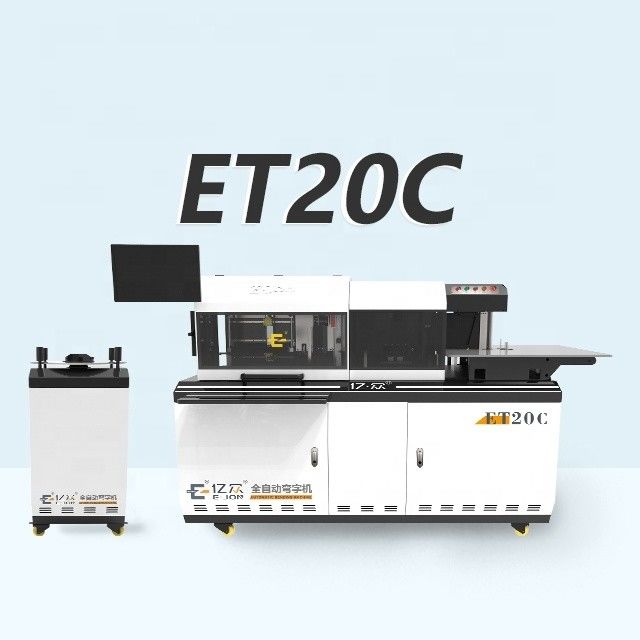

Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C

Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C

Large Image :  Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C

Product Details:
Place of Origin: Tianjin, China
Payment & Shipping Terms:
Price: $17,400.00/sets 1-2 sets
Packaging Details: The export wooden box
Supply Ability: 5000 Set/Sets per Year
Contact Now

Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: Hot Product 2020
Warranty Of Core Components: 1 Year Core Components: Motor, Bengding Tool, Tooth Cutting
Material / Metal Processed: Aluminum, Stainless Steel, Galvanized Plate Automation: Manual
Warranty: 1 Year Weight (KG): 800
Key Selling Points: Automatic Applicable Industries: Advertising Company
Showroom Location: Egypt, Canada, Turkey, United States, Pakistan, Mexico, Russia, Thailand, South Korea, Japan, Malaysia, Australia File Format: Dxf
Bending System: Servo Control Control System: 4 Axis Control System
Available Material: Galvanized Material Thickness: 0.4-1.0mm
Material: Stainless Steel Material Width: 10-200mm
Bending Method: Double Tools Alternate Bending Bending Radius: R6
Bending Material: Aluminum Sheet Port: Shanghai Port/Guangzhou Port/Tianjin Port

Product Overview

Introduction

ET20C full-automatic notching and flanging bending machine adds the function ofautomatic notching and cutting for flat metal materia e basis of existing bending machine.The notching and cutting are controlled by servo system, which is high precision, fast spe strong stability. Manipulator alternately feeding structure,the material clamps are castedwhich can avoid scratching the material, meanwhile improving the feeding holding.Using air pressure to press the material,avoid material uneven and ensure the smooth feeding. The double ball screw is matched with nylon gear transmission for precise positioning, which greatly improves the feeding speed and stability of the machine. Plane cutter can slot all kinds of materials. The linear guideway is matched with the ball screw, with 750W high-power servo motor greatly improve the feeding speed and stability.High strength alloy cutters are used for siotting knifes, each knife has 8 angles, no need to sharpen, greatly improve the working life. Double-knife altermate bending structure, the curved knife structure cast by ductile iron,good shock absorption, high structural strength,reduced number of parts splicing,high-power servo motorhigh-speed bending work Under the bending mechanism, the bending mechanism is permanently deformed, which effectively improves the positioning accuracy and the stablity of the high-speed bending.
FEATURES AT A GLANCE
MAINE VIEW
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C 0
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C 1
Right elevation
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C 2
Left elevation
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C 3
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
Slotting method
Plane cutter
2
Bending method
Double tools alternate bending system
3
Package size
2200*1180*1600mm   660*660*1100mm
4
Working space
3266*1184*1783mm
5
Suitable material
Stainless steel,galvanized plate ,aluminum plate
6
Slotting trip
Plane cutter :10-200mm
7
Material thickness
0.4-1.0mm
8
Min. bending angle
R6
9
Min .U
20mm
10
Distanse of internal&external angle
≥10mm
11
Distanse of bending origin
3mm
12
V-cut  method
Servo motor control
13
V-cut angle
30°/120°
14
Control system
6 axis  control system (4 servo axis control)
15
File formate
Dxf.
16
Power
ax220 、50Hz 、2.0KW
17
Weight
800KG
PRODUCT CONFIGURATION
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C 4
Deeding
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C 5
Bending
Automatic Stainless Steel Aluminum Plate Bending and Flanging Machine Fancy E-Jon ET20C 6
JV-cut
