Experience the Power of E8S Aluminium Channel Bending Machine with Continuous Feeding

Large Image : Experience the Power of E8S Aluminium Channel Bending Machine with Continuous Feeding

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$3,600.00/sets 1-4 sets
Packaging Details:	The export wooden box
Supply Ability:	3000 Set/Sets per Year

Contact Now

Experience the Power of E8S Aluminium Channel Bending Machine with Continuous Feeding

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	PLC, Motor
Material / Metal Processed:	Aluminum Profile,aluminum Plate,aluminum Sheet	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	200
Key Selling Points:	Competitive Price	Applicable Industries:	Advertising Company
Showroom Location:	Egypt, Turkey, United States, Italy, France, Viet Nam, Saudi Arabia, Indonesia, Russia, Thailand, South Korea, Australia	Product Name:	Aluminum Profile Channel Letter Bending Machine
Machine Type:	Roller-Bending Machine	Processing Material:	Aluminum Plate ,aluminum Profile
Power:	AC220V,50Hz,2.0Kw	After-sales Service Provided:	Technical Support By Video Or On Line
Material Thickness:	0.4~1.2 Mm	Slotting System:	Milling Wheel Cutter
Bending Method:	Double-bends Bending	FEEDING SYSTEM:	Rolling Typed Continuous Feeding System
Package Size:	12206601290mm	Port:	China Port

Product Description

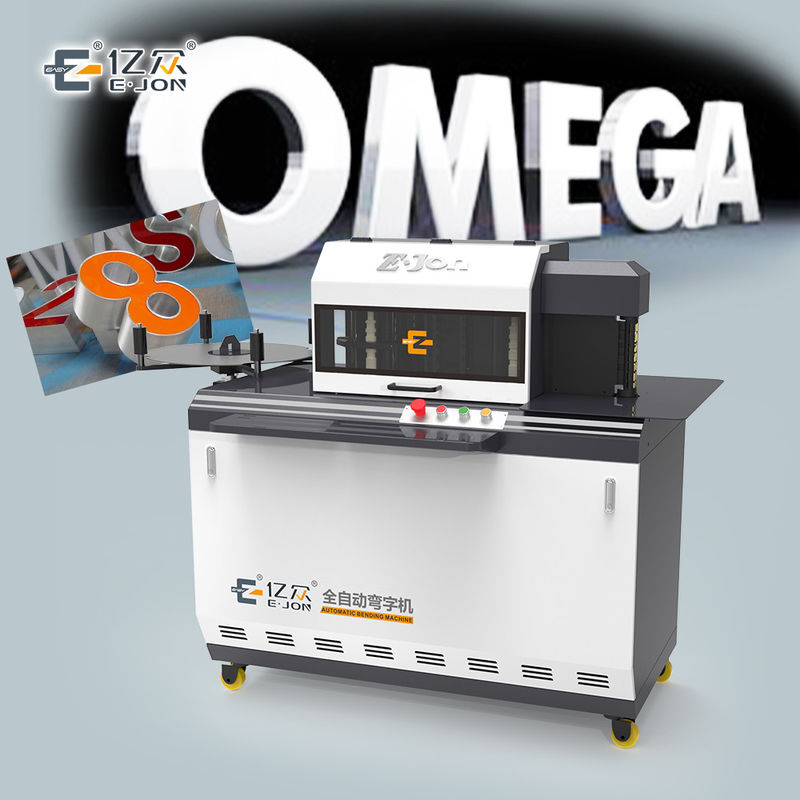

EJON E8S

3D Aluminium Profile

Neon Sign Trimcap LED Signs

Channel Letter Bending Machine

Exclusive design for aluminum profile and aluminum plate bending with positive and negative double side slotting methods. The
slotting can be at any angle.

Independent research and development of the software system, with the material database, arc high, easy to deal with small angle arc, large angle extrusion arc, to achieve the perfect matching with the letter.

SPECIFICATIONS
Feeding System	Roller circulation feeding system
Slotting System	Alloy milling cutter slotting system
Bending System	Double roller bearing extruding bending system
Suitable Material	Aluminum plate, Aluminium profile
Material Height	20~130mm
Material Thickness	0.4~1.2mm
Control System	4 axis control system
Min. Bending Angle	R10
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,2.0Kw
Air Supply	0.6m³/Min
Total Weight	200 kg

Detailed Images

FEEDING SYSTEM

The customized feeding roller ensures the feeding precision, meanwhile does not scratch the material.

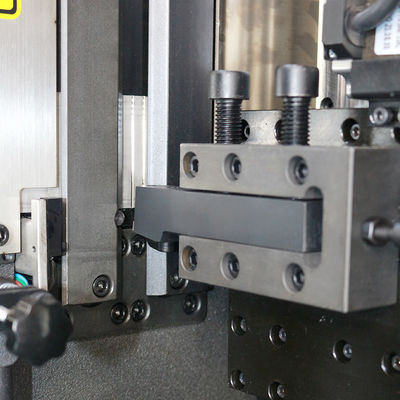

SLOTTING SYSTEM

Alloy milling cutter slotting system for aluminum plate and aluminum profiles.

With a visual depth adjustment knob, it is easy to process different thicknesses of material.

BENDING SYSTEM

The bends adopts specially designed copper column, which can adapt to different profiles, improve the molding degree by squeezing and pressing

MOTORS

The high-power motors ensure fast and accurate processing.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install and use the machine.

* Technical support by video and online. Professional technicians are at your services.

Packing & Delivery

Packaging
Size	1320(L) * 720 (W) * 1440(D)
Weight	200KG
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, we will use PE film for packing or pack it according to customers' special request.

FAQ

1. Who are we?

Tianjin Ejon Flying Science and Technology Co., LTD., was founded in 2017, located in Tianjin, China, is specialized in the production of CNC automation equipment and has independent intellectual property rights and a high-level research and development team. The factory covers an area of more than 2,500 square meters, annual sales is more than 3,000 sets which are exported to hundreds of countries and regions. The main products including automatic channel letter bending machine, automatic grooving machine, automatic grinding machine, automatic deburring machine, laser welding machine, laser cutting machine, etc., are economic, durable and popular with dealers, distributors and the users.
Our professional engineers have rich experience to handle different kinds of technical problems.
Our passionate and patient customer service personnel are ready to solve all kinds of problems for buyers any time.
Our agents of several countries can provide local service in time. Meanwhile, we also recruit agents all over the world.

We are willing to be your best partner for win-win cooperation!

2. How to choose channel letter bending machine?

We have different models with different functions, you can refer to the video below.
