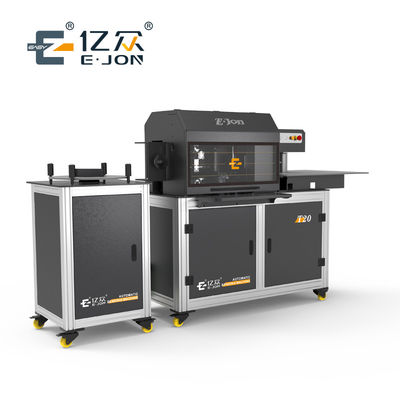

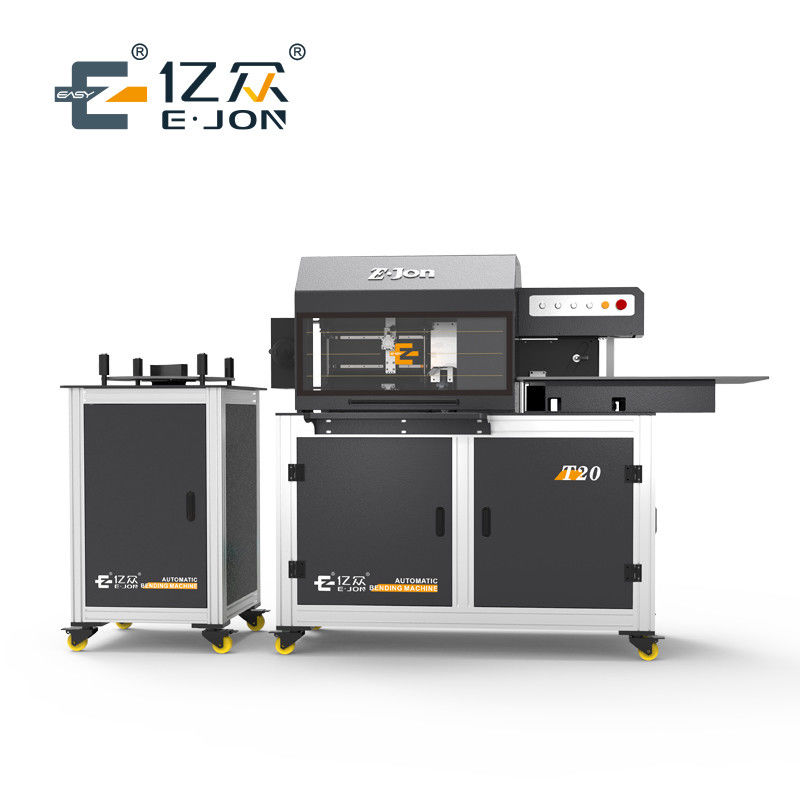

500KG EJON T20 Acrylic 3D Lettering Restaurant Luminous Sign Channel Letter Bending Machine

Large Image : 500KG EJON T20 Acrylic 3D Lettering Restaurant Luminous Sign Channel Letter Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$12,100.00/sets 1-2 sets
Packaging Details:	Wooden box
Supply Ability:	1000 Set/Sets per Year

Contact Now

500KG EJON T20 Acrylic 3D Lettering Restaurant Luminous Sign Channel Letter Bending Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2022
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminum, Stainless Steel, Carbon Steel	Automation:	Automatic
Year:	2022	Warranty:	1 Year
Weight (KG):	500	Key Selling Points:	Competitive Price
Applicable Industries:	Manufacturing Plant, Advertising Company	Showroom Location:	Egypt, Turkey, Viet Nam, Thailand, Morocco, South Korea, South Africa, Malaysia
Name:	Cnc Auto Letter Bending Machine	Voltage:	220V/50-60HZ/1P
Application:	Making 3D Sign Channel Letters	Material Width:	10-130mm
Bending Thickness:	SS:0.3-1.2mm	After-sales Service Provided:	Video Technical Support, Online Support
Slotting System:	Milling Cutter/plane Cutter Slotting	FEEDING SYSTEM:	Circulation-typed Clamp Feeding System
Bending System:	Double Blade Alternate Bending System	Port:	Tianjin

Product Description

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and

resin words, etc.

SPECIFICATION
Control System	4 axis servo control system
Power	AC 220 V, 50 Hz, 3.0 kW
Air Supply	0.6 m³/min
Material Height	Stainless steel, Galvanized steel, Aluminum plate: 20~130 mm; Aluminum profile: 20~100 mm
Material Thickness	0.4~1.2 mm
Total Weight	500 kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc., which ensure the strong stability.

4) 4 sets of Panasonic servo control system, SMC pneumatic component, chrome-faced, computer and air pump.

Mechanical Hand Feeding Design

The specially designed extra long alternate feeding mechanism with mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and can improve feeding precision.

Double-Cutter Slotting

Plane cutter for Galvanized sheet and Stainless steel

Milling cutter for Aluminum plate and Aluminum profiles

Letter Making

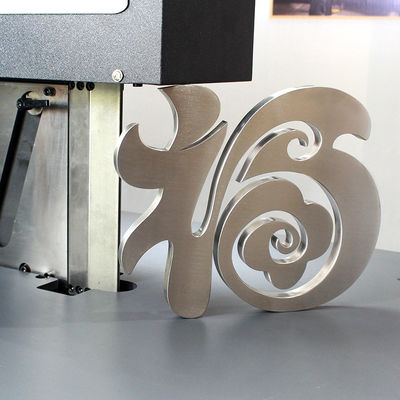

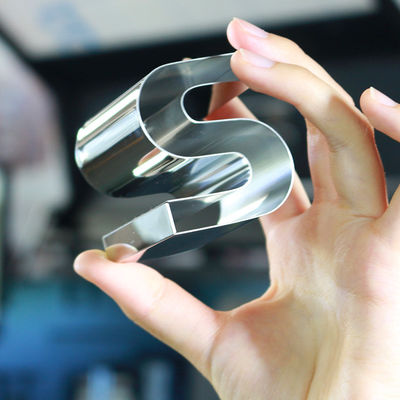

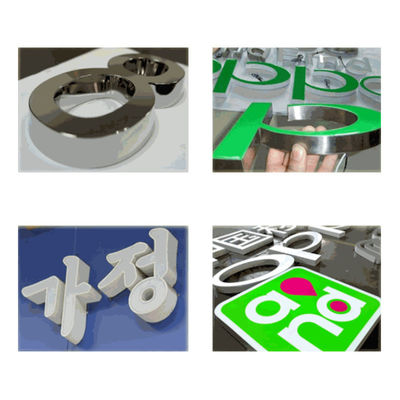

Finished Letters

Supporting Facility

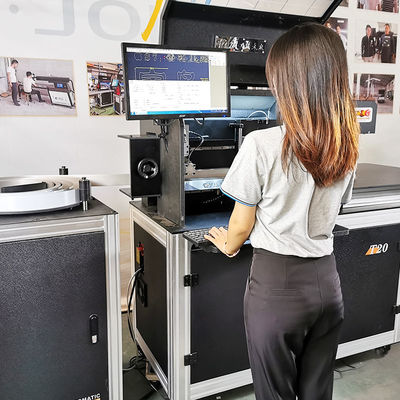

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.

Computer configuration: XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor

Our suggestion:

more than 4 kW;

the gas flow is 0.6 m³/min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI .

We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install and use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	460 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45 kg
Packaging Details	The normal package is fumigated wooden box(Size: LWH). If container is too tight, will use PE film for packing or pack it according to customer's special request.
