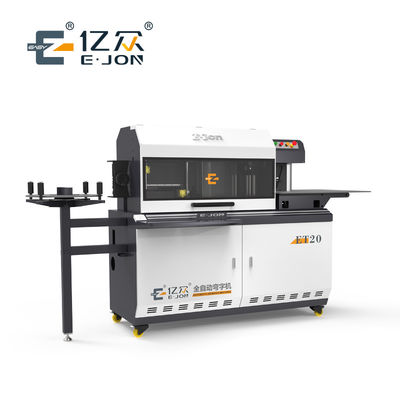

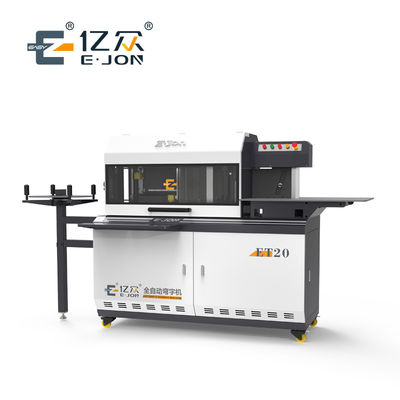

Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20

Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20

Large Image :  Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20

Product Details:
Place of Origin: Tianjin, China
Brand Name: Ejon
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: $19,800.00/sets >=5 sets

Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2024
Warranty Of Core Components: 1 Year Core Components: PLC, Motor
Material / Metal Processed: Aluminium Alloy, Aluminum, Stainless Steel, Carbon Steel Automation: Automatic
Warranty: 1 Year Weight (KG): 700
Key Selling Points: Multifunctional Applicable Industries: Retail, Printing Shops, Machinery Repair Shops, Advertising Company
Showroom Location: Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea Product Name: Multifuntion Channel Letter Bending Machine
Function: Auto Feeding+bending+slotting+notching CNC Or Not: CNC Letter Auto Bending Machine
Operation Principle: High Precision Automatic Feeding Control System: 7 Axis Control System
Applicable Material: Stainless Steel, Galvanized Plate, Aluminum Plate And Profile Bending System: Double Blade Alternate Bending System
Bending Thickness: 0.4~1.2mm Slotting System: Plane Cutter/milling Wheel Cutter
Extra Services: Technical Support

Product Description
EJON ET 20 Multifunctional Automatic
Channel Letter Bending Machine
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 0

FEEDING SYSTEM

1. Mechanical hands circulating clamping feeding structure adopts structural casting to improve the feeding holding and avoid scratching the material.
2. Using cylinder to control the feeding supporting, effectively eliminate the phenomenon of warping in the feeding process, to ensure feeding smoothly.
3. Double ball screw with nylon gear transmission, accurate positioning, greatly improve the feeding speed and stability of the machine.
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 1
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 2
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 3

SLOTTING SYSTEM

1. Double cutter independent slotting structure, easily deal with various materials.
2. Imported linear guide rail with ball screw, combined with high-power servo motor, to ensure the stability and consistency of slotting.
3. High-strength alloy plane cutter has 8 edge angles, no need to sharpen the cutter just change different angles, which can prolong the service life and greatly improve the processing efficiency.
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 4
Plane cutter slotting
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 5
milling wheel cutter slotting
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 6
high-power servo motor system

BENDING SYSTEM

1. Double bending tools alternating bending structure, cast by ductile iron with good vibration absorption and high structural strength, which reduces the number of parts splice.
2. Configuration of high-power servo motor, which ensure that the bending mechanism will not be deformed under high-speed bending work, effectively improve the positioning accuracy and high-speed bending stability.
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 7
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 8
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 9
Specification
ITEM
VALUE
Working Space
2400mm*1100mm*1500mm
Weight (KG)
700
Power
AC220V、50Hz、2.0kW
File Format
Dxf.Plt.Ai
Function
Auto Feeding+bending+slotting+notching
Feeding System
Mechanical hands circulating clamping feeding
Accuracy
±0.1mm
Control System
7 Axis Control System
Bending System
Double Blade Alternate Bending System
Suitable Material
Stainless steel, galvanized plate, Aluminum plate and profile
Bending Thickness
0.4~1.2mm
Min. Bending Angle
R6
Slotting System
Plane cutter/milling wheel cutter
Slotting Trip
20~200mm

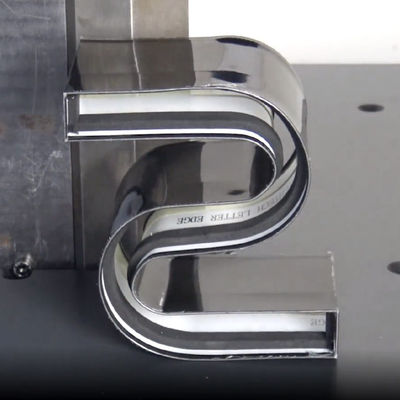

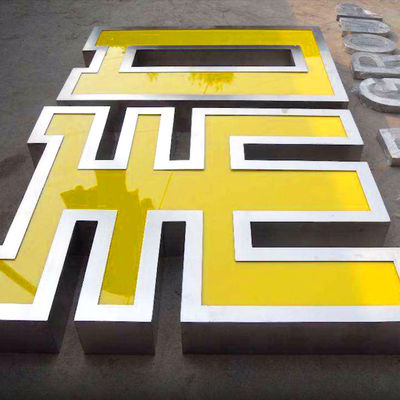

Finished Letters
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 10
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 11
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 12
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 13
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 14
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 15
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 16
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 17
Company Profile
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 18
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 19
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 20
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 21
Packing & Delivery
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 22
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 23
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 24
Item
Value
Package Size
165mm*780mm*1700mm
Packing material
fumigated wooden case, PE film or according to customer's special request
Weight
450kg
Port
Tianjin port
Lead Time
7 days

Freight way
shipping, Land transportation
Exhibition
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 25
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 26
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 27
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 28
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 29
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 30
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 31
FAQ
Fully Automatic Acrylic Signage Letter Making Machine for Road Sign Bending Ejon ET20 32
1. Why Choose Us
* Profesional Manufacturing
1. National patent technique of independent intelligent property right
2. More than 10 years of manufacturing experience in this industry
3. About 10,000 m2 factory to guarantee the production, storage and supplying
* Easy to Operate
You’ll spend only a few minutes learning how to use the machine through the simple operation interface and our video
* Quality Services
1. You can get highly customized product according to your demand because of our self-developed software, which can greatly
shorten the reconfiguration time and improve the work efficiency.
2. Pre-sale service: Inquiry and consulting support; Sample testing support; View our Factory.
3. After-sale service: Installand and use Training online or by telephone always at your service, no need to worry about any problem of the machine

2. How can we guarantee the quality IQC (Incoming Inspection) → IPQC (InPut Process Quality Control) → OQC (Outgoing Quality Control) → QA ( Finished product Quality Assurance) layer upon layer to ensure the quality and commitment to customer service 3. What can you buy from us Automatic channel letter bending machine Automatic channel letter slotting machine Automatic channel letter notching machine Automatic laser welding machine
Automatic laser cutting machine
Automatic deburring machine 4. What services can we provide Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T,L/C, Credit Card, Western Union, Cash; Language Spoken: English, Chinese, Spanish, French, Korean
