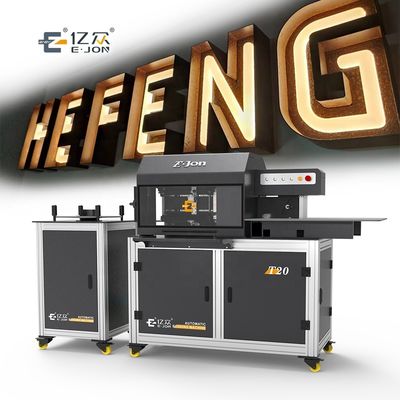

EJON T20 2mm Aluminum Stainless Steel Channel Letter Bending Machine for Sign Making

Large Image : EJON T20 2mm Aluminum Stainless Steel Channel Letter Bending Machine for Sign Making

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$11,500.00/sets 1-2 sets
Packaging Details:	fumigation wooden box
Supply Ability:	1000 Set/Sets per Year

Contact Now

EJON T20 2mm Aluminum Stainless Steel Channel Letter Bending Machine for Sign Making

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	High End Machine
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Plastic, PVC, Aluminum, Stainless Steel, Aluminum Profile	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	550
Key Selling Points:	High-accuracy	Applicable Industries:	Retail, Advertising Company, Signage
Showroom Location:	Egypt, Viet Nam, India, Russia, Spain, Thailand, UAE, Malaysia	Machine Type:	Press Brake
Raw Material:	Sheet / Plate Rolling	Power:	CNC
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Name:	Bending Machine
Application:	Stainless Plate Bending	Port:	Tianjin Port

Product Description

Product Application

T20: 4 sets of servo motors control system.

1. Aluminum profile frame and chrome-faced.

2. The specially designed extra long alternate feeding mechanism.

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision. It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding device
Slotting System	Plane cutter and alloy milling cutter system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	20~200mm
Material Thickness	0.4-2mm for flat aluminum
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V、50Hz、3.0Kw
Air Supply	0.6m3/Min
Total Weight	500Kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Panasonic servo control system,SMC pneumatic component,chrome-faced,computer and air pump.

Detailed Images

Machine Parts

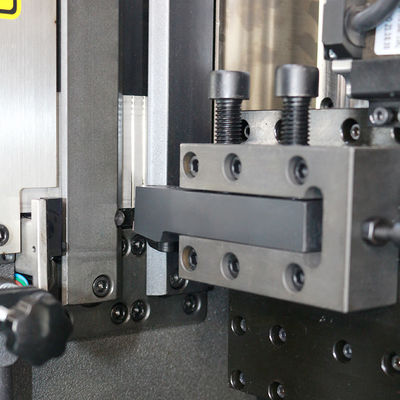

The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.

Main Features

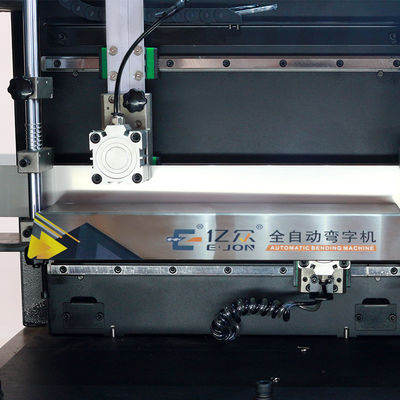

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel; using milling cutter for Aluminum plate and Aluminum profiles.

Our Service

Pre-Sales Service

* Machines videos.

* Sample testing support.

* Factory video review.

After-Sales Service

* Machine operation video and manual.

* Engineers available to service machinery overseas.

* Online support and Videl call support.

Packing & Delivery

Packaging
Size	1600(L) * 750 (W) * 1620(D)
Weight	550KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
