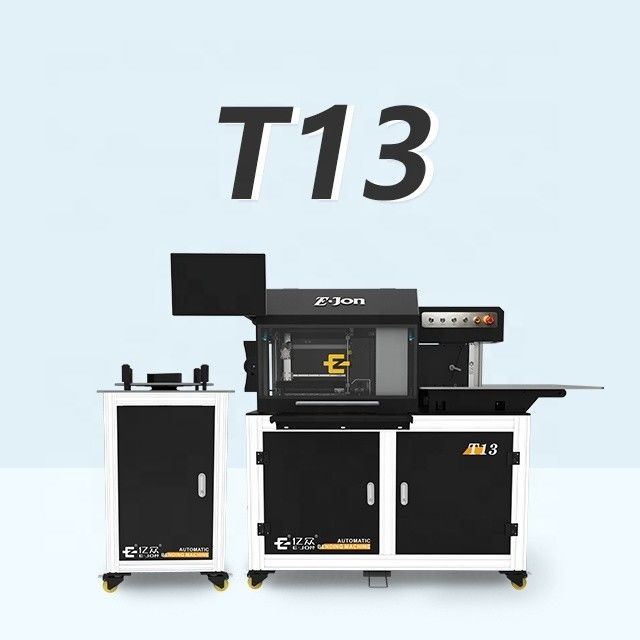

Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

Large Image : Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$9,800.00/sets 1-2 sets
Packaging Details:	fumigation wooden box
Supply Ability:	500 Set/Sets per Year

Contact Now

Fully Automatic EJON T13 3D Letter LED Letter Bending Machine with CE Synchronized

Description

Slider Stroke (mm):	250 Mm	Automatic Level:	Fully Automatic
Throat Depth (mm):	0 Mm	Machine Type:	Synchronized
Length Of Working Table (mm):	1300	Width Of Working Table (mm):	1000 Mm
Condition:	New	Material / Metal Processed:	Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum, Plastic, PVC
Automation:	Automatic	Extra Services:	Slotting & Notching
Weight (KG):	550	Motor Power (kw):	3 Kw
Key Selling Points:	High Safety Level	Warranty:	2 Years
Applicable Industries:	Hotels, Printing Shops, Energy & Mining, Advertising Company	Showroom Location:	Egypt, Viet Nam, Russia, Spain, UAE
Marketing Type:	Ordinary Product	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor	Function:	Multifunctional
Protect Gas:	Compressed Air	Power Type:	220V/50Hz
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application:	Stainless Plate Bending, Aluminium
Port:	Tianjin Port

Product Description

Product Application

T13: 4 sets of servo motors control system.

1. Aluminum profile frame and chrome-faced.

2. The specially designed extra long alternate feeding mechanism.

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

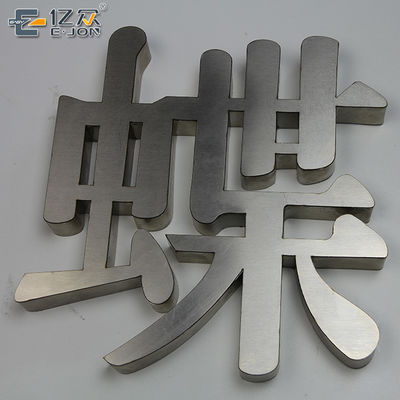

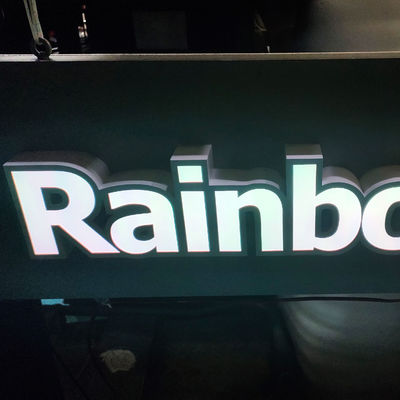

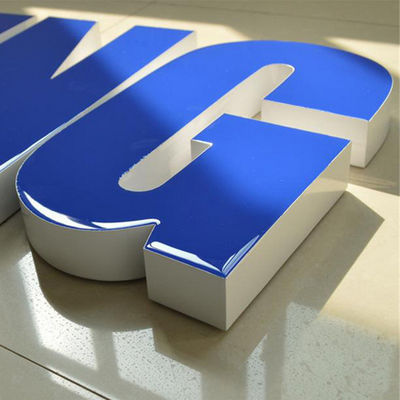

It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding device
Slotting System	Plane cutter and alloy milling cutter system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	Stainless steel、Galvanized steel、Aluminum plate:20~130mm/ Aluminum profile:20-100mm
Material Thickness	0.4-1.2mm
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf.Plt.
Power	AC220V、50Hz、3.0Kw
Air Supply	0.6m3/Min
Total Weight	550Kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of servo control system.

Detailed Images

Machine Parts

The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel; using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.
