Easy to Operate Ejon E9L Aluminum Channel Bender Machine for High Accuracy Letter Signs

Large Image : Easy to Operate Ejon E9L Aluminum Channel Bender Machine for High Accuracy Letter Signs

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$5,500.00/sets 1-2 sets
Packaging Details:	wooden case
Supply Ability:	2000 Set/Sets per Year

Contact Now

Easy to Operate Ejon E9L Aluminum Channel Bender Machine for High Accuracy Letter Signs

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2021
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum	Automation:	Automatic
Year:	2021	Warranty:	1 Year
Weight (KG):	200	Key Selling Points:	Easy To Operate
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company	Showroom Location:	Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea
Product Name:	E9L Channel Letter Bending Machine	Height:	20-130mm
Thickness:	0.4-1.0mm	Material:	Aluminum Plate
Control System:	4 Axis Control System	Slotting Method:	Plane Cutter
Bending Method:	Double-bends Alternate Bending	Fedding Method:	Rolling Continuous Feeding
Power:	AC220V,50Hz,2.0Kw	Working Space:	17409701500mm
Port:	Tianjin

Product Description

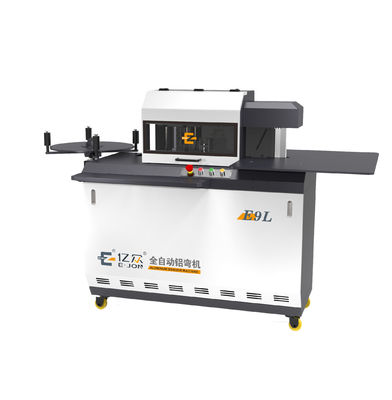

Ejon E9L Aluminum Channel Bender Machine for Letter Signs Making with High Accuracy

E9L high-end aluminum bending machine equipped with high-power motor and driver to ensure the stability of feeding，slotting and bending. The self-developed software system, with its own material database ensure the high arcing.

The slotting mechanism adopts the plane knife to make sure the slot smooth and free of burrs. It is easy to process different thicknesses of material.

The specially designed feeding roller is processed by CNC lathe to ensure the feeding accuracy and avoid scratching the material. The pneumatic feeding unit for free adjustment of material depth. Equipped with encoder compensation mechanism to ensure feeding accuracy. Equipped with integrated feeding bracket to ensure the parallelism of feeding.

SPECIFICATIONS
Feeding system	Rolling continuous feeding system
Slotting System	Plane cutter
Bending System	Double blade alternate bending system
Suitable Material	Aluminum plate
Material Height	Stainless steel,Galvanized steel,Aluminum plate:20~120mm
Material Thickness	0.4~1.0mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,2.0Kw
Control System	4 axis control system (1 axis servo control)

Main Features

1) The feeding support adopts an integral casting structure, which effectively avoids the deformation in the feeding process and ensures the stability of feeding.

2) The bending system adopts structural castings, integral casting, to ensure the stability of high-speed bending.

3) The slotting and bending adopt 750W high-power servo motor which accurate positioning, fast response, stable operation, and effectively improve the system's rapidity and stability.

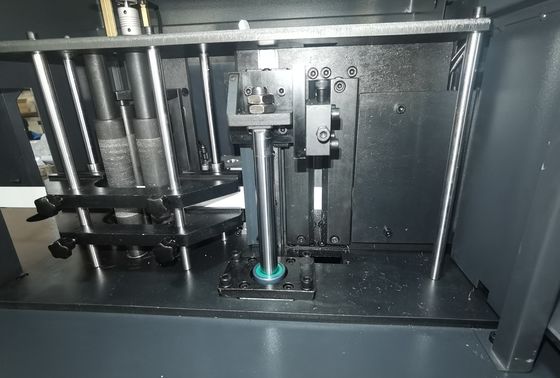

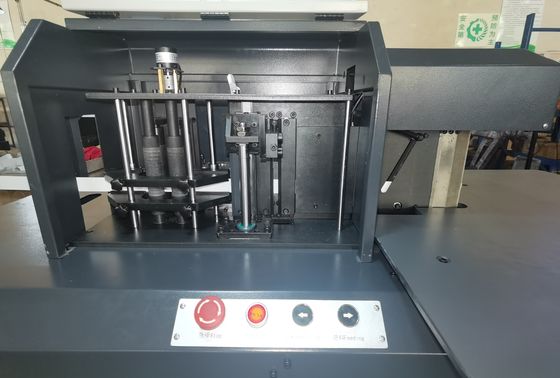

Detailed Images

Main Features

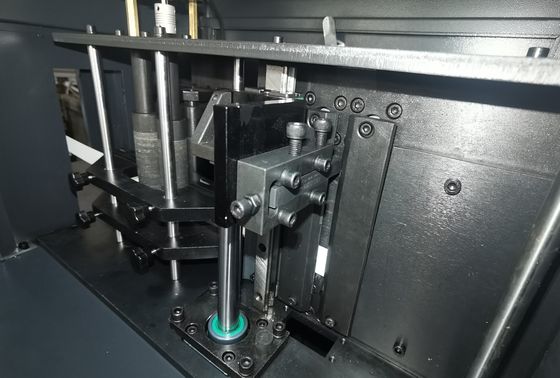

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

* Size：1200*720*1480mm

* Weight：400KG

* Packaging details：The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
