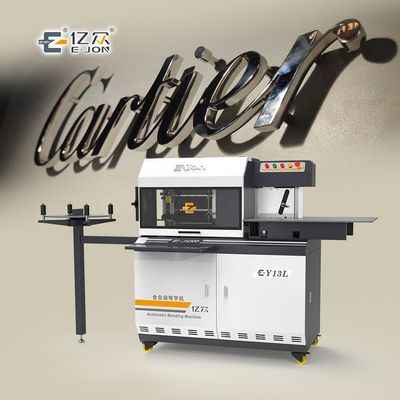

CE EJON Y13 Metal Signs Letters Channelume Aluminum Stainless Steel Channel Letter Bending Machine

Large Image : CE EJON Y13 Metal Signs Letters Channelume Aluminum Stainless Steel Channel Letter Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON
Certification:	ce

Payment & Shipping Terms:

Price:	$8,000.00/sets 1-4 sets
Packaging Details:	The export wooden box
Supply Ability:	6000 Set/Sets per Year

Contact Now

CE EJON Y13 Metal Signs Letters Channelume Aluminum Stainless Steel Channel Letter Bending Machine

Description

Condition:	New	Machine Type:	Roller-Bending Machine
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	Motor	Raw Material:	Sheet / Plate Rolling
Material / Metal Processed:	Stainless Steel,Galvanized Sheet,Aluminum Plate,Aluminum Profile	Power:	CNC
Automation:	Automatic	Extra Services:	Slotting & Notching
Weight (KG):	550	Key Selling Points:	Multifunctional
Warranty:	More Than 5 Years	Applicable Industries:	Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:	Turkey, Viet Nam, Thailand, South Korea, Malaysia	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Channel LetterS Bender Machine	Application:	Stainless Plate Bending
Voltage:	220v 50hz 1 Phase	Port:	China Port

Product Description

Product Application

CE EJON Y13 Metal Alphabet Letters Free Design Grandview business led sign illuminated stainless steel channel banding machine

Multifunction channel letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding system
Slotting System	Plane cutter and alloy milling cutter double cutters slotted system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	Stainless steel,Galvanized steel,Aluminum plate:20~130mm/ Aluminum profile:20-100mm
Material Thickness	0.4~1.2mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,3.0Kw
Air Supply	0.6m3/Min
Control System	4 axis control system (2 axis servo control)

Main Features

1) ;The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

2) The casting on Clamping increases the grasping force, meanwhile does not scratch the material;

3) The double ball screw of feeding design ensures the feeding speed and precision as well as stability;

Detailed Images

Machine Parts

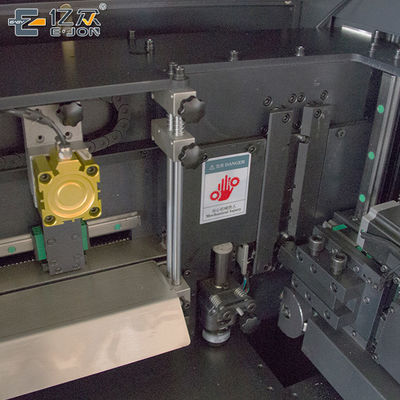

The casting on Clamping increases the grasping force, meanwhile does not scratch the material

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

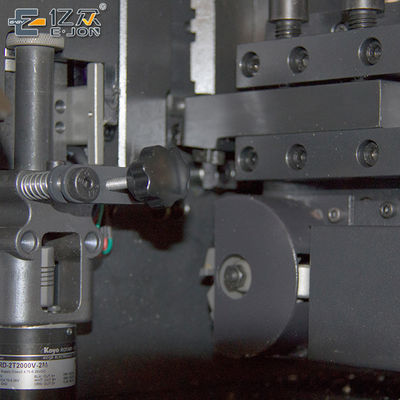

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	1330(L) * 740 (W) * 1500(D)
Weight	350KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
