CE Certified EJON W40 3mm Aluminum Bending Machine with 4 SERVO Axis Control System

Overview

Details

Place of Origin     :Tianjin,china                                                                 Brand Name:EJON

Conditon              :New                                                                             Model Type:  W40                                     Suitable Material :  Stainless steel,Galvanized plate,Aluminum plate        Automaic    :Automatic

After-Sales Service:Video/Oline support,Engineers Service                     Power         :CNC

Slotting Method     :Alloy  Plane Cutter Slotting                                  slotting Trip:20-400mm

Bending Method:Double Blade  Alternate Bending System

Control   System:4 servo axis control                                      Certification:CE

Supply Ability

Supply Ability:8800 Sets/Year



Packing &Delivery

 Packaging   Details:The Export  Non-Fumigation  Wooden Box

 Port                        :Tianjin  Port Or other China Port

 Delivery Time        : 10-20  Working Days



Product   Description

     EJ0N W40   machine are wide edge heavy automatic bending machine,it is widely used in Landscape character,Square letter,High side character,Hypotenuse letter and other letters.

     Adopting the progressive clamping feeding design,the feeding torgue is large and the precision is high,which effectively avoids the waste of materials and fundamentally saves the cost.Through the perfect combination of feeding clamp,high-quality ball screw and linear guide,high-power servo dive,it can meet the high load working condition,and cooperate with the material pre-straightening system,eliminating the feeding slipping and deformation of the sheet during the feeding process.

    W40  adopts CNC turning tool as slotting tool,which has high strength and low loss.Each knife has 8 angles,no need to sharpen,greatly improve the working life.The processing is low noise  and no dust,ensuring smooth slotting effect.

   W40 bending adopts 1500W  SERVO motor,high torque,high forming degree.The precision mechanical bending system performs good when processing thick plates and high-side materials.   The software is easy to operate ,and the processing graphics do not need to modify the nodes,which greatly improves the work efficiency.It is the preferred bending machine for high-side words.





SPECIFICATION
SYSTEM	High power Fuji servo system
Feeding System	Progressive clamp  feeding system
Slotting System	Plane cutter slotting&automatic oil spray system
Bending   System	Double blade alternate bending system
Suitable Material	Stainless steel,Galvanized plate,Aluminum plate≤1.5mm
Slotting Height	20-400mm
Material Thickness	0.4-1.8mm
Control System	4 servo  control system
Min Bending Angle	R15
File  Format	Dxf.Plt
Power	AC220V,50HZ,4.0KW
Air Supply	0.6m3/min
Package Size	1880*780*1850mm
Working Space	4000*1100*1850mm
Machine Weight	750Kg

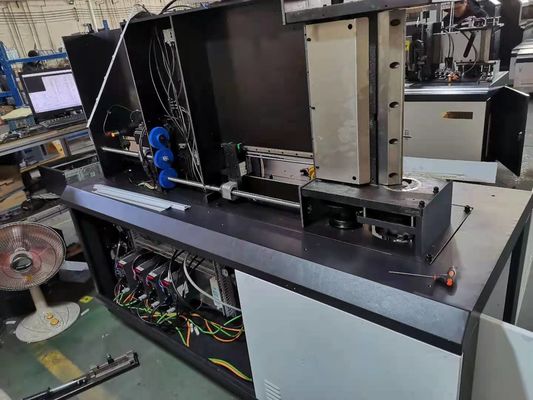

                              W40  Machine part details







 High -power Fuji servo driver:

High-power full Fuji servo driver,maximum height to 40cm,double blade alternating  bending system,are specialized for square letter ,landscape  letter and other kinds of giant letter processing.





 Feeding  parts :Mechanical arms and alternating clamp

  feeding designed ,servo dive +high quality ball screw and

  linear guide rail configuration make feeding smooth and

  steady.No deformation of the material.Length encoder

  and closed-loop control system matches the finished

  product with the source file perfectly.

















Slotting  Parts: Plane cutter slotting system  provided  with automatic oil spray  mist fuction of grooving to   ensure the smoothness and of the fluting effect.The  system presets the groove function of natural angle, it makes thin automatically  for small angle and sharp angle,which can easily deal with complete

processing.













Bending  Parts: Double blade  alternating bending system, adopts 1500W servo motor,high torque,high forming degree,

and  high-strength ball screw to meet the high load working

condition.













Sample  Showing













































How to learn machine operate



1. Operation  Manual U disk

   Provide  U  disk with machine which have detail  specific english operational manual and videos.



2. Network  Service

   Through Wechat,Whatsapp,Skype,E-mail,Team viewer provide online  service.



3.  Factory Visiting

   Welcome customer to visit our factory  to learn how to operate the machine.









Supporting  Facility















Computer                                   Pump                                        File  Format

To  use the device,you need to       The use of equipment should         The software of bending

install the control card in your          be equipped with                             machine is self-developed.  computer and then  connect to         AIR  compressor,we suggest        Import the format supports

the bending machine and install       that the selection of more               Dxf.Plt.Ai.We recommend

the software  computer.                    than 4kw,the gas flow  is                using Coredraw or adobe

Configuration:XP system or            0.6m3/Min                                       illustrator to complete

window7 32-bit system,and                                                                 the file after the export file

requiresa pcl card slot to                                                                     to Dxf.Plt.Ai  format.Then

install the control  card.                                                                      open the operating software,

                                                                                                                select the document





EXhibition



















Our  company

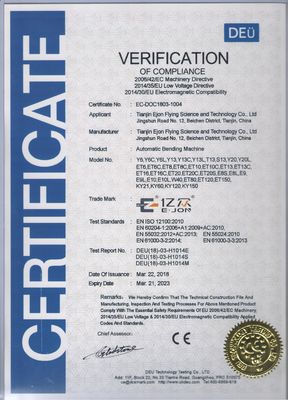

 Certification
