Sheet / Plate Rolling Roller-Bending Machine with Easy Operation EJON T13 Delta Servo

Large Image : Sheet / Plate Rolling Roller-Bending Machine with Easy Operation EJON T13 Delta Servo

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Minimum Order Quantity:	5 sets
Price:	$9,200.00/sets >=5 sets

Contact Now

Sheet / Plate Rolling Roller-Bending Machine with Easy Operation EJON T13 Delta Servo

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Ordinary Product
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Stainless Steel, Stainless Steel,Galvanized Sheet,Aluminum Plate,Aluminum Profile	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	500
Key Selling Points:	High Productivity	Applicable Industries:	Printing Shops, Advertising Company, Restaurant, Construction Works
Showroom Location:	Egypt, Turkey, France, Viet Nam, Philippines, Brazil, Saudi Arabia, India, Russia, Spain, Thailand, Morocco, South Korea, Romania, South Africa, Ukraine, Japan, Malaysia	Machine Type:	Roller-Bending Machine
Raw Material:	Sheet / Plate Rolling	Power:	CNC
Extra Services:	Slotting & Notching	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Product Name:	Channel Letter Bender Machine	Height:	130MM
After Warranty Service:	Video Technical Support,Online Support

Product Description

Product Application

New EJON T13 Delta servo cnc auto aluminum plate bending machine CNC automatic Easy operation channel letter bending machine

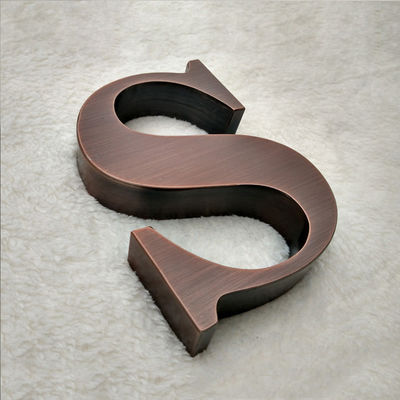

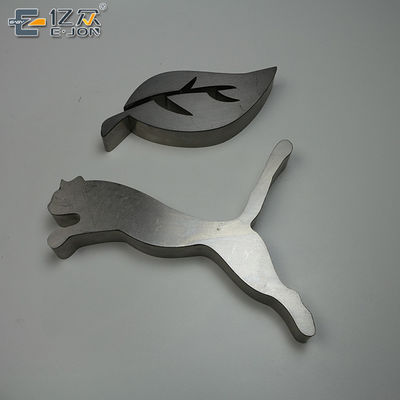

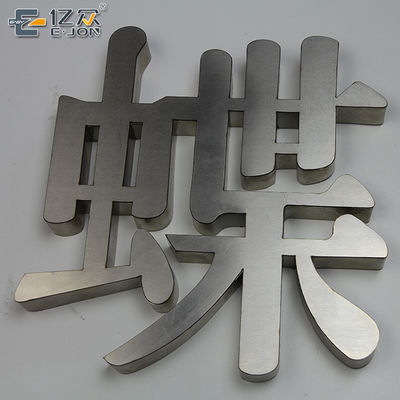

Multifunction channel letter bending machine,which is equipped with fully servo control system. The specially designed extra long alternate feeding mechanism and the double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision. It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding device
Slotting System	Plane cutter and alloy milling cutter system
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate, Aluminium profile
Material Height	Stainless steel,Galvanized steel,Aluminum plate:20~130mm/ Aluminum profile:20-100mm
Material Thickness	0.4-1.2mm
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,3.0Kw
Air Supply	0.6m3/Min
Total Weight	500Kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Delta servo control system,SMC pneumatic component,chrome-faced,computer and air pump.

Detailed Images

Machine Parts

The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision.

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

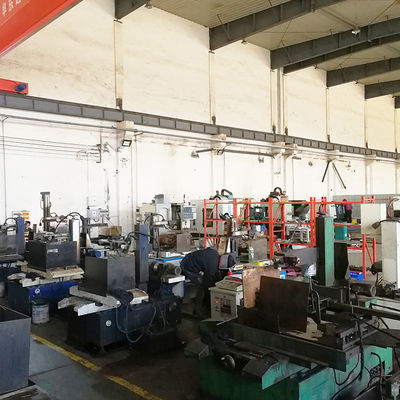

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

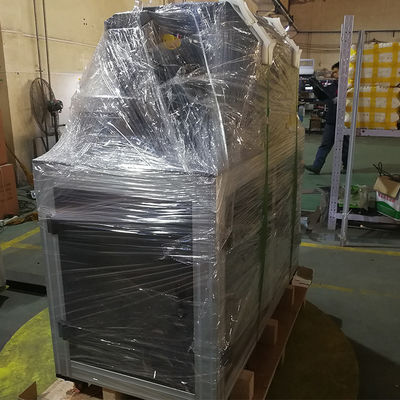

Packing & Delivery

Packaging
Size	1410(L) * 750 (W) * 1560(D)
Weight	460KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	660(L) * 660(W) * 1110 (D)
Weight	45KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
