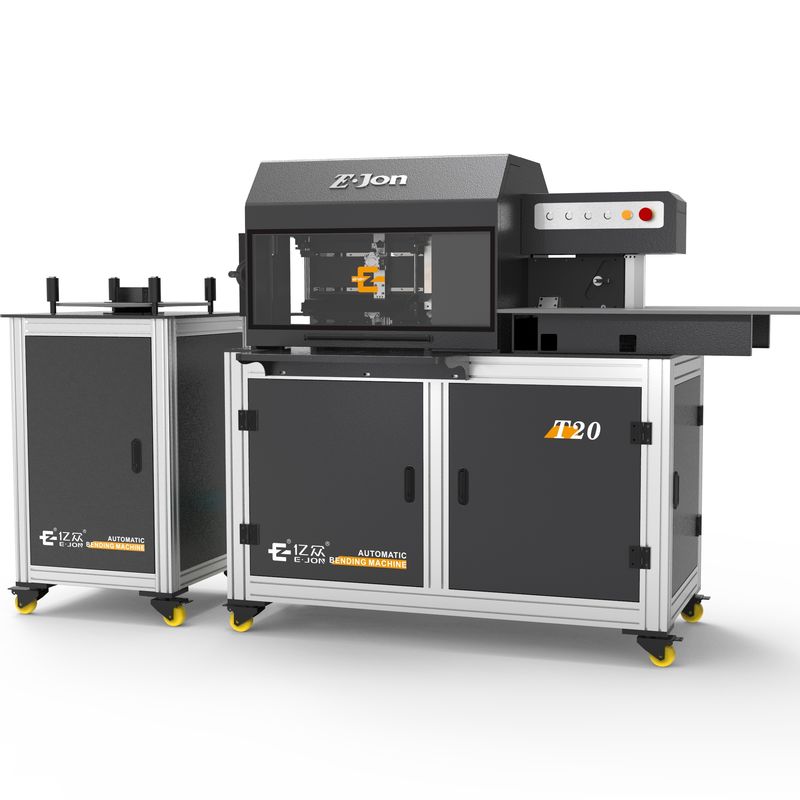

EJON T20 2mm Aluminum Stainless Steel Channel Letter Bending Machine 550KG Weight Ideal

Large Image : EJON T20 2mm Aluminum Stainless Steel Channel Letter Bending Machine 550KG Weight Ideal

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	Ejon
Certification:	ce

Payment & Shipping Terms:

Price:	$11,500.00/sets >=1 sets
Packaging Details:	fumigation wooden box

Contact Now

EJON T20 2mm Aluminum Stainless Steel Channel Letter Bending Machine 550KG Weight Ideal

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	New Product 2023
Warranty Of Core Components:	1 Year	Core Components:	Motor, Motion Control Card
Material / Metal Processed:	Aluminium Alloy, Aluminum, ALLOY, Brass / Copper, Stainless Steel	Automation:	Automatic
Warranty:	1 Year	Weight (KG):	550
Key Selling Points:	Multifunctional	Applicable Industries:	Retail, Manufacturing Plant, Advertising Company
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, South Korea, Romania, South Africa, Ukraine, Japan, Malaysia, Australia	Product Name:	Channel Letter Bending Machine
Maximum Material Thickness:	2mm	Raw Material:	Sheet / Plate Rolling
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Application:	Stainless Plate Bending
Function:	Auto Feeding+bending+slotting	Power:	CNC
Bending Method:	Double-bends Alternate Bending	Feeding System:	Circulation-typed Clamp Feeding System

Product Description

Product Application

T20: 4 sets of Delta servo motors control system.

1. 2mm Aluminum plate.

2. The specially designed extra long alternate feeding mechanism.

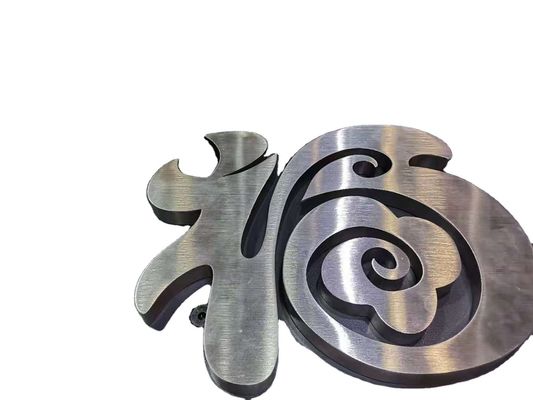

3. Double ball screws drive make it more powerful, more fast and higher precision.The mechanical hand feeding design,continuously feeding by the two clamps, can avoid feeding slipping and improve feeding precision. It is the first choice for producing the word shell of LED, aluminium letters, stainless steel characters, punching words and resin words, etc.

SPECIFICATIONS
Feeding system	Double ball-screw alternate feeding device
Slotting System	Plane cutter
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	Stainless steel, Galvanized steel, Aluminum: 15mm-200mm/

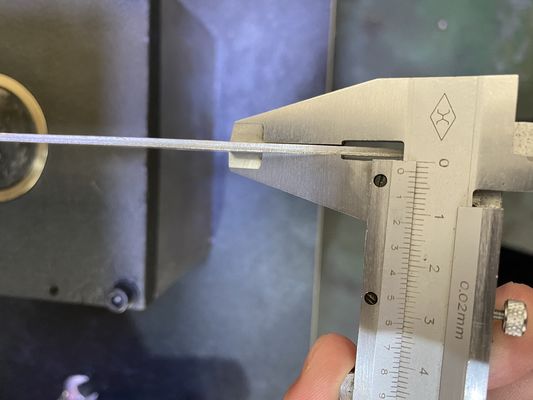

Material Thickness	0.4-2mm
Control System	4 axis servo control system
Min. Bending Angle	R6
File Format	Dxf. Plt.
Power	AC220V、50Hz、3.0Kw
Air Supply	0.6m3/Min
Total Weight	600Kg

Main Features

1) The special designed extended bending mechanism can effectively ensure the long process path forming angle.

2) The 4-axis control system of feeding, slotting, slotting height and bending has improved processing efficiency and stability.

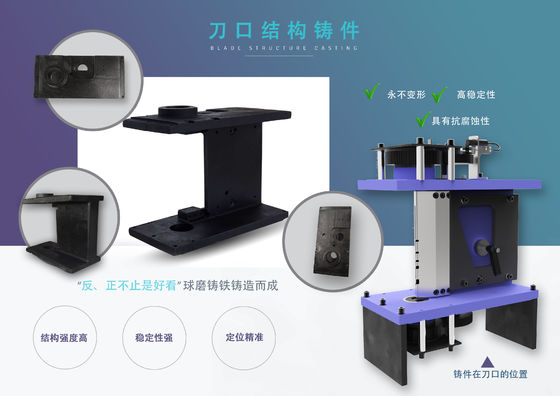

3) The main hardware of the machine is monobloc casting (bending mechanism, clamping mechanism and encoder, etc.) which ensure the strong stability.

4) 4 sets of Delta servo control system, maximum can process 2mm thickness aluminum.

Detailed Images

Machine Parts

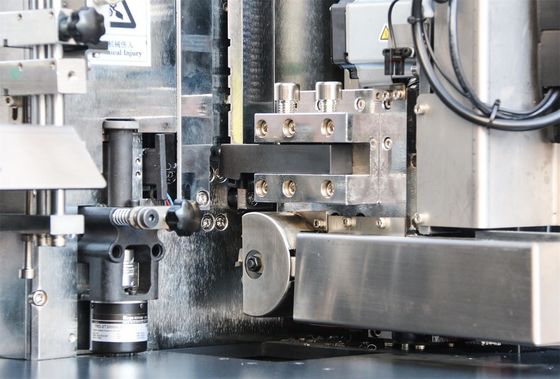

The mechanical hand feeding design, continuously feeding by the two clamps which can avoid feeding slipping and improve feeding precision.

Main Features

The double ball screw of feeding design ensure the feeding speed and precision as well as stability

Machine Parts

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel; using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

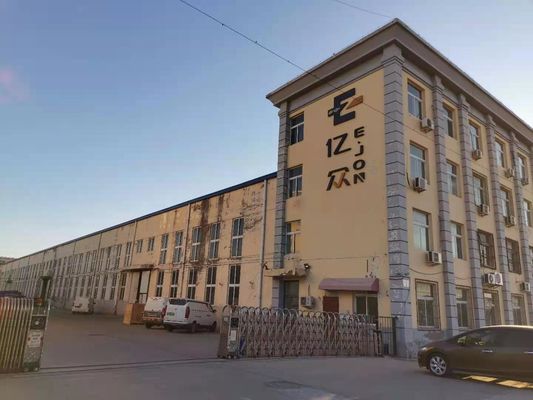

* View our Factory.

After-Sales Service

* Contact Bobby, 17622751627/wechat/whatsapp

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1500(L) * 770 (W) * 160(D) cm
Weight	600KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packaging
Size	650(L) * 650(W) * 1110 (D) cm
Weight	50KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
