Automatic 3D Acrylic Letter Bending Tool Trimcap Strip Channel Letter Machine Ejon E9L

Overview

Quick details

Place of Origin:     Tianjin,China

Brand Name   :    EJON

Product Name: Channel letter bending machine

Model Number:   E9L

Condition   :      New

Key Selling Point: Brimless Letter Making Machine,easy to operate

Applicable Industries:Adverting  Company.

 Material Thickness:0.4mm-1.2mm

Suitable Material: Aluminum  Flat

After-sales Service:Engineers available to service machinery overseas

Slotting      :Plane  cutter

 Automation: Automatic



Product Description

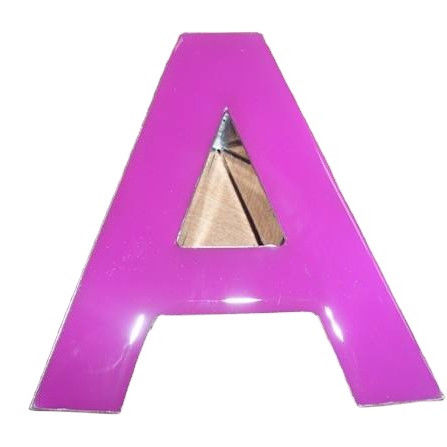

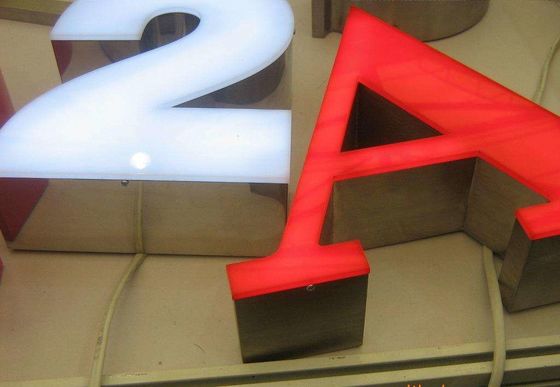

Product Application

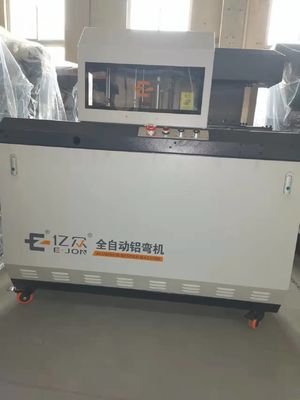

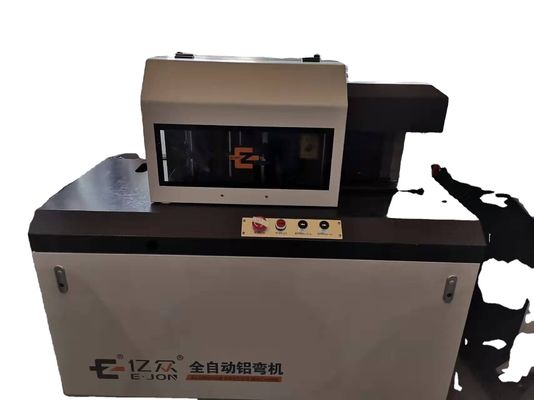

   EJON E9L ,professional led advertising signs ,customized flat aluminum materials,is a high-end  automatic channel letter bending machine.

     E9L equippped with high-power motor and driver to ensure the stability of feeding ,slotting and bending .The self-developed software system,with its own material database and high arcing .Double blading alternate bending  structure,adopts the bends structure cast by ductile iron,which has good shock absorption and high structural strength,reduces the number of parts and components,equipped with  high-power servo motor,accurate positioning ,fast response,smooth operation,effectively improve the positioning accuracy of high-speed bending,the minimum forming Angle up to R6.

     It adopts  the plane knife to make sure the slot smooth and free of burrs,it is easy  to process different thickness of material.

    The specially designed feeding roller is processed by CNC lathe to ensure the feeding accuracy and avoid scratching the material.The pneumatic feeding unit for free adjustment of material depth.Equipped with encoder compensation mechanism to ensure feeding accuracy.The feeding support adopts an integral casting structure,which effectively avoids the deformation generated during the feeding and ensure the stability of feeding.









                                               SPECIFICATIONS



Feeding system	Roller circulation feeding system
Slotting system	Alloy plane cutter  slotting system
Bending system	Double blade alternate bending system
Suitable Material	Aluminum  flat
Material Height	20-130mm
Material Thickness	0.4-1.2mm
Control system	4 axis  control system(1 servo control)
Min.  Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,2.0Kw
Air Supply	0.6 m3/Min
Total  Weight	200Kg



 Detail of the part of the machine:



1.Feeding System









    The feeding support adopts an integral casting strucure ,which effectively avoids the deformation generated during the feeding  and  ensures the stability of feeding.







2.Slotting System







      High strength alloy cutters are used for slotting knives ,each knife has 8 angles,no need to shapen,greatly improve the working life.





3.Bending system





    Double bends alternate bending structure,adopts the bends stucture cast by

ductile  iron,which has good shock absorption and high structual strength ,reduce the number of parts and components,equipped with high-power servo

motor,accurate positioning ,fast response ,smooth operation,effectively improves the positioning accuracy and the stability of high-speed bending,the

minimum forming Angle up to R6.
