Aluminum Channel Letter Bending Machine with Auto Feeding and Bending Capability

Overview

Quick details

Place of Origin:     Tianjin,China

Brand Name   :    EJON

Product Name: Channel letter bending machine

Model Number:   E9

Condition   :      New

Key Selling Point: Easy to Operate

Applicable Industries:Adverting  Company.

 Material Thickness:0.4mm-1.2mm

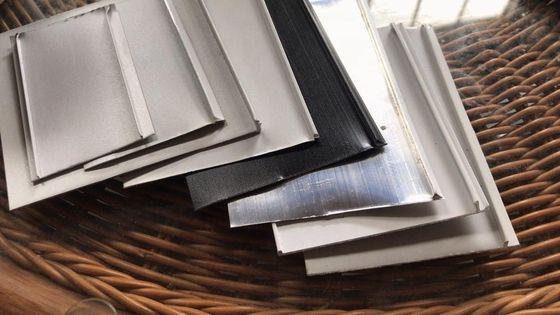

Suitable Material: Aluminum Plate , Aluminum Profile,Customized of different aluminum material

After-sales Service:Engineers available to service machinery overseas

Slotting      :Alloy Milling cutter

 Automation: Automatic



Product Description

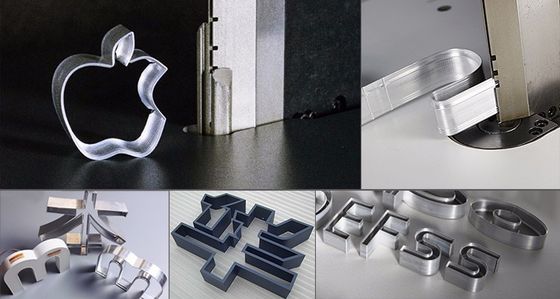

Product Application

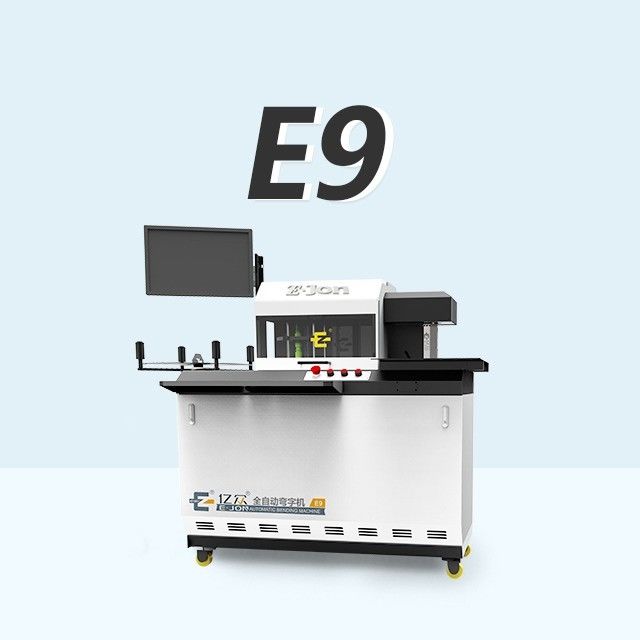

   EJON E9 ,professional led advertising signs ,customized flat aluminum,aluninum profile materials,is a type aluminum strip automatic channel letter bending machine.

    Upgrated alunimum profile bending machine equippped with high-power motor and driver to ensure the stability of feeding ,slotting and bending .The self-developed software system,with its own material database and high arcing .Double blading alternate bending  structure,adopts the bends structure cast by ductile iron,which has good shock absorption and high structural strebgth,reduces the number of parts and components,equipped with  high-power servo motor,accurate positioning ,fast response,smooth operation,effectively improve the positioning accuracy of high-speed bending,the minimum forming Angle up to R6.

     It adopts a large-angle milling cutter to slot,and the front and back double-side slots can realize the slotting at any angle.With a visual depth adjustment knob,it is simple to process different thickness of material.

    The specially designed feeding roller is processed by CNC lathe to ensure the feeding accuracy and avoid scratching the material.The pneumatic feeding unit for free adjustment of material depth.Equipped with encoder compensation mechanism to ensure feeding accuracy.The feeding support adopts an integral casting structure,which effectively avoids the deformation generated during the feeding and ensure the stability of feeding.









                                               SPECIFICATIONS



Feeding system	Roller circulation feeding system
Slotting system	Alloy milling  wheel cutter  slotting system
Bending system	Double blade alternate bending system
Suitable Material	Aluminum  plate,Aluminum profile,Customized different aluminum matetials
Material Height	20-130mm
Material Thickness	0.4-1.2mm
Control system	4 axis  control system
Min.  Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,2.0Kw
Air Supply	0.6 m3/Min
Total  Weight	200Kg



 Detail of the part of the machine:



1.Feeding System









    The feeding support adopts an integral casting strucure ,which effectively avoids the deformation generated during the feeding  and  ensures the stability of feeding.







2.Slotting System

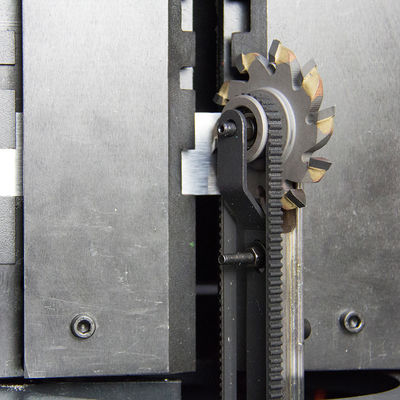

    It  adopts a large-angle milling cutter to slot,the front and back double-side slot can realize the slotting at any angle.





3.Bending system

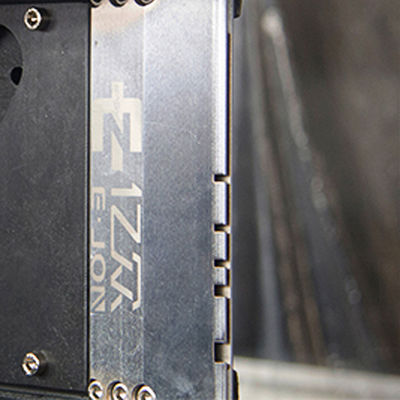

    Double bends alternate bending structure,adopts the bends stucture cast by

ductile  iron,which has good shock absorption and high structual strength ,reduce the number of parts and components,equipped with high-power servo

motor,accurate positioning ,fast response ,smooth operation,effectively improves the positioning accuracy and the stability of high-speed bending,the

minimum forming Angle up to R6.





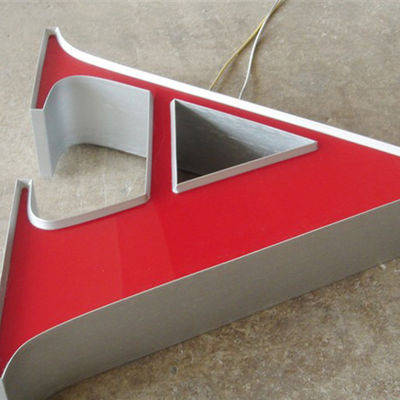

Model  of written characters:

































Packing of the machine:

















Loading Container:





























Our factory pictures:



















Our exhibition:































Contact Way:
