450KG Ejon Y20L Automatic 3D Channel Letter Bending Machine for Aluminum Coil Bending

Name: 450KG Ejon Y20L Automatic 3D Channel Letter Bending Machine for Aluminum Coil Bending
Brand: Tianjin Ejon Flying Science And Technology Co., Ltd.
Price: 1.00 USD
Availability: InStock

All Products

Steel Deburring Machine
(27)

Channel Letter Equipment
(291)

Channel Letter Bending Machine
(161)

Laser Welder Machine
(6)

Metal Sign Grinding Machine
(1)

CNC Letter Slotting Machine
(1)

CNC Laser Cutting Machine
(1)

CNC Router Machine
(1)

3D Printer Machine
(1)

Certification

I'm Online Chat Now

450KG Ejon Y20L Automatic 3D Channel Letter Bending Machine for Aluminum Coil Bending

Large Image : 450KG Ejon Y20L Automatic 3D Channel Letter Bending Machine for Aluminum Coil Bending

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$8,450.00/sets 1-2 sets
Packaging Details:	The export wooden box
Supply Ability:	2000 Set/Sets per Year

Contact Now

450KG Ejon Y20L Automatic 3D Channel Letter Bending Machine for Aluminum Coil Bending

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2021
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Aluminum, Stainless Steel, Stainless Steel, Galvanized Steel, Aluminum Plate,	Automation:	Automatic
Year:	2021	Warranty:	1 Year, 1 Year
Weight (KG):	450	Key Selling Points:	Easy To Operate
Applicable Industries:	Printing Shops, Machinery Repair Shops, Advertising Company, Restaurant, Construction Works , Building Material Shops	Showroom Location:	Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea
Product Name:	Y20L Channel Letter Bending Machine	Function:	Auto Feeding+bending+slotting
Slottng Trip:	10-200mm	Material Thickness:	0.4-1.2mm
Min.Bending Angle:	R6	Machine Weight:	400Kg
Suitable Materials:	Stainless Steel,galvanized Sheet And Aluminum Plate	Slotting Method:	Plane Cutter
Bending Method:	Double-bends Alternate Bending	Port:	Tianjin

_{Product Description}

Ejon Y20L Automatic 3D Channel Letter Bending Machine for Advertising Acrylic LED Sign Aluminum Coil Bender Tools

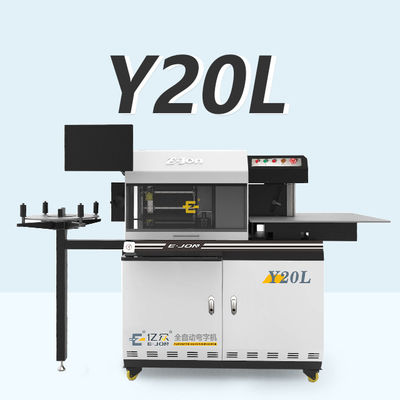

Ejon Y20L is a multi-functional automatic letter bending machine.

Multifunction channel letter bending machine,Using mechanical hand alternately feeding structure,the stability of the feeding process is effectively guaranteed. Double ball screw with nylon gear, the feeding speed of the machine is greatly improved. The material clamp is made of structural castings,avoid scratching to the material while improving the feeding holding power.tps cnc channel letter bending machine.

Plane cutter can slot all kinds of materials. The linear guideway is matched with the ball screw, with 750W high-power servo motor, greatly improve the feeding speed and stability.

Double bends alternate bending structure, the bend is widened to 20CM, adopts the bends structure cast by ductile iron, which has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, which effectively improves the positioning accuracy and the ability of high-speed bending.

SPECIFICATIONS
Feeding system			Double ball-screw alternate feeding system
Slotting System			Alloy Plane cutter slotting system
Bending System			Double tools alternate bending system
Suitable Material			Stainless steel, Galvanized steel, Aluminum plate,
Material Height			Stainless steel,Galvanized steel,Aluminum plate:10~200mm
Material Thickness			0.4~1.2mm
Accuracy			±0.1mm
Min. Bending Angle			R6
File Format			Dxf.Plt.Ai
Power			AC220V,50Hz,2.0Kw
Control System			4 axis control system (2 axis servo control) 4aixs servo control as choice

Main Features

1) The bending system adopts structural castings and is integrally cast to ensure the stability of high-speed bending.

2)The feeding structure adopts double ball screw matched with nylon gear transmission ensuring the precise positioning, smooth feeding, greatly improving the feeding speed and stability.

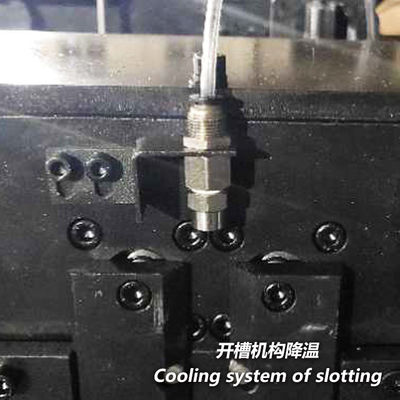

3) The slotting mechanism adds a new air blowing and cooling function to extend the service life of the cutter while ensuring smooth slotting.

_{Detailed Images}

Machine Parts

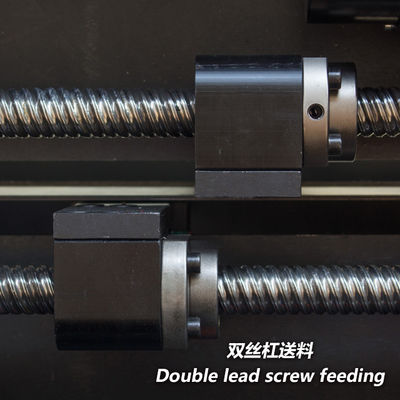

The double feeding holder ensures the smooth feeding and avoid warping.

Main Features

The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

Machine Parts

Alloy plane cutter for Galvanized sheet,Stainless steel ,Aluminum plate ,each cutter with 8 angles,can be use about one month,costs about USD5

Main Features

Steel coupling ensures the bending molding and bending speed.

_{Supporting Facility}

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

_{Our Service}

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

_{Packing & Delivery}

* Size：1410*780*1600mm

* Weight：450KG

* Packaging details：The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
