Product Details:
Place of Origin: Tianjin, China
Brand Name: EJON
Certification: ce
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: $12,000.00/sets >=5 sets
Contact Now

Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2024
Warranty Of Core Components: 1 Year Core Components: Motor
Material / Metal Processed: Aluminium Alloy, Aluminum, Stainless Steel, Galvanized Plate Automation: Automatic
Warranty: 1 Year Weight (KG): 700
Key Selling Points: Multifunctional Applicable Industries: Advertising Company
Showroom Location: Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea, UAE, Kazakhstan, Kyrgyzstan Product Name: Channel Letters Bender Machine
Machine Type: Roller-Bending Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas
Thickness: 0.4-1.2mm Height: 20-200mm
Slotting Method: Plane Cutter/milling Wheel Cutter Control System: 7 Axis Control System
Bending Method: Double-bends Alternate Bending Suitable Materials: Stainless Steel,galvanizedplate,aluminum Plate And Profile

Product Description

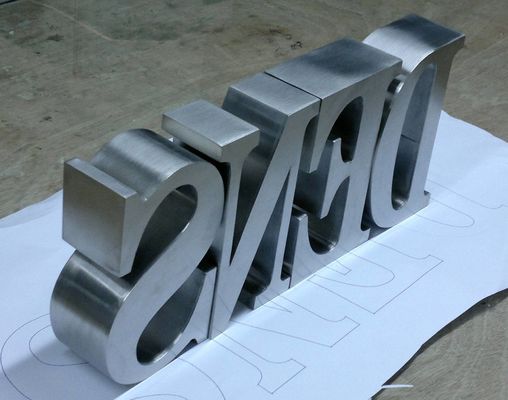

Ejon ET20 high efficiency auto stainless steel bender channel letter bending machine for 3D signage advertising board
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 0
SPECIFICATIONS
Feeding system
Double ball-screw alternate feeding system
Slotting System
Plane cutter and alloy milling cutter (double sides cutting)
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum plate and profile
Material Height
20-200mm
Material Thickness
0.4~1.2mm
Accuracy
±0.1mm
Min. Bending Angle
R6
File Format
Dxf. Plt.Ai
Power
AC220V、50Hz、2.0Kw
Weight
700KG
Control System
7 axis control system (3 servo axis control)
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 1
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 2
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 3
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 4

Main Features

1) Adopts double cutter independent slotting struture, easily deal with various materials.


2) Feeding struture adopts double ball screw with nylon gear transmission, accurate positioning, ensure the feeding smooth, greatly improve the feeding speed and stability of the machine.

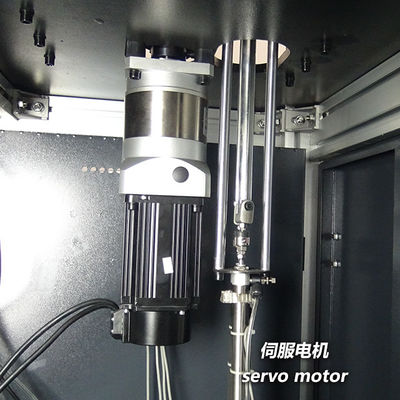

3) Configuration of high-power servo motor, effectively improve the positioning accuracy and high-speed bending stability.

Detailed Images
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 5

Machine Parts

The double feeding holder ensures the smooth feeding and avoid warping.

Main Features

The monobloc casting of Bending Mechanism has high molding degree which ensure the bending speed and stability.

Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 6
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 7

Machine Parts

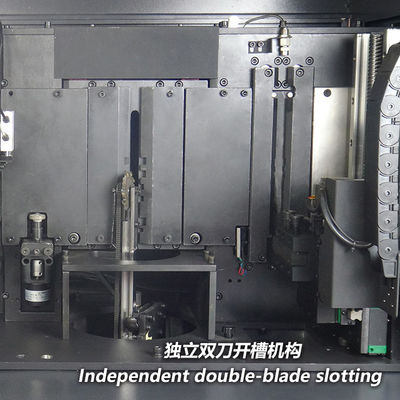

Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.

Main Features

Steel coupling ensures the bending molding and bending speed.

Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 8
Supporting Facility
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 9
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 10
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 11

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 12

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 13

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 14
Ejon ET20 Automatic Stainless Steel Bender for 3D Signage Advertising Board Productio 15
* Size : 1410*780*1600mm
* Weight : 750KG
* Packaging details : The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
