Ejon Y6 LED Acrylic Letter Signage Bender for Automatic Channel Letter Bending Machine

Large Image : Ejon Y6 LED Acrylic Letter Signage Bender for Automatic Channel Letter Bending Machine

Product Details:

Place of Origin:	Tianjin, China
Brand Name:	EJON

Payment & Shipping Terms:

Price:	$4,800.00/sets 1-2 sets
Packaging Details:	wooden case
Supply Ability:	2000 Set/Sets per Year

Contact Now

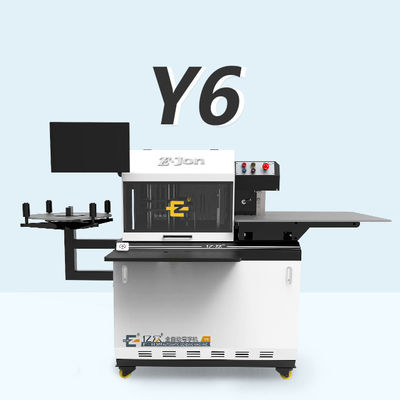

Ejon Y6 LED Acrylic Letter Signage Bender for Automatic Channel Letter Bending Machine

Description

Condition:	New	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Marketing Type:	Hot Product 2021
Warranty Of Core Components:	1 Year	Core Components:	Motor
Material / Metal Processed:	Stainless Steel,Galvanized Sheet,Aluminum Plate	Automation:	Automatic
Year:	2021	Warranty:	1 Year
Weight (KG):	350	Key Selling Points:	Easy To Operate
Applicable Industries:	Machinery Repair Shops, Manufacturing Plant, Printing Shops, Energy & Mining, Advertising Company	Showroom Location:	Egypt, Turkey, United States, Viet Nam, Brazil, Russia, Spain, Thailand, South Korea
Height:	10-120mm	Thickness:	0.4-1.2mm
Material:	Stainless Steel,galvanized Plate,flat Aluminum	Min.Bending Angle:	R6
Control System:	4 Axis Control System	Slotting Method:	Plane Cutter
Bending Method:	Double-bends Alternate Bending	Fedding Method:	Rolling Continuous Feeding
Power:	AC220V,50Hz,2.0Kw	Raw Material:	Sheet / Plate Rolling
Port:	Tianjin

Product Description

Ejon Y6 LED acrylic letter signage bender automatic channel letter bending machine aluminum sheet folding machine

EJON Y6 120mm flat stainless steel,iron ,flat aluminium bending machine Sign making equipment stainless steel metal plate CNC channel Letters bending machine.

Multifunction channel letter bending machine,using rolling continuous feeding structure,The air pressure can be adjusted according to the materials thickness avoid indentation and sliding of material. The detection system of encoder and software combination detects the feeding accuracy in real time.

Double bends alternate bending structure, adopts the bends structure cast by ductile iron, which has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, which effectively improves the positioning accuracy and the ability of high-speed bending. It is a versatile bending machine that truly realizes precise slotting and bending of various materials such as aluminum plate, stainless steel and galvanized plate.

SPECIFICATIONS
Feeding system	Rolling continuous feeding system
Slotting System	Plane cutter
Bending System	Double blade alternate bending system
Suitable Material	Stainless steel, Galvanized steel, Aluminum plate
Material Height	Stainless steel,Galvanized steel,Aluminum plate:20~120mm
Material Thickness	0.4~1.2mm
Accuracy	±0.1mm
Min. Bending Angle	R6
File Format	Dxf.Plt.Ai
Power	AC220V,50Hz,2.0Kw
Control System	4 axis control system (2 axis servo control)

Main Features

1) The feeding support adopts an integral casting structure, which effectively avoids the deformation in the feeding process and ensures the stability of feeding.

2) The bending system adopts structural castings, integral casting, to ensure the stability of high-speed bending.

3) The slotting and bending adopt 750W high-power servo motor which accurate positioning, fast response, stable operation, and effectively improve the system's rapidity and stability.

Detailed Images

Machine Parts

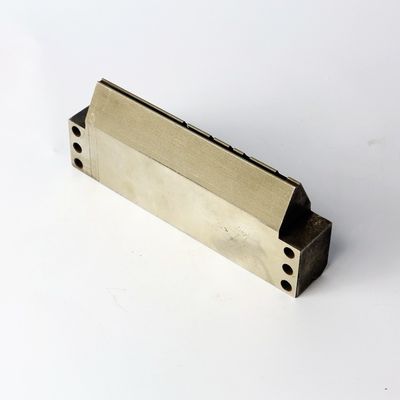

The casting on Clamping increases the grasping force, meanwhile does not scratch the material

Main Features

The encoder module is the key component of the the relation equipment precision , and the precision casting is used to ensure the performance of the high precision encoder.

Supporting Facility

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

File Format

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

* Size：1200*720*1480mm

* Weight：400KG

* Packaging details：The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.
