Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage

All Products

Steel Deburring Machine

(27)

Channel Letter Equipment

(291)

Channel Letter Bending Machine

(161)

Laser Welder Machine

(6)

Metal Sign Grinding Machine

(1)

CNC Letter Slotting Machine

(1)

CNC Laser Cutting Machine

(1)

CNC Router Machine

(1)

3D Printer Machine

(1)
Certification
China Tianjin Ejon Flying Science And Technology Co., Ltd. certification
China Tianjin Ejon Flying Science And Technology Co., Ltd. certification
I'm Online Chat Now

Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage

Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage

Large Image :  Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage

Product Details:
Place of Origin: Tianjin, China
Brand Name: EJON
Payment & Shipping Terms:
Price: $5,500.00/sets 1-2 sets
Packaging Details: export wooden case
Supply Ability: 5000 Set/Sets per Year
Contact Now

Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage

Description
Condition: New Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2021
Warranty Of Core Components: 1 Year Core Components: Motor
Material / Metal Processed: Aluminum, Aluminum Profile,aluminum Plate,aluminum Sheet Automation: Automatic
Year: 2021 Warranty: 1 Year
Weight (KG): 200 Key Selling Points: High-accuracy
Applicable Industries: Machinery Repair Shops, Advertising Company, Building Material Shops Showroom Location: Egypt, Viet Nam, Russia, Spain, Thailand, South Korea
Machine Type: Roller-Bending Machine Extra Services: Slotting & Notching
Weight: 200KG Thickness: 0.4-1.2mm
Height: 20-130mm Min.Bending Angle: R6
Suitable Material: Aluminum Plate And Profile Control System: 4 Axis Control System
Slotting Method: Milling Wheel Cutter Feeding Method: Rolling Continuous Feeding
Port: Tianjin

Product Description
Ejon E9 automatic 3D signs channel letter bending machine for advertising LED signage 20-130mm aluminum plate press brake
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 0

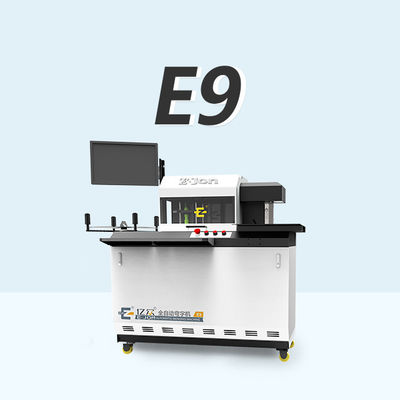

Ejon E9 is an aluminum strip automatic channel letter bending machine.

Upgraded aluminum profile bending machine equipped with high-power motor and driver to ensure the stability of feeding, slotting and bending. The self-developed software system, with its own material database and high arcing. Double bends alternate bending structure, adopts the bends structure cast by ductile iron, which has good shock absorption and high structural strength, reduces the number of parts and components, equipped with high-power servo motor, accurate positioning, fast response, smooth operation, effectively improves the positioning accuracy and the stability of high-speed bending. The minimum forming Angle up to R6.
SPECIFICATIONS
Feeding System
Roller circulation feeding system
Slotting System
Alloy milling cutter slotting system
Bending System
Double bends bending system
Suitable Material
Flat Aluminum , Aluminium profile,Trim cap aluminum, Customized for different Materials
Material Height
20~130mm

Material Thickness
0.4~1.2mm
Control System
4 axis control system
Min. Bending Angle
R6
File Format
Dxf.Plt.
Power
AC220V,50Hz,2.0Kw
Total Weight
200KG
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 1
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 2
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 3
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 4
Detailed Images

Feeding system

Alloy milling cutter slotting system for Aluminum plate and Aluminum profiles.

The feeding support adopts an integral casting structure,which effectively avoids the deformation generated during the feeding and ensures the stability of feeding.

Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 5
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 6

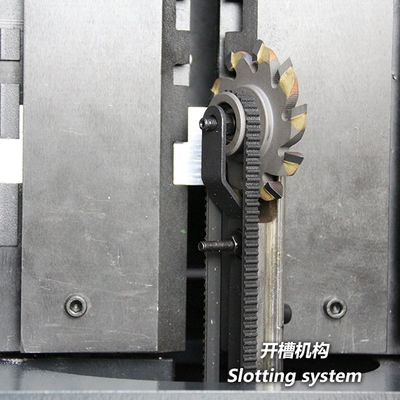

Slotting sysytem

The motors ensure fast and accurate processing.
The slotting system can realize the from and back double sides slotting

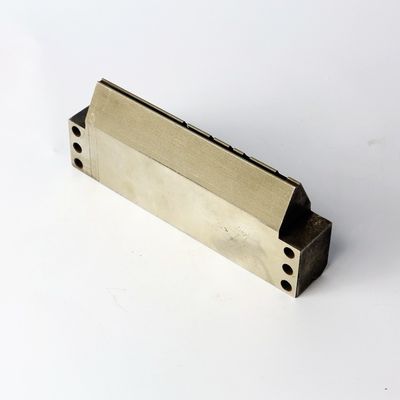

Bending system

The bending system adopts structural casting and is intergrally cast to ensure the stability of high-speed bending.


Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 7
Supporting Facility
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 8
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 9
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 10

Computer

To use the device, you need to install the control card in your computer and then connect to the bending machine and install the software.Computer configuration : XP system or window7 32-bit system, and requires a PCI card slot to install the control card.

Pump

The use of equipment should be equipped with air compressor, we suggest that the selection of more than 4kw, the gas flow is 0.6m³/Min.

Title goes here.

The software of bending machine is self-developed. Import file format supports .Dxf.Plt .AI We recommend using Coredraw or adobe illustrator to complete the file after the export file to.Dxf.Plt.Ai format. Then open the operating software, select the document.

Our Service
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 11

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 12

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 13
Ejon E9 Automatic 3D Signs Channel Letter Bending Machine for Advertising LED Signage 14
* Size : 1220*660*1290mm
* Weight : 250KG
* Packaging details : The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.

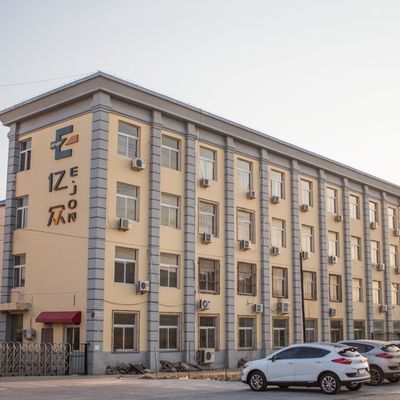

About us
